9mm O Flat Shaft Auto Car Door Lock Mirror FC280PC/FC-280 8-16V
30 were available / new
Indicative market price:
R199.00
R150.00
25% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

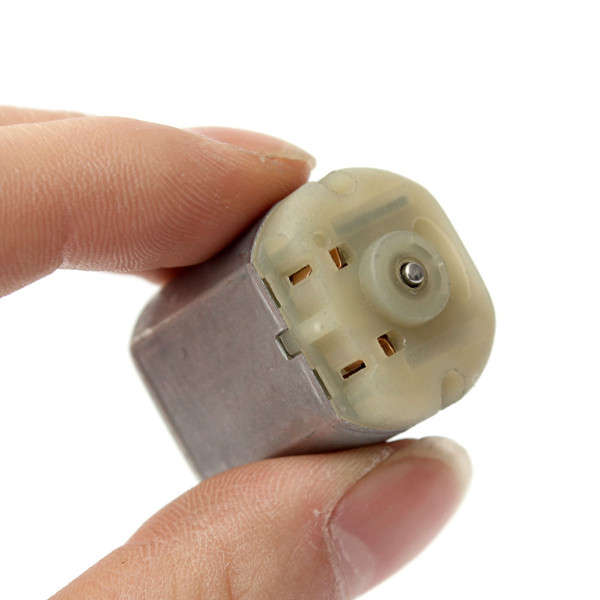

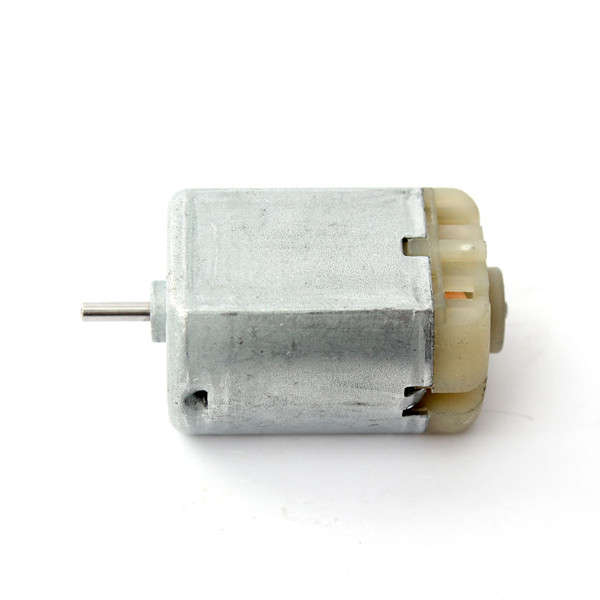

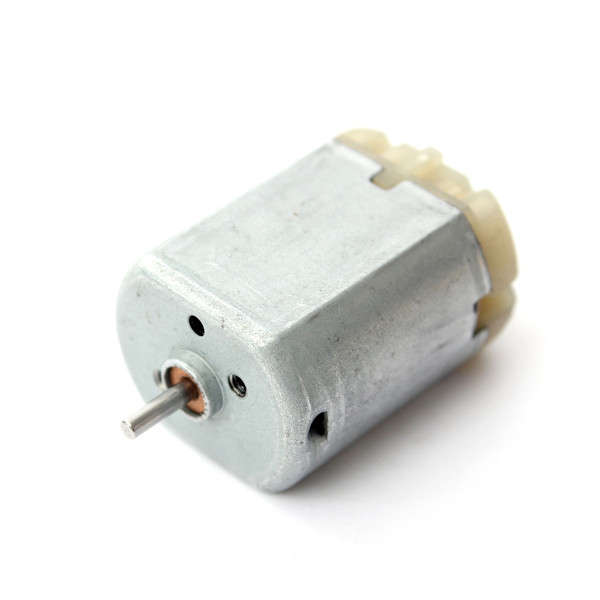

12500RPM 9mm O Flat Shaft Auto Motor Car Door Lock Mirror FC280PC/FC-280 8-16V Feature: Push-in style terminals Electric motor used in many cars for operating door locks and mirrors Can be operated in either direction, simply reverse power supply polarity Specification: MPN: FC-280PC-22125 Model: FC-280 Dimensions (not including shaft): 30.5mm x 24.2mm x 18.3mm D-Type (flat on one side) shaft dimensions: 9mm long Operates on 12 VDC nominal No load speed: 13,100 RPM No load current: 110 mA Recommended operating voltage range 8-16V DC Quantity: 1 pc Full load (maximum efficiency @ 12VDC) performance characteristics: Speed: 12,500 RPM Current: 780 mA Torque: 49 g-cm (4.76 mN-m) Power output: 5.71 Watts Stall torque: 393 g-cm (38.6 mN-m) Stall current: 5.56 Amperes Package Included: 1 x 9mm O Flat Shaft Auto Motor
