9pcs 2-20mm ER32 Precision Spring Collet for CNC Milling Lathe Tool

20 available / new

R1,233.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3503

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643371783

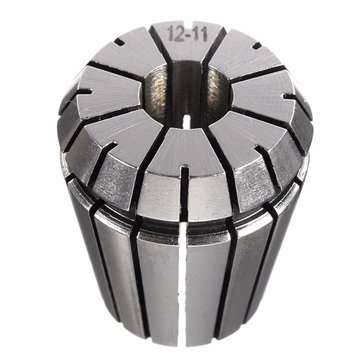

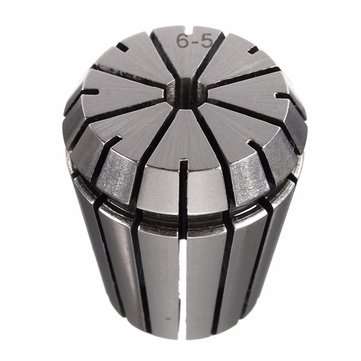

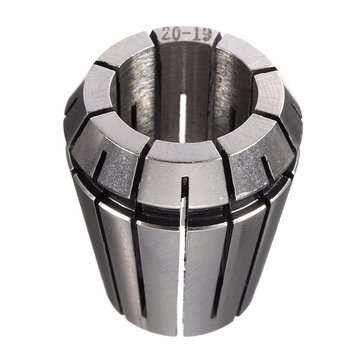

Description: 9pcs 2-20mm ER32 Precision Spring Collet for CNC Milling Lathe Tool Specifications: Material: high grade spring steel Type: ER32 Length: 40mm Diameter: 33mm Accuracy: 0.015MM Inner diameter: 2 /4 /6 /8 /10 /12 /16 /18 /20mm Quantity: 9pcs Feature: Available in the BT ER extension rod handle, can be used for clamping drill, milling cutter, straight shank tool. Performance stability, high accuracy Adopt high grade spring steel, durable and wear-resistant. Large holding force, wide clamping range. Spiral collets are widely used in boring, milling, drilling, tapping, grinding, and engraving, and so on. Widely used in boring, milling, drilling, tapping, CNC, sculpture and other processing operations, also can be supported used with the holder of CNC tool. The correct methods of mounting the collet nut : 1. Put the chuck into the pressure cap, gently turn the clamp spring, when eccentric portion of the pressure cap recessed clamp spring. Along the arrow direction and use equal force to push clamp spring, can mount pressure cap. 2. Put the clamp spring and cap all together installed on the chuck body or spindle. Insert into the clamping hole after wipe the cylindrical shank, use a wrench to tighten the pressure cap, until clip firmly the tool before use. (Note : Avoid fastening pressure cap that not installed tool, to avoid damage the clamp spring) 3. Use a wrench to loosen the pressure cap and took out the chuck or tool, remove the tool. Along the direction of the arrow push out the clamp spring. Then according to need replace other clamp spring. Package Included: 1 x (9pcs) ER32 Precision Spring Collet More Details:
