9V_12V_24V to USB Converter 5V 3A | DC-DC Step Down

9V-24V to USB Converter

This unit is recommended as a more convenient alternative to Power our 'Smart Gate Garage Door Opener Switch' (the opener includes an adaptor which requires 230VAC and therefore a qualified electrician). By adding this DC-DC converter you can DIY the installation as you need only connect to the 24V DC available on the Garage Door control board. Note: Gates normally need 12V DC check your control board model to see if it has 12 or 24V DC outputs.

Suitable for any application where a USB charge port is required cars, trucks, homes, offices & factories etc. Be sure to "INSULATE' the PCB. Heat shrink is preferred but an enclosure or electrical insulation tape is also suitable.

Specifications

• 12VDC to 5VDC via USB female connector
• Input Voltage: 8-40V DC (via positive and negative contact points on the PCB)
• Output Voltage: 5V via  USB female
• Output Current: 3A
• Output Power: 15W
• Efficiency 97%
• Voltage regulation rate: Operating temperature: -20°C to +80°C

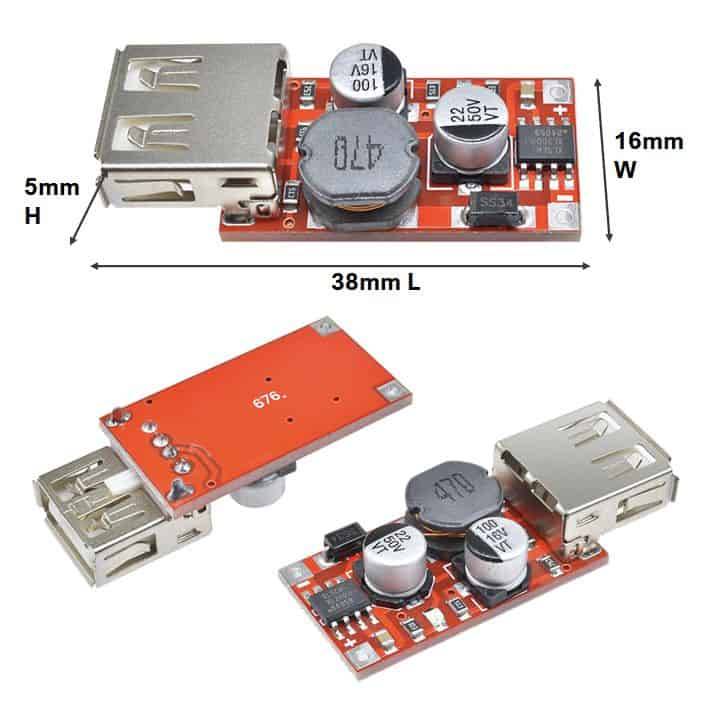

• Dimensions PCB: 38 x 16 x 5 (L x W x H in mm)

Suitable for using Smart Gate Garage Door Opener Switch for:

1. Gates: normally have 12VDC (1x 12v Battery) - to buy [click here]
2. Garage Doors: normally have 24V DC (2x 12V batteries) - this product you are viewing now
3. Note New Centurion D5 EVO Smart is 24V = 2x 12V batteries

Typical uses (not limited to)

• DIY Electronics Projects:
  • Powering Microcontrollers
  • Charging Devices
  • Lighting
• Automotive Applications:
  • In-Car Charging
  • Powering Accessories
• Security Systems:
  • Powering Wireless Devices

What's in the box?

• 1 x 9V-24V to USB Converter
