9V_12V_24V to USB Converter 5V 3A | DC-DC suitable for Garage Doors

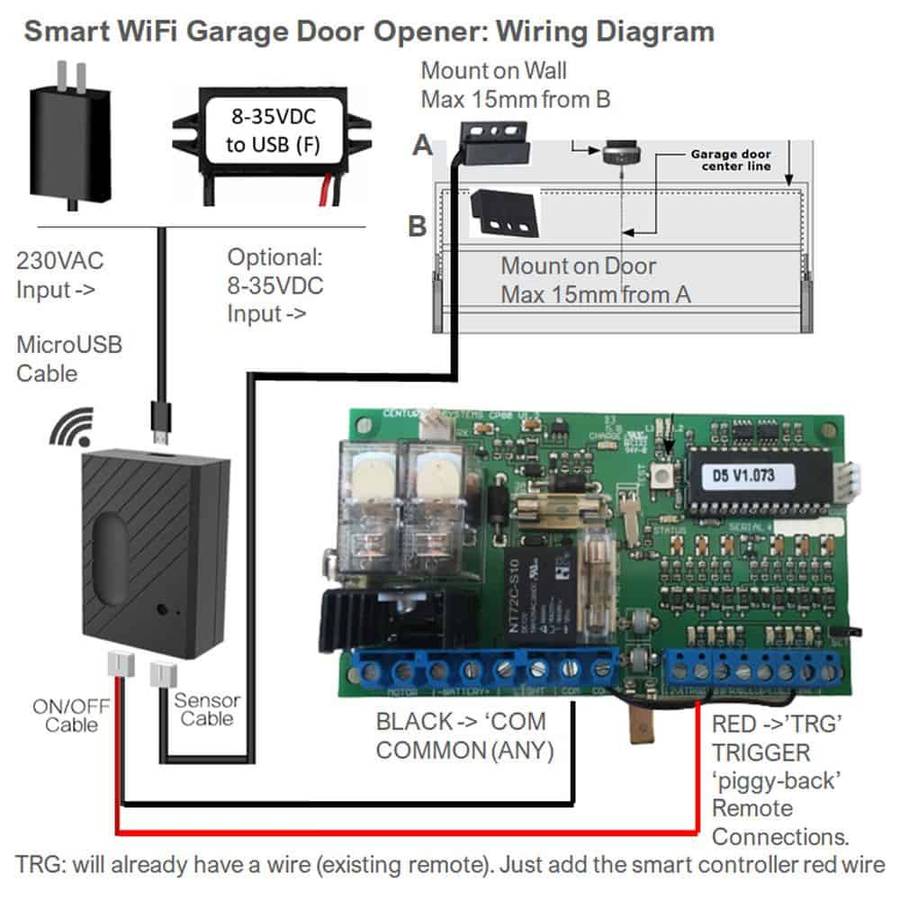

DC to DC step down converter from 8-35V DC to 5v DC via a USB (female) cable. This unit is recommended as a more convenient alternative to Power our 'Smart Gate Garage Door Opener Switch' (the opener includes a adaptor which requires 230VAC and therefore a qualified electrician). By adding this DC-DC converter you can DIY the installation as you need only connect to the 24V DC available on the Garage Door control board. Note: Gates normally need 12V DC check your control board model to check if it has 12 or 24V DC outputs. 12VDC to 5VDC via USB female connector with an enclosed waterproof housing Input Voltage: 8-35V DC (via red=positive and black=negative leads) Output Voltage : 5V (Volts) via lead with USB female Output Current: 3A (Amperes) Output Power:15W (Watts) Efficiency 97% Voltage regulation rate: Operating temperature: -20 to +80 (degrees Celsius) Dimensions Housing: L 63mm x W 27mm x H 14mm Suitable for use Smart Gate Garage Door Opener Switch for:

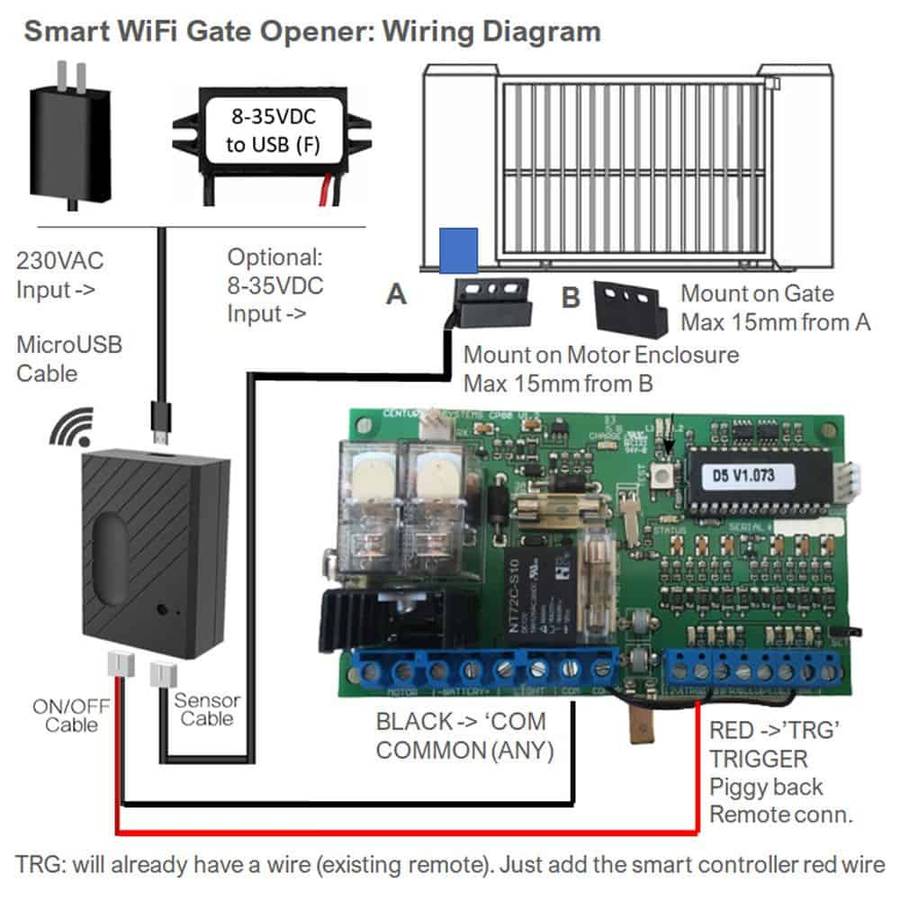

1. Gates: normally have 12VDC (1x 12v Battery) - to buy [click here]
2. Garage Doors: normally have 24V DC (2x 12V batteries) - this product you are viewing now
3. Note New Centurion D5 EVO Smart is 24V = 2x 12V batteries

What's in the box? 1 x 8-35V to USB Converter
