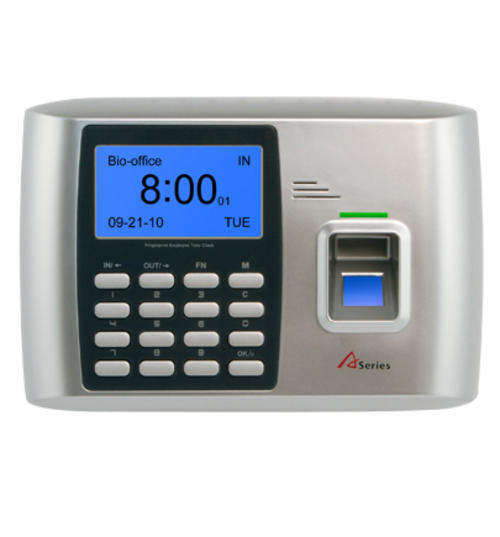

A300 Series Fingerprint & RFID Employee Time Clock

A300 Series Fingerprint & RFID Employee Time Clock

Accurate, Advanced, Affordable...

Super military high speed CPU
Super long life keypad
Maintenance free fingerprint sensor

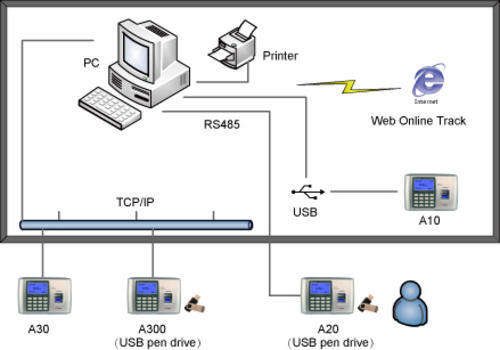

Multiple communication methods: USB Device, USB Host, TCP/IP, RS232(optional)

Features:

● Texas Instruments 32-bit high speed CPU of low power consumption
● BioNANO V10 core fingerprint algorithm of high speed and stability
● New generation waterproof, dust proof and scratch proof AFOS300 fingerprint sensor
● User name display and human voice prompt
● Realtime data transfer and WEB online tracking
● USB Plug & Play connection. No driver needed
● TCP/IP connectivity
● USB pen drive data download
● Employee authentication methods: ID + password, ID + fingerprint, fingerprint + password, fingerprint only
● Fast fingerprint scan in less than 0.5 second
● 16 different customizable time and attendance status
● 6-digit work code feature to calculate different job cost
● Support multiple display and software language
● A300: USB Device+USB Host+TCP/IP

Parameters:

Sensor: AFOS300 Optical Sensor
Sensor Wake Up Mode: Press any key
Algorithm: BioNANO V10
LCD: 128*64 Blue LCD
LED: Green, Red
Function Key: Fn X 1
Card Reader Module: Optional 125KHZ EM RFID, 13.56MHZ Mifare, 125KHZ HID
Operating Voltage: DC 5V
Color: Argent
Case Material: ABS Plastic
Processor: 32-bit ARM MCU
Communication Interface: USB Device, USB Host, TCP/IP, optional RS232
Fingerprint Capacity: 2000
Log Capacity: 50000
Identification Mode: FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Registration Mode: Fingerprint, Password, Card
FRR: 0.001%
FAR: 0.00001%
Working Current: 0.2A-0.5A
Sleeping Current: 0.2A
ESD Tolerance: >15000V
Scan Area: 22mm*18mm
Resolution: 500 DPI
Identification Time: <0.5 Sec
Size: 200(w)*140(h)*38(d)mm
Temperature: -10~40 degrees Celsius
Humidity: 20%-80%
ID Length: 6-digit
Status: IN, Break, OUT
Self-defined Status: 16 different customizable time attendance status
Work code: 6-digit
Voice Prompt: Voice
Name Display: 9-digit
Password Length: 6-digit
