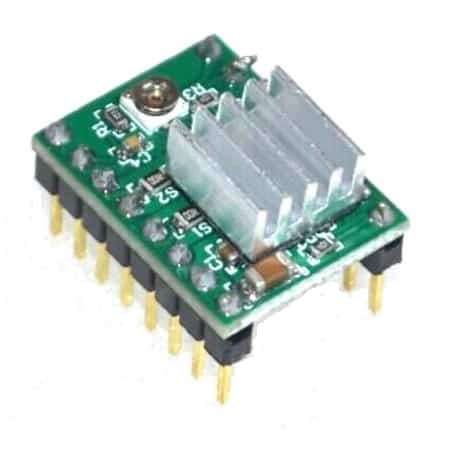

A4988 Stepper Motor Driver Module for RepRap

A4988 Stepper Motor Driver Module for RepRap

New 3 available
Only 3 left – grab it before it’s gone!
R91.22
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
ACT-025
Bob Shop ID
617872840

A4988 Stepper Motor Driver Module

Adjusting the stepper driver current
See these instructions: Pololu_stepper_driver_board#Tuning_motor_current.

A4988 DRV8825
Max. theoretical current 1.5A 2.5A
Max. microsteps 16 32
PCB color Green / Red Purple
Stepper current adjust. trimpot Yes, near Dir pin Yes, near En pin
Typical Rs value 0.05 Ohm or
0.1 Ohm or
0.2 Ohm
0.1 Ohm
Vref formula (*) I_TripMax= Vref/(8*Rs) I_TripMax= Vref/(5*Rs)
Thermal Overload Protection (**) Yes Yes
PCB layers 2 4
Small heatsink included (***) Almost always Sometimes not
Active cooling required? Recommended Recommended
IC packaging 5x5mm 28-lead QFN 9.7x6.4mm 28HTSSOP


Specs for A4988 Stepper Motor Driver Module

The pdf file below contains the complete specifications for this driver module.

A4988-Datasheet

Packing list: 1 x stepper driver, 1 x heat sink
