Features:
1. 1080P resolution, low illumination, clear and delicate images

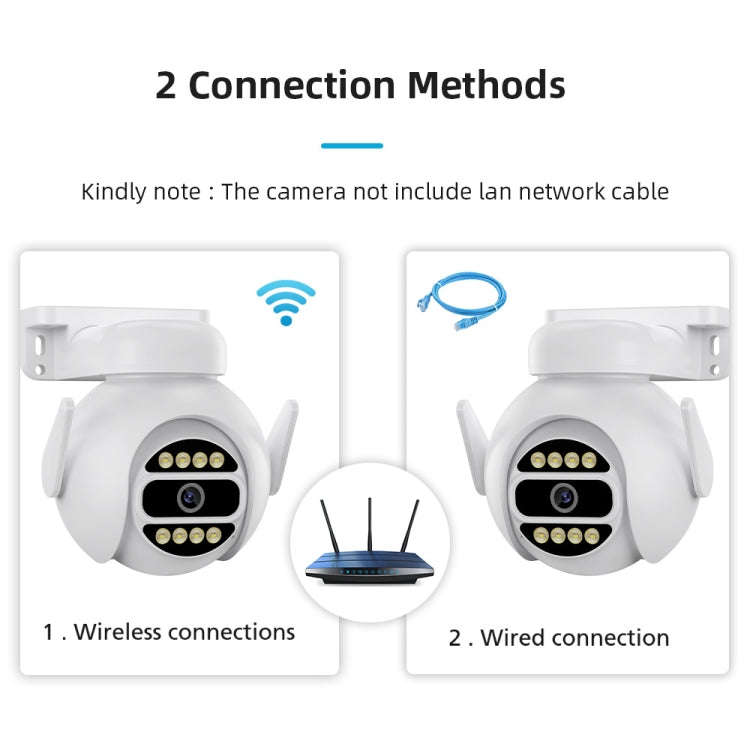

2. Support wired and wireless network connection
3. Support dual light, Support human figure, intelligence (line mixing, area care, etc.)
4. Support 2D/3D noise reduction, digital wide dynamic range;
5. Advanced H.265AI video compression technology, ultra-low bit rate, high-definition picture quality
6. Lightning protection, in line with national standard GB/T17626.5, international standard IEC61000-4-5
7. Support ONVIF protocol, can access third-party backend/platform
8. Support mobile monitoring (iOS, Android)
9. Support a variety of cloud technologies, realize network penetration, front-end and back-end docking, alarm information push to mobile phones and other functions
Specifications:
1. System structure: Dual-core 32-bit DSP (XM530), pure hardware compression, watchdog
2. Sensor: 2 million 1/2.8-inch SC223AI high-performance CMOS sensor
3. Min. Illumination: Color: 0.01Lux (F1.2,AGC ON) 0 Lux with IR
4. Monochrome: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR
5. Video processing: H.265AI encoding, dual stream, AVI format stream 0.1M~10Mpbs adjustable frame rate 1~30 frames/second adjustable
6. Image output: main stream: 1920x1080 12fps; sub stream: 640x360 12fps
7. Shutter: 1/50(1/60) second to 1/10000 second

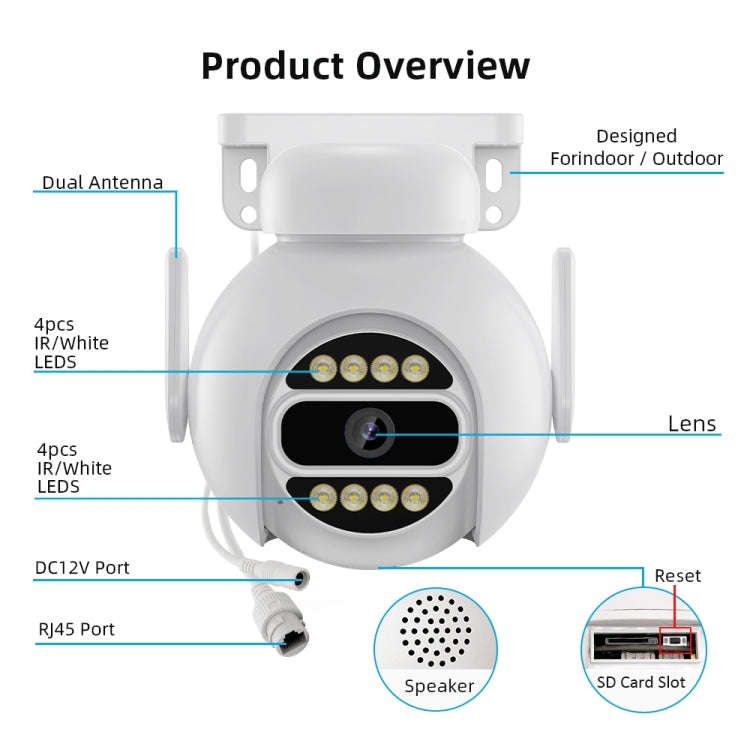

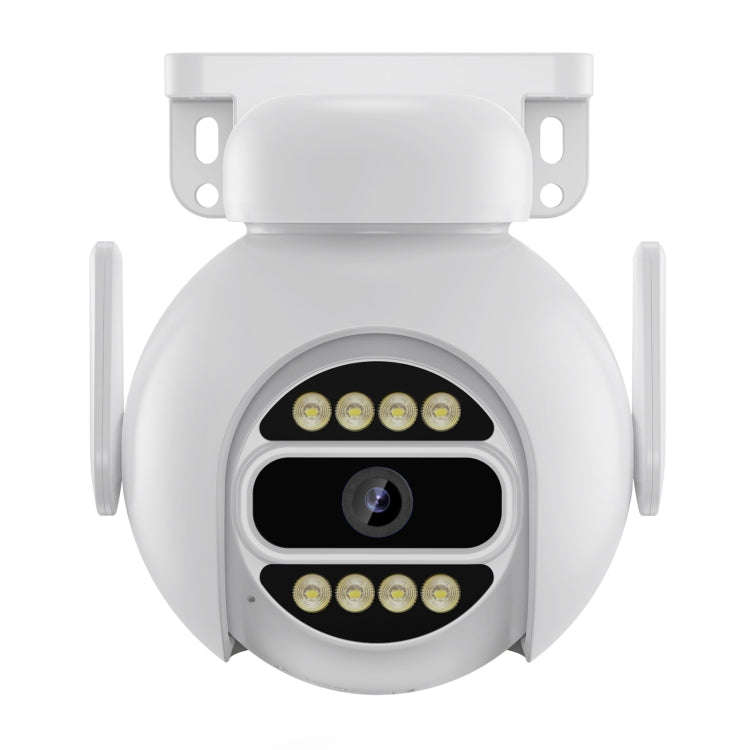

8. LED lights: 8PCS (2 infrared, 2 white, 4 dual-core lamps)
9. Day and night conversion mode: Support IR-CUT
10. Noise reduction: Support 2D/3D noise reduction
11. Wide dynamic range: Support wide dynamic range
12. Auto aperture: No
13. Audio processing: G.711A codec standard, Support two-way voice intercom function, Support audio and video synchronization
14. Audio interface: 1 channel input, level 2Vp-p, impedance 1kohms, 1 channel output, impedance 16ohms, 30mw output power
15. Network interface: 1 RJ45 Ethernet interface, 10/100M self-adaptive
16. Expansion interface: no
17. Signal interface: 1 photoresistor interface, 1 IR-CUT drive interface, Support the linkage between photoresistor input signal and IR-CUT, infrared light
18. PTZ interface: 1 horizontal motor interface, 1 vertical motor interface
19. Alarm I/O: None
20. Network interface: 1 WIFI antenna interface, Support wireless network connection
21. Reset button interface: Support one-button reset function
22. Storage method: Local TF card, up to 128GB (not included); cloud storage
23. Reliability: Comprehensive lightning protection, in line with national and international standards; 7 x 24 hours 65 degrees Celsius high temperature test is stable and reliable (including complete machine test)
24. Intelligent analysis: Support humanoid detection, Support customization of other intelligent functions
25. Business functions: Support remote monitoring of mobile phone clients; Support message push after humanoid detection alarm; Support MJPEG capture;
26. ONVIF: Support
27. Mobile phone monitoring: Support mobile phone monitoring (iOS, Android)

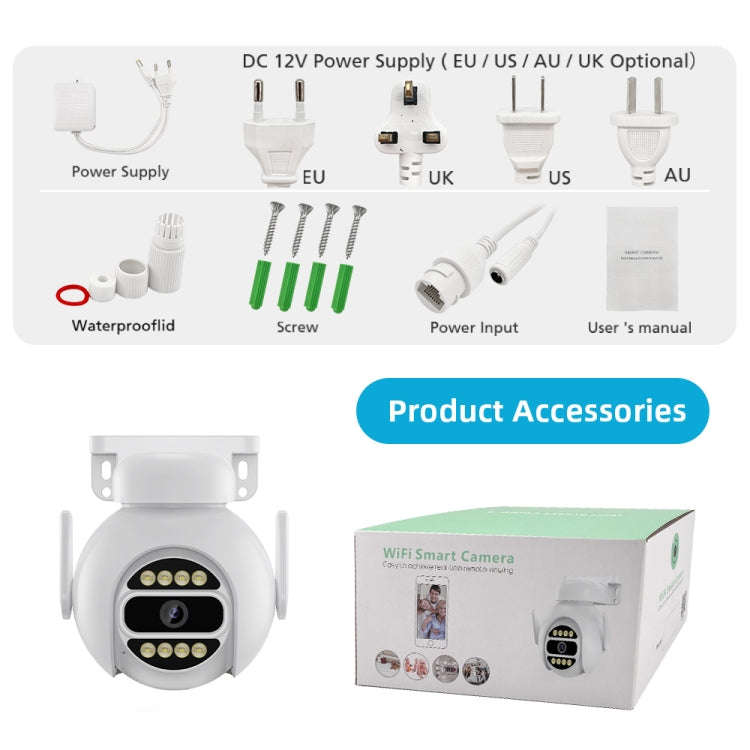

28. Power supply: DC12V
