Description: All parts and components of this product are original authentic, unpretentious and pure in quality; using high-quality original parts not only guarantees safety and quality, but also has a long service life, and more importantly, it is a strong guarantee that the actual performance can reach the design goals.
Features: 1.JRC5532 is adopted. 2. The main circuit of electrolytic capacitor signal adopts famous brand, and the main filter capacitor adopts ELNA680UF*2+1000UF*6, ensuring a strong and continuous power support. 3. The resistance adopts five-ring metal resistance, and the main circuit adopts the five-ring metal film resistance with the precision ±1%, which ensures a good signal-to-noise ratio of the whole machine. 4. The left and right channel input coupling capacitors are coupled with WIMA2.2UF, making the high pitch clearer and the sound sweeter! The combination of high and low sounds is more perfect! 5. PCB adopts 1.6mm thick double-sided plate, 2.0 Oz copper thickness and whole process of spray tin to ensure good pability of current. First cl PCB quality. 6, the use of fully enclosed dustproof potentiometer, more stable performance, more durable than ordinary potentiometer! 7. The wiring layout of the whole circuit board is quite rigorous and reasonable. Stable and reliable operation, steady and solid low frequency, excellent SIGNal-to-noise ratio, wide dynamic range; Clear details, excellent transient response, all kinds of music can be played at ease, in the family playback environment has a very good performance. 8. The front stage is equipped with a direct switch, and the board is equipped with an op-Amp socket, which can be changed and upgraded freely according to your own hobbies. It is flexible and convenient to use to meet different listening feelings.

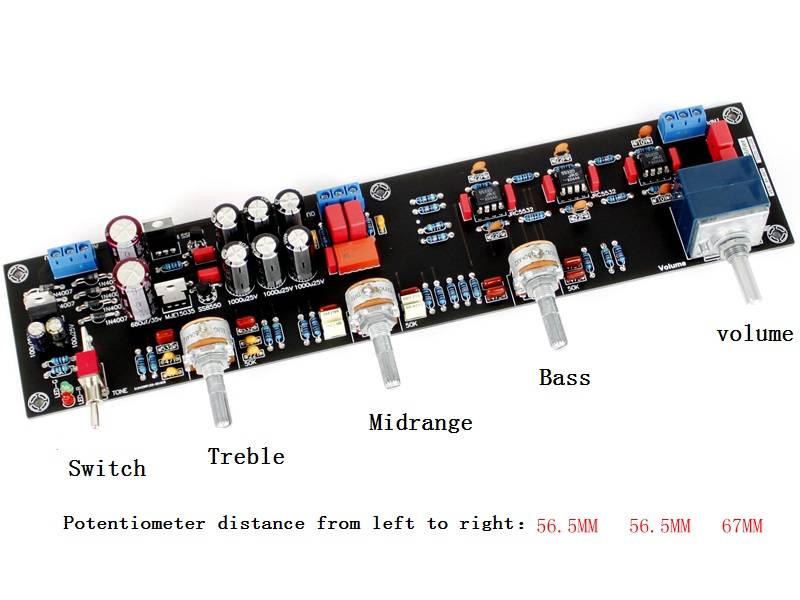

Specification: Supply voltage: AC 12V-18V. Color: black Material: ABS PCB size: 270*60mm (width without potentiometer handle length) Size: 56.5x56.5x67MM
Package included: 1 x Tone board
