Aavara PW120 / PB120 Short Throw Projector Mount - Wall Boom Type
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Short Throw Projector Mount, featuring focusing for 0.6 Short ratio with distance from the wall max. to 1265 mm and fine tune solution. Micro adjustment for Tilt, Swivel, Horizontal movement for best alignment of required distance.
In-Tube Management available, Aluminium Structure and universal mounting diameter to meet most short throw projects brands in the market.

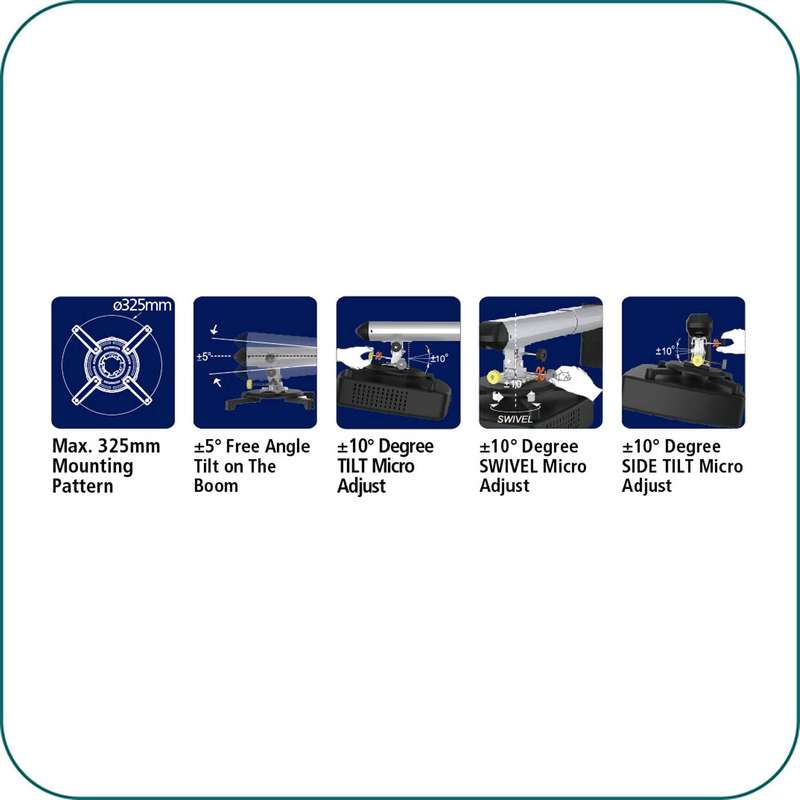

FEATURES
Designed for Wall Boom Short Throw Projector

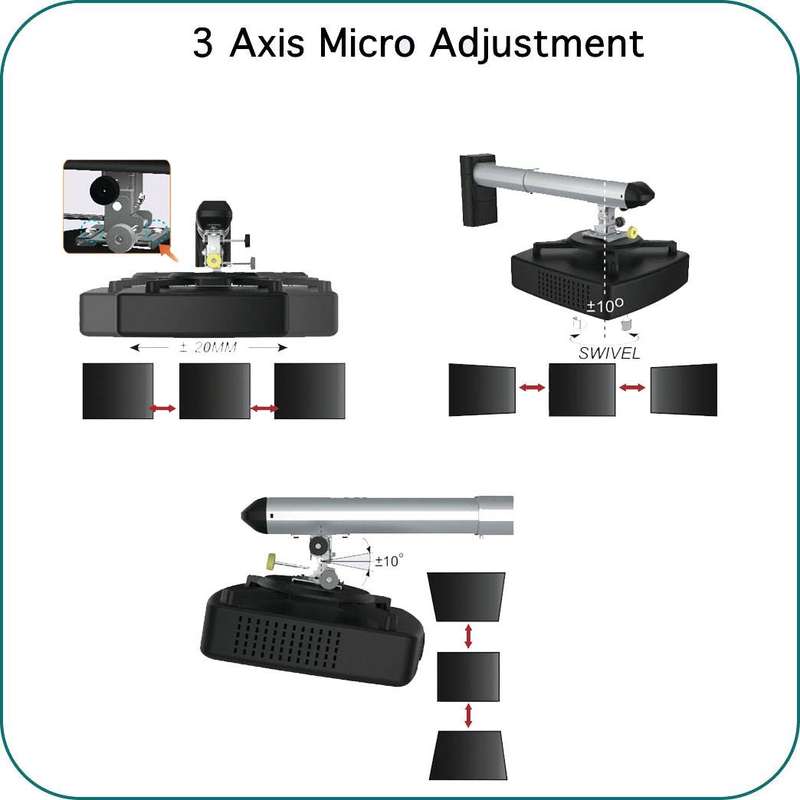

Horizontal Lateral Movement +/-20 mm /0.79"
Projector Vertical & Horizontal Tilt & Swivel +/-10
Wall Mount Tilt +/-5
Compatible with Diameter 325 mm
Easy to Install
Max. Distance to Wall 1270 mm /26.38"
Smart Cable Management
SPECS.
Load Capacity:12 kg /26.5 lbs
Mounting Pattern:Diameter 325 mm

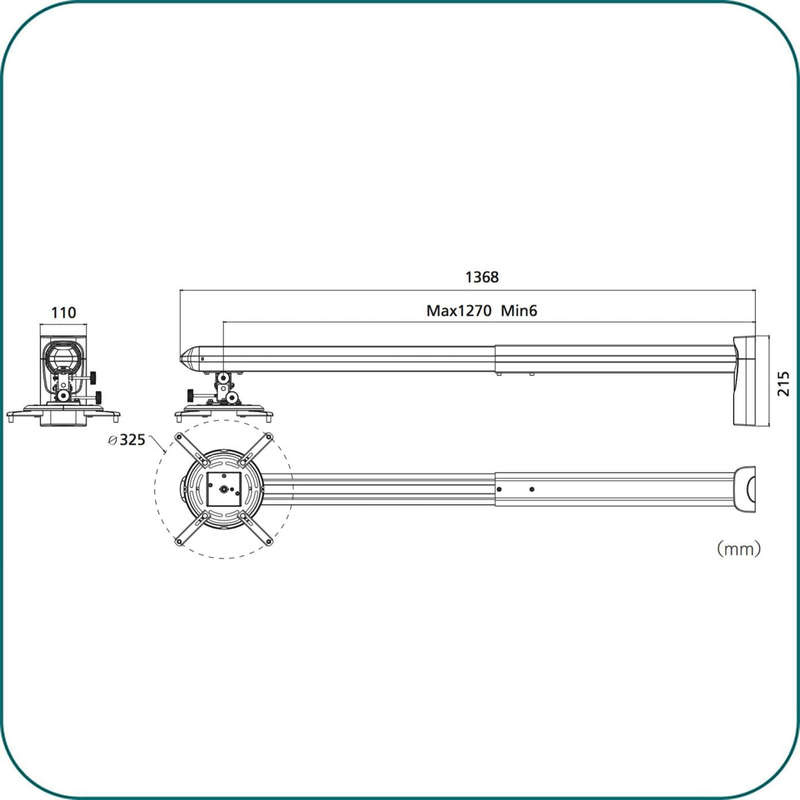

Dimension:352.5*215*1446 mm/ 13.88" x 8.47" x 56.93"
Material:Steel/Aluminum Alloy/Plastic
Gross Weight:4.03 kg / 8.89 lbs
Screw Type:M3,M4,M5,M6
Projector Tilt & Swivel:+/-10
Wall Mount Tilt:+/-5
Max. Distance to Wall:1270 mm /26.38"
Min. Distance to Wall: 670mm/26.38"
Smart Cable Management: Yes
