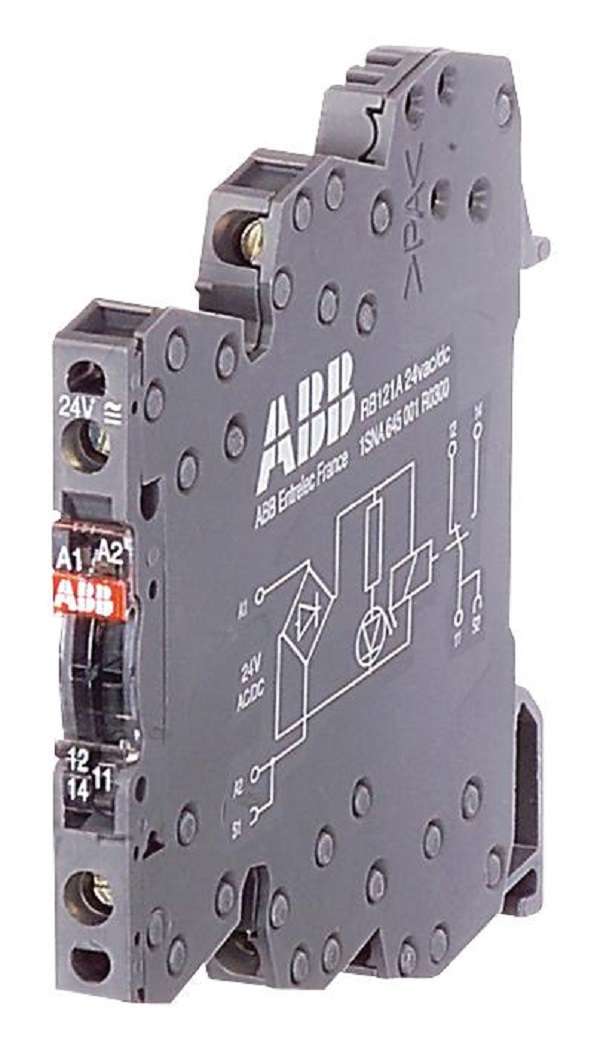

Abb (1SNA645001R0300) General Purpose Relay, Interface, SPDT, 24 V, 6 A

Product InformationContact Configuration: SPDTCoil Voltage: 24VContact Current: 6AProduct Range: R600Relay Mounting: DIN RailCoil Type: AC / DCContact Voltage VAC: 250VACRelay Terminals: ScrewContact Voltage VDC: -Coil Resistance: -Approvals & Standards: CE, UL, VDEProduct OverviewThe R600 series Interface relay with output contacts protected by built-in RCcircuit, which result in increased contact life. The standard range is availablewith screw or spring-type terminals. It is available with visible or coveredswitch on the front of the unit, for the configuration of manual or automaticactuation. It has connection for jumper bar, except 2c/o devices and somediscontinued devices. Interface relay is electro-mechanic and electronic inputand output modules for electrical isolation, levelling, noise suppression orsignal amplification between control unit and process. Boxed interface relay isused for electrical isolation, amplification and signal matching between theelectronic controlling, PLC (programmable logic controller), PC or field bussystems and the sensor/actuator level. The compact design and differentconnection terminal possibilities optimize the panel installation.Devices with leakage current protection on the input sideLED for the indication of the operational state8 Different rated control supply voltagesApplicationsIndustrial, Sensing & Instrumentation
