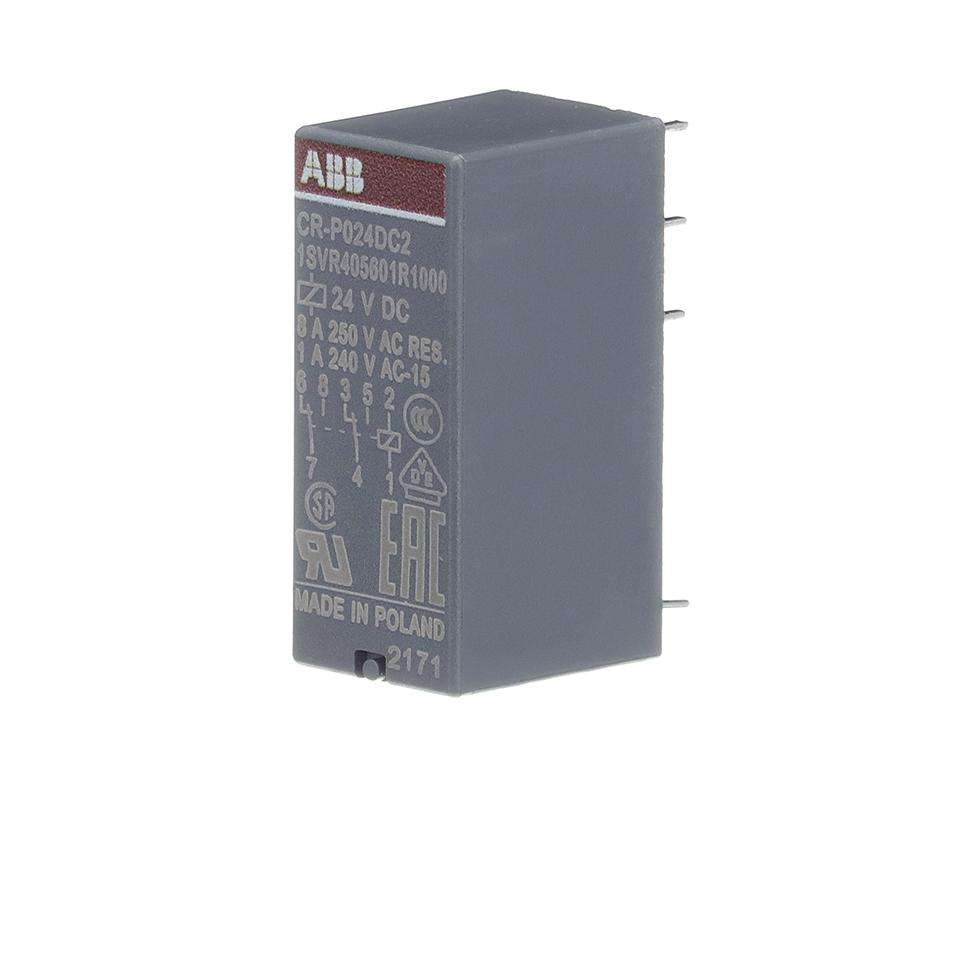

Abb (1SVR405601R1000) Power Relay, Interface, DPDT, 24 VDC, 8 A, CR-P

Product InformationContact Configuration: DPDTCoil Voltage: 24VDCContact Current: 8AProduct Range: CR-PRelay Mounting: SocketCoil Type: Non LatchingContact Voltage VAC: 250VRelay Terminals: Quick ConnectContact Voltage VDC: -Contact Material: Silver NickelCoil Resistance: 360ohmApprovals & Standards: CSA, ULProduct OverviewThe CR-P024DC2 pluggable interface relay is an accessory of ABB's CR-P (pcb)relay range for connecting the electronic control level, e.g. PLC, with thelevel of the sensors and actuators. The interface relays take on variousfunctions: Switching DC or AC voltage loads with different ohmic, inductive andcapacitive components, switching in the voltage range from a few mV to 250V,switching in the current range from a few mA to 16A, amplifying weak controlsignals, electrical isolation of control and load circuits as well as signalmultiplication. The CR-P series has 9 different coil voltages with 1-2changeover contacts. Two base variants are offered: standard base and logicalbase. Plug-in function modules such as reverse polarity protection,free-wheeling diode, LED module, RC elements, overvoltage protection or timemodules expand the areas of application of the plug-in circuit board relays.Standard sockets, logic sockets, pluggable function modules, holder and markerare available as accessories.The CR-P024DC2 pluggable interface relay is a part of ABB's CR-range. The highquality material provides a higher mechanical and electrical lifetimeOperational benefits: In the view of longer periods of service, the down time ofthe application is reduced which results in a saving of costs and timeCompact design: With their slim width the CR series reduce its space insideswitch boards, so they will become more compact. Different accessories areavailableSelected prodcuts are available with different connection terminals (screw andspring connection) and thus offer the ideal solutions for your requirementsAvailable accessories: Standard sockets, logic sockets, pluggable functionmodules, holder and marker
