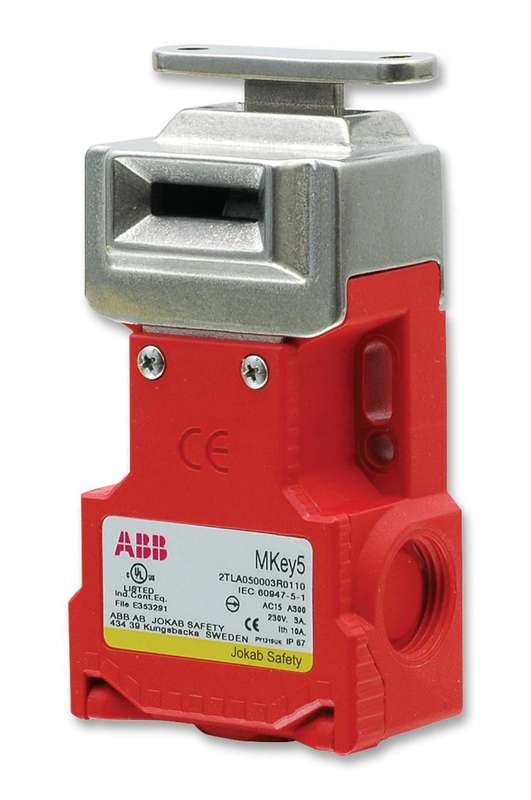

Abb (2TLA050003R0100) Safety Interlock Switch, 250 V, 4 A, IP67

Safety Interlock Switch, MKey5, DPST-NC, SPST-NO, Screw, 250 V, 4 A, IP67Product InformationProduct Range: MKey5Contact Configuration: DPST-NC, SPST-NOSwitch Terminals: ScrewContact Voltage AC Max: 250VContact Current AC Max: 4AIP Rating: IP67Contact Voltage DC Max: 250VContact Current DC Max: 4AProduct OverviewThe MKey5 series Interlock Switch are designed to provide position interlockdetection for moving guards. They are designed to fit the leading edge ofsliding, hinged or lift off machine guards. The actuator is fitted to the movingpart of the guard and is aligned to the switch entry aperture. The head can berotated to provide four given actuator entry positions. When the actuator isinserted into the switch the safety contacts close and allow the machine startcircuit to be enabled. MKey5 has several types of actuators as an option. Astandard actuator key is always delivered with interlock switches. The MKey5switches are suitable for use with gates and hatches applications.2NC + 1NO (actuator in)4 Actuating positions12 or 40N Actuator holding force1 Million operations mechanical lifePlastic, Plastic with stainless steel head or stainless steelIP67 Protection ratingApplicationsIndustrial, Safety
