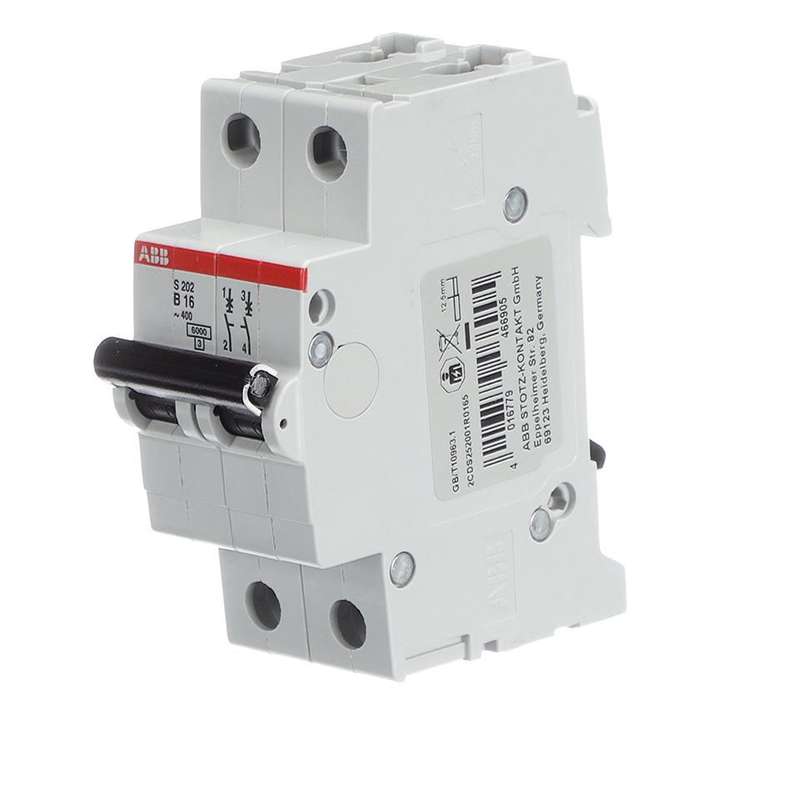

Abb (S202-B16) Thermal Magnetic Circuit Breaker, 16 A, 2 Pole

Thermal Magnetic Circuit Breaker, Miniature, B Curve, System Pro M Compact S200,16 A, 2 PoleProduct InformationProduct Range: System Pro M Compact S200Current Rating: 16ANo. of Poles: 2 PoleVoltage Rating VAC: 277VACCircuit Breaker Mounting: DIN RailProduct OverviewThe S202-B16 Miniature Circuit Breaker is part of ABB's System pro M compactS200 miniature circuit breakers and is current limiting. The breakers have twodifferent tripping mechanisms, the delayed thermal tripping mechanism foroverload protection and the electromechanic tripping mechanism for short circuitprotection. They are available in different breaking capacities (up to 6kA at230/400VAC) and rated currents (up to 63A). All MCBs of the product range S200comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use forresidential, commercial and industrial applications. Bottom-fitting auxiliarycontact can be mounted on S200 to save 50% space.The S202-B16 Miniature circuit breaker from ABB's System Pro M Compact S200 iscurrent limiting and finger-safe (IP20)Its patented connection terminal ensures simple and safe contacting and handlingby means of a pressure plateFor better visibility while wiring, the connection opening for cables is abovethe connection opening for the phase railConductor cross-sections of up to 35mm² can be connected directly to the devicevia the connection terminal with insulation in protection class IP20The extensive range of accessories offers you everything you need for yourinstallation tasksApplicationsIndustrial, Aerospace, Defence, Military, Safety
