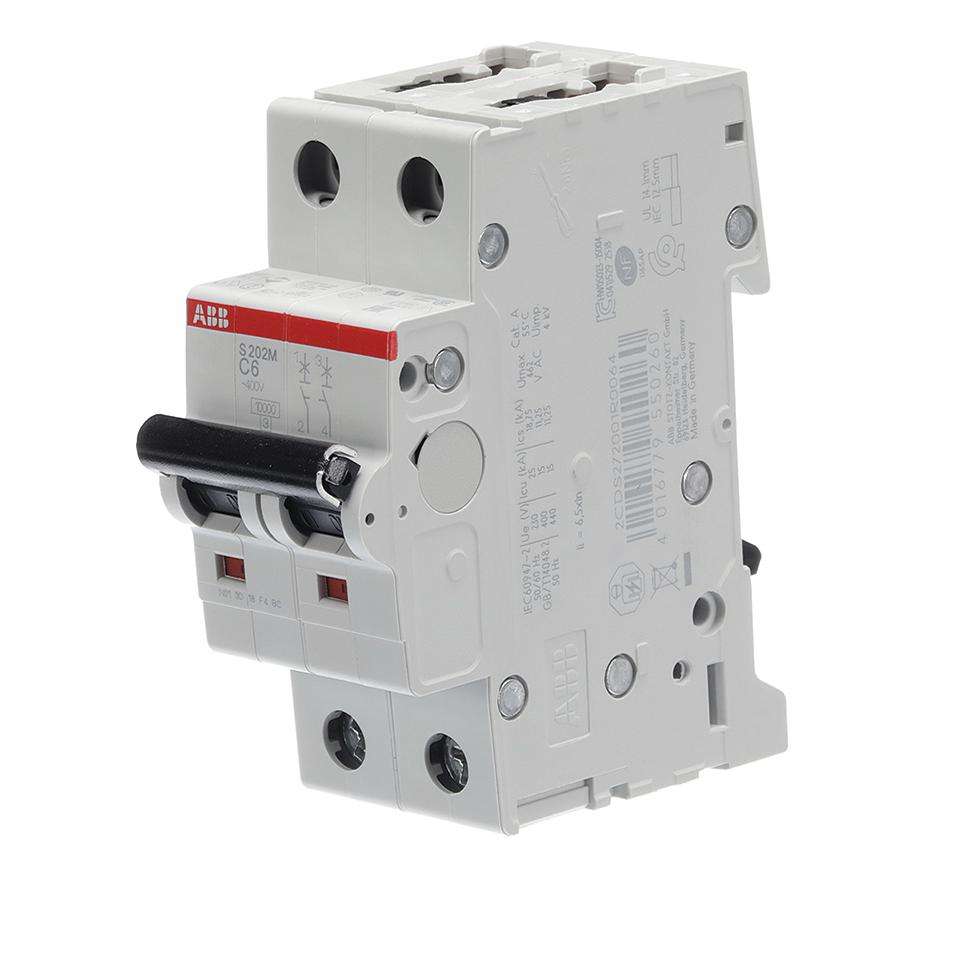

Abb (S202M-C6) Thermal Magnetic Circuit Breaker, 6 A, 2 Pole

Thermal Magnetic Circuit Breaker, Miniature, C Curve, System Pro M Compact S200,6 A, 2 PoleProduct InformationProduct Range: System Pro M Compact S200Current Rating: 6ANo. of Poles: 2 PoleVoltage Rating VAC: 400VACCircuit Breaker Mounting: DIN RailProduct OverviewThe S202M-C6 is a 6A miniature circuit breaker and part of ABB's System pro Mcompact S200 miniature circuit breakers for current limiting. They have twodifferent tripping mechanisms, the delayed thermal tripping mechanism foroverload protection and the electromechanic tripping mechanism for short circuitprotection. They are available in different characteristics (B,C,D,K,Z),configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6kA at230/400VAC) and rated currents (up to 63A). All MCBs of the product range S200comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use forresidential, commercial and industrial applications. Bottom-fitting auxiliarycontact can be mounted on S200 to save 50% space.The S202M-C6 is a 6A miniature circuit breaker (finger-safe IP20) of ABB's Pro MCompact S200 range which offers protection in modern applicationsThe miniature circuit breakers are characterized by high performance andnumerous accessories as well as many approvals and have patented doubleconnectionsThey have a delayed thermal tripping mechanism for overload protection and anelectromechanical tripping mechanism for short circuit protectionWell equiped: Patented twin terminal with captive screws, increased opening forcables and busbar slot in the back for best visibility during installationApplicationsIndustrial, Aerospace, Defence, Military, Safety
