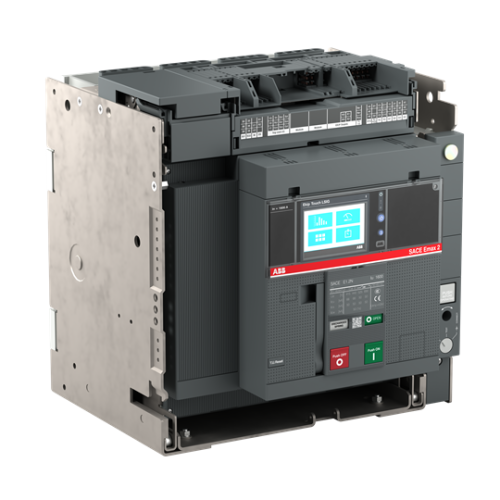

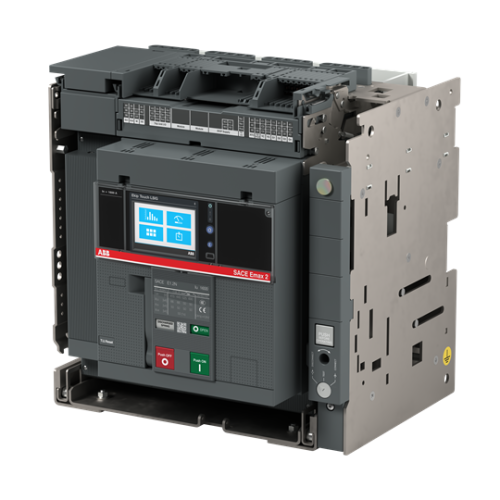

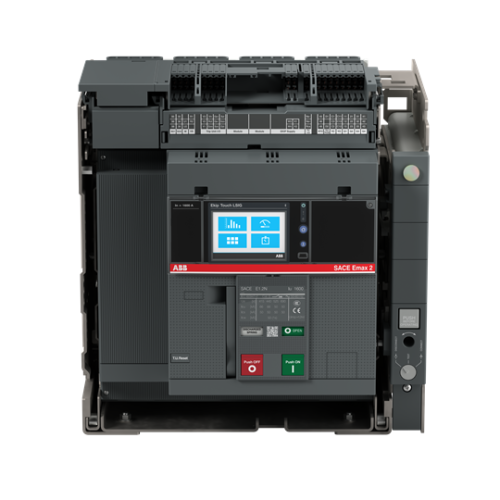

ABB SACEE 1.2c Emax 2 1600A 50KA

C.BREAKER SACE EMAX2 E1.2C 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Current Type:AC

Electrical Durability:Ue =< 440 V 3000 cycle

Ue = 500 ... 690 V 6500 cycle

30 cycles per hour

Mechanical Durability:20000 cycle

60 cycles per hour

Number of Poles:3

Power Loss:at Rated Operating Conditions per Pole 201 W

Product Main Type:SACE Emax 2

Product Name:Automatic Circuit Breaker

Product Type:CB

Rated Current (In):1600 A

Rated Impulse Withstand Voltage (Uimp):acc. to IEC 60947-2 12 kV

Rated Insulation Voltage (Ui):AC 1000 V

Rated Operational Voltage:690 V AC

Rated Service Short-Circuit Breaking Capacity (Ics):(220 V AC) 50 kA

(230 V AC) 50 kA

(380 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 42 kA

(660 V AC) 42 kA

(690 V AC) 42 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):100 %

Rated Short-time Withstand Current (Icw):for 1 s 42 kA

for 3 s 24 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu):(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 42 kA

(525 V AC) 42 kA

(690 V AC) 42 kA

Rated Uninterrupted Current (Iu):1600 A

Rated Voltage (Ur):690 V

Release Type:EL

Standards:IEC 60947

Sub-type:E1.2

Terminal Connection Type:Front

Version:F
