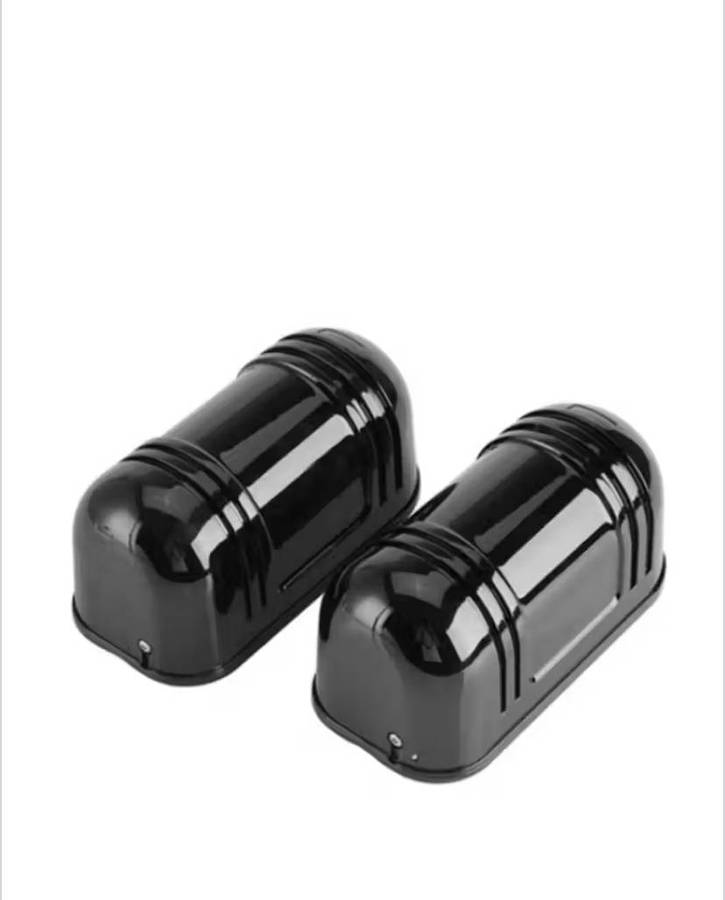

ABT-150 Alarm 2 Beams Infrared Photoelectric Detector

This is ABT-150 Alarm 2 Beams Infrared Photoelectric Detector. Integrated design, installation brackets, the most convenient installation.
Holographic spot real-time report. Unique displacing receiving, transmitting parts with big power.
Full function checking, self-adaption in environment and trouble locking. Patented balanced checking, unique digital filtering.

Features:
Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid glare or lighting of car
Unique optical design: Optical glass, beam penetrates the special multi-layer anti-environment (such as rain and snow) and other capabilities
Automatically increase sensitivity when faced with fog or inclement weather
Optional dual aspheric Fresnel or secondary focusing lens to achieve a large-diameter light beam
Automatic environment recognition circuit (EDC), avoid reflective interference modular
Horizontal / vertical optical angle easy to adjust, easy to calibrate
High levels of resistance to RFI / EMI capability
Unique digital filter circuit design
99% photographic margin
Built-in optical sight
Anti-lightning circuit design
Use of C-type output device
Adjustable beam interdiction cycle is more flexible and adaptable
The integrated structure designed to be able to work in harsh environment

Specifications:
No. of Beams: 2 beams
Install Distance (Max.) Outdoor: 150m / Indoor: 450m
Detection Mode: 2 beams blocked simultaneous
Optical Source: Infrared digital pulse beam
Response Speed: 50 ~ 700msec
Relay contact output: NO.NC
Contact Rating output: AC/DC30V 0.5AMax
Power Supply: DC 13.8 ~ 24V AC 11 ~ 18V P 15W
Operation temperature: -25 °C - 55 °C
Operation humidity: 5% - 95% RH (relative humidity
