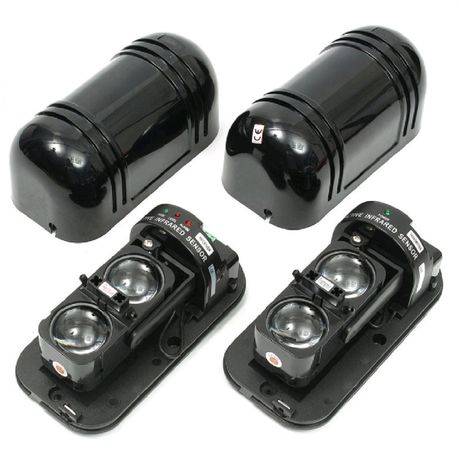

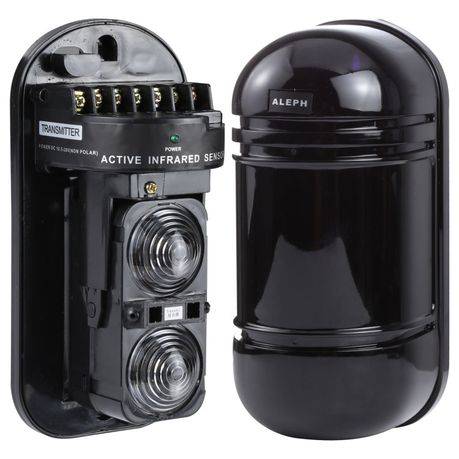

ABT Series-150 Outdoor Dual Receiver & Transmitter IR Beam - 150m
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
ABT-150 series is designed for perimeter protection. These detectors adopt a new patented compact design, a durable structure with IP65 weatherproof rated against dust, and rain for both indoor and outdoor applications. Utilizing dual beams technology, the detector can provide reliable intrusion detection, and avoid false alarms caused by pets, animals, or weather conditions. Included installation brackets for easy installation.
Note: Beams connect directly to your existing wired alarm system, compatible with all wired alarm systems.
Features:
- Intelligent power transmission: Independent development of the chip can automatically sense ambient changes (According to the environmental conditions to automatically adjust to the radio transmit power, greatly extending the life of the launching tube and lowering power.)
- Cable, bus compatible, holographic spot real-time reporting.
- Full-function diagnostics, environmental adaptive, fault lock.
- Digital Fuzzy Artificial Intelligence Identification: Using artificial intelligence fuzzy judgments, false positives are minimal.
- Patent coaxial dual focal length precision optical aspheric focusing lens.
- Dedicated DSP chip, patented multi-dimensional fault-tolerant, real detection alarm technology.
- Optical lens up and down while structural adjustments, to adjust faster and more accurately.
- Professional CPU chips, strong anti-interference
Specifications:
- Outdoor Distance: 100m
- Indoor Distance: 300m
- Beams: 2
- Optical Source: Infrared digital pulse mode
- Response Speed: 50-700ms
- Alarm Output: NC&NO contact rating AV/DC 30V/0.5A
- Alarm Output-bus: MA bus across wave carrier model
- Input Voltage: DC 9-24V, AC 11-18V
- Current: 65mA
- OperationTemperature/Humidity: -25 degrees C-60 degrees C, 5%-95%
- Crust Material: PC resin tin metal
- Level Adjustment Axis: 180 degree +/- 90 degree
- Vertical Adjustment Axis: +/- 10 degree
- Tamper Output: NC contact rating AV/DC 24V/0.5mA
- Housing Material: Polycarbonate
