ABT Series 150m Outdoor Dual Receiver and Transmitter IR Beam

ABT Series 150m Outdoor Dual Receiver and Transmitter IR Beam

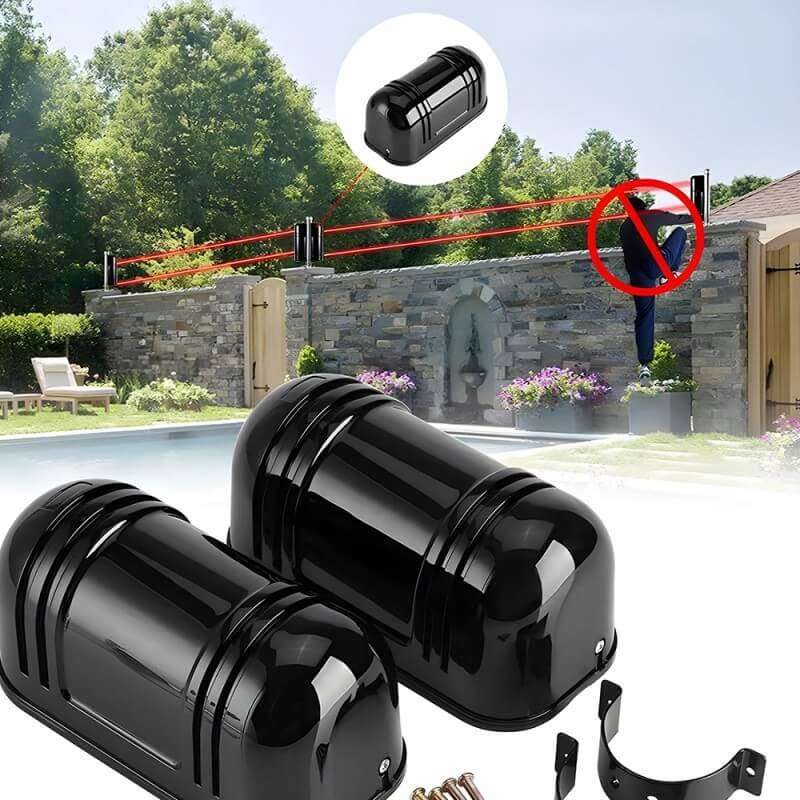

The ABT Series 150m Outdoor Dual Receiver and Transmitter IR Beam is designed for high-security perimeter protection. These detectors feature a patented compact design and a durable structure that is IP65 weatherproof rated, making them suitable for both indoor and outdoor applications. The dual beam technology ensures reliable intrusion detection while minimizing false alarms caused by pets, animals, or adverse weather conditions. The installation is made easy with included installation brackets.

Features:

• Intelligent Power Transmission: Additionally, the system automatically adjusts radio transmit power based on environmental conditions, thereby extending the life of the launching tube and reducing power consumption.
• Compatibility: Additionally, can be connected to your existing wired alarm system and is compatible with all wired alarm systems.
• Advanced Diagnostics: Features full-function diagnostics, environmental adaptability, and fault lock.
• Artificial Intelligence Identification: Utilizes digital fuzzy AI to minimize false positives.
• Precision Optical Technology: Equipped with a patented coaxial dual focal length precision optical aspheric focusing lens.
• DSP Chip and Fault Tolerant Technology: Includes a dedicated DSP chip and patented multi-dimensional fault-tolerant real detection alarm technology.
• Adjustable Optical Lens: The optical lens can be adjusted up and down for faster and more accurate installation.
• Professional CPU Chips: Ensures strong anti-interference capabilities.

Specifications:

• Outdoor Distance: 150m
• Indoor Distance: 450m
• Beams: 2
• Optical Source: Infrared digital pulse mode
• Response Speed: 50-700ms
• Alarm Output: NC&NO contact rating AV/DC 30V/0.5A
• Alarm Output-Bus: MA bus across wave carrier model
• Input Voltage: DC 9-24V, AC 11-18V
• Current: 65mA
• Operating Temperature/Humidity: -25°C to 60°C, 5%-95%
• Crust Material: PC resin tin metal
• Level Adjustment Axis: 180° +/- 90°
• Vertical Adjustment Axis: +/- 10°
• Tamper Output: NC contact rating AV/DC 24V/0.5mA
• Housing Material: Polycarbonate

What's in the Box:

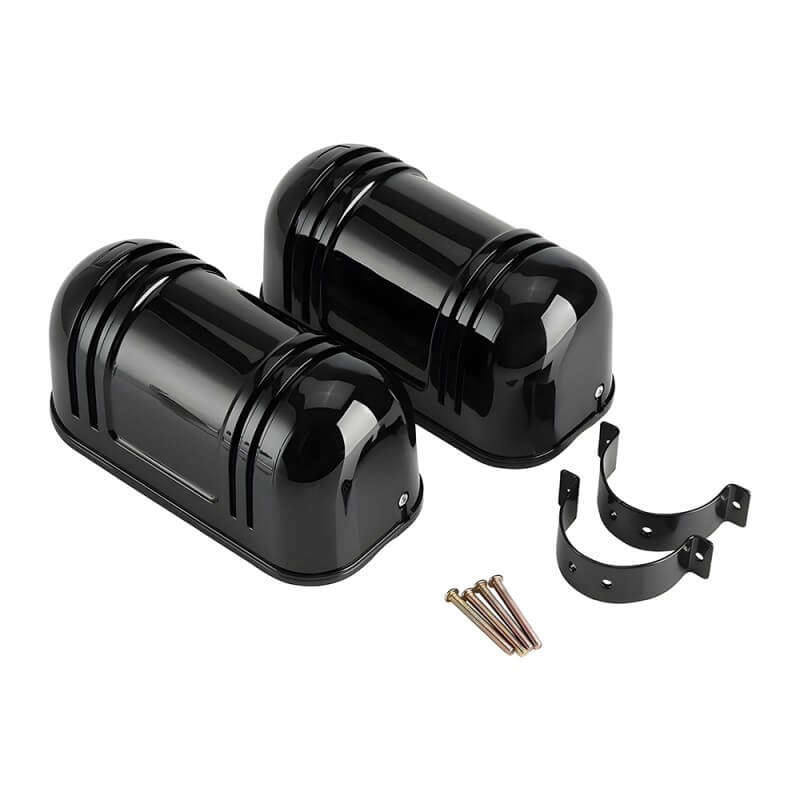

• 2 x ABT Series-150 Outdoor Dual Receiver and Transmitter IR Beam - 150m
• 1 x Full accessories set

Additionally, the Outdoor Dual Receiver and Transmitter IR Beam is a robust and reliable solution for perimeter protection. Moreover, with its advanced features such as intelligent power transmission, AI identification, and strong anti-interference capabilities, it provides effective and accurate intrusion detection. Furthermore, the IP65 weatherproof rating and durable design ensure long-lasting performance in various environmental conditions. Therefore, this system is an excellent choice for enhancing the security of your property, providing peace of mind with its reliable and sophisticated detection technology.
