Complete set consisting of a 3.5 TFT monitor and an IR wireless outdoor camera (2.4 GHz), User-friendly OSD (on-screen menu), Compact IP66 outdoor camera with infrared night vision function and 400 TVL resolution, Digitally encrypted audio and video transmission.

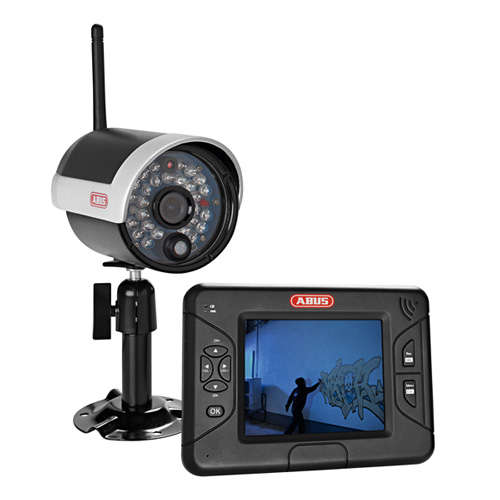

The Abus TVAC15000 Wireless 3.5 " Home Video Surveillance Set is the complete package and contains everything you need to quickly build up a wireless video surveillance in private homes or for small objects (1 to max. 4 cameras).
The set contains a 2.4 GHz wireless monitor and an IR- radio outdoor camera with PIR motion detector. The camera transmits the video signal wirelessly to the wireless monitor. Due to the conversion of video and audio data into a digital signal interference are avoided, which provides a good range and transmission quality. In addition, the data is encrypted, in order to ensure a protected transmission.
As soon as the PIR sensor of the camera unit detects a movement it sends the video and audio data to the monitor and this starts the recording on SD-card. You have the ability to connect up to 4 cameras to the monitor and display those in the 4-view display.
Camera and wireless monitor are a perfectly matched team - in favour of a fast and easy start-up. Due to its ease of installation and the compact, versatile monitor the set is especially recommended for the home video surveillance systems such as the entrance door.
Scope of delivery
1 x 3,5'' Monitor
1 x Wireless Outdoor IR camera (2.4GHz) (TVAC15010)
1 x Power Supplies inkl. EU-, AUS- und UK-Adapter
1 x SD-Card 2 GB
1 x Manual
Technical Data
TFT-monitor: Modulation: GFSK
Transmission power: 16 dBm
Sensitivity: -82 dBm
Resolution: 640 x 480 pixels (VGA) / 320 x 240 pixels (QVGA)
Video signal: 4 x BNC (1.0 V p-p, 75 Ω)
Audio signal: 4 x BNC (1.0 V p-p, 600 Ω)
Outputs: 3.5mm jack (video)
Storage medium: SDHC-card, Max 32 GB.
Battery type: Li-ion polymer rechargeable battery, 3.7 V / 1250 mA
Battery runtime: ~ 3.5 hours
Power consumption: Max 650mA
Weight 200 g
Cameras: Modulation: GFSK
Transmission power: 16 dBm
Sensitivity: -82 dBm
Resolution: 640 x 480 pixels VGA resolution
Number of IR LEDs: 27 IR LEDs
Lens: 3.6 mm
Viewing angle: 56° (H) / 43° (V)
PIR-viewing angle: 60° (H) / 50° (V)
PIR rangeMax 5 m
Range night vision function: ~ 10 m
IR-filter: yes
IP protection class IP66
Weight: 320 g
Complete set consisting of a 3.5 TFT monitor and an IR wireless outdoor camera (2.4 GHz), User-friendly OSD (on-screen menu),
Compact IP66 outdoor camera with infrared night vision function and 400 TVL resolution, Digitally encrypted audio and video transmission - See more at: http://www.eshop24.co.za/pTVAC15000/Abus-TVAC15000-Wireless-35-Home-Video-Surveillance-Set.aspx#sthash.ZJlrNaoF.dpuf
