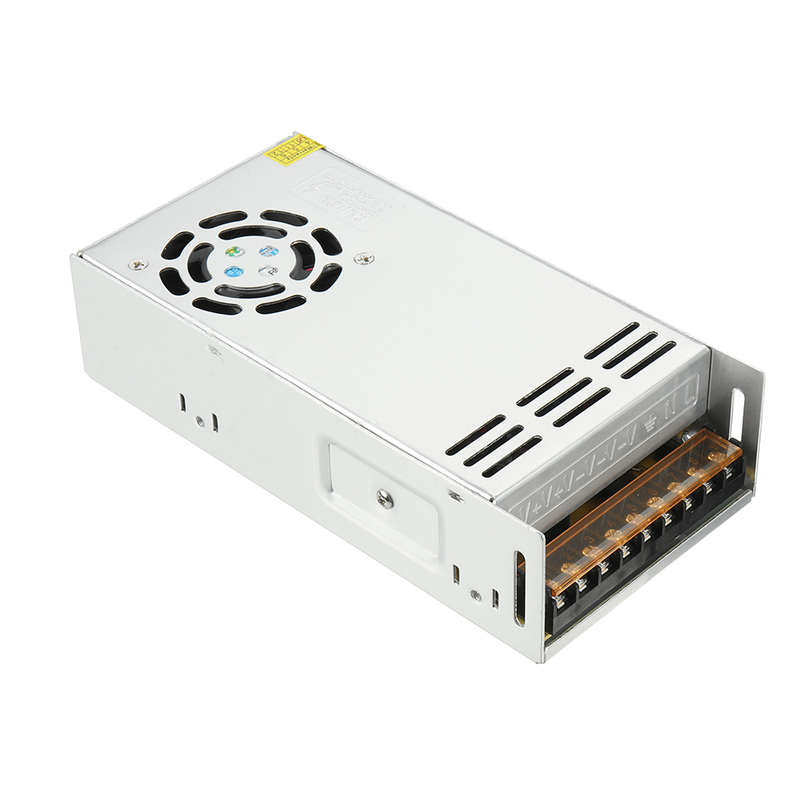

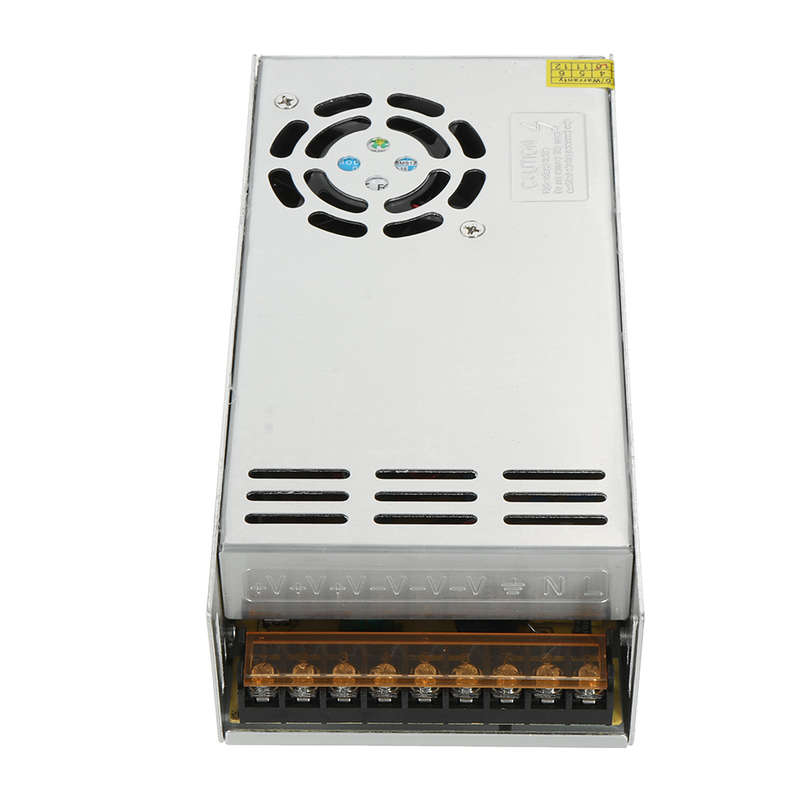

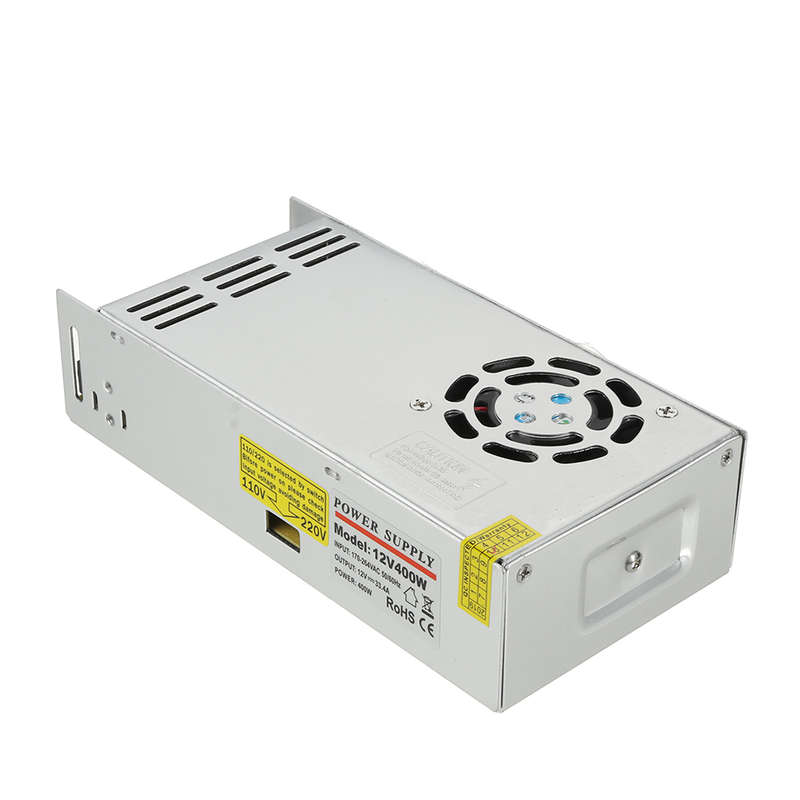

AC 110/220V to DC 12V/24V 400W Switching Power Supply Driver for LED Light Strip S... (VOLTAGE: 12V)

SELECTED OPTION:
VOLTAGE: 12V

12V/24V Switching Power Supply Driver for LED Strip 400W Switch Power Supply Transformer

Specifications:
Type: YY-400-12/YY-400-24 Power: 400W Max Material: Metal Input voltage: AC100-260V Output voltage: DC12V/24v 0-33A Difference range: &pm;1% Effectiveness :>80% Output adjustable voltage range: &pm;5% Frequency: 50-60Hz Leakage current: <1mA/230V Temperature coefficient: &pm;0.03%/a(0 ~ 50a) Start/ rise/ hold time: 200ms,50ms,20ms Shock resistance: 10 ~ 500Hz,2G 10min/1cycleEach axis Protection: Overload voltage over-current short circuit protection Size: 200*98*50mm Features: -Power start LED indicator. -Small, full range AC input. -Wide operating temperature range.
-High life, high efficiency, high reliability.
-Natural air cooling (12w-200w) ; Fan cooling (240w-600w) . -Multiple protections stabilize output power so you can use it with confidence. -Suitable for security monitoring light boxes, advertising displays, light strips, etc.
Tips: 1. Choose the right power in order to increase the life of the power supply. Please choose a model with 30%
more output power than the appliance. For example, for 80W appliances, please use 100W power supply. 2. Before powering on, check whether the input and output leads are connected correctly to avoid damage
to the user equipment. 3. Check whether the installation is firm. Install the screws and the power board device for contact. Measure
the insulation resistance of the housing and the input and output to avoid electric shock. 4. To ensure the safety of use and reduce interference, please ensure that the grounding terminal is reliably
grounded. 5. The power supply should not be installed in an environment with inflammable materials and easy to catch
fire (such as wood products, plastics, cardboard, etc.) to prevent fires from occurring.

Note:
Pay attention to waterproof when using.

Package Included: 1 x 12V/24V Switching Power
