Specifications: Product Name:LED switch power supply
Input Voltage:110V-220V Output Voltage:DC5V Output Current:20A
Output Power:100W

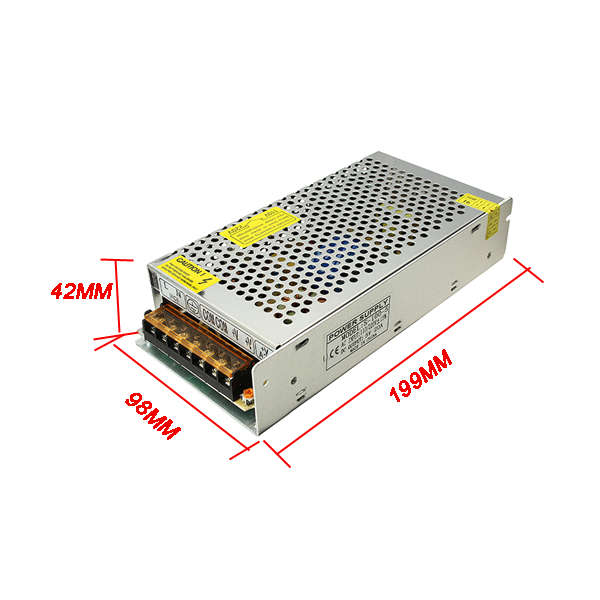

Size:199*98*42mm(L*W*H)
Protection:Short circuit/Over load/Over voltage
Shell Material:Metal case/Aluminum base.
Application:LED strip, led module, led lamp

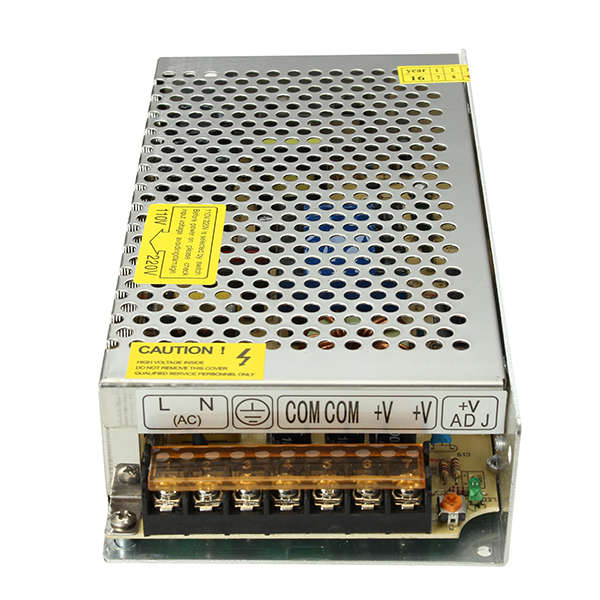

Connection: L, N:AC power input

:AC power Ground
-V :DC power output -
+V :DC power output +
ADJ:Adjust the output voltage
Working Temperature:-10~+50ᆪc
Storage Temperature:-20~85ᆪc
Ambient Humidity:20%~95% Non-Condensation
Note: This power supply unit Does Notcome with installation instruction, wiring cable,on/off switch,or screws.
Professional installation instruction of qualified is highly recommended.
Package Included: 1 X DC5V 20A 100W Power Supply
