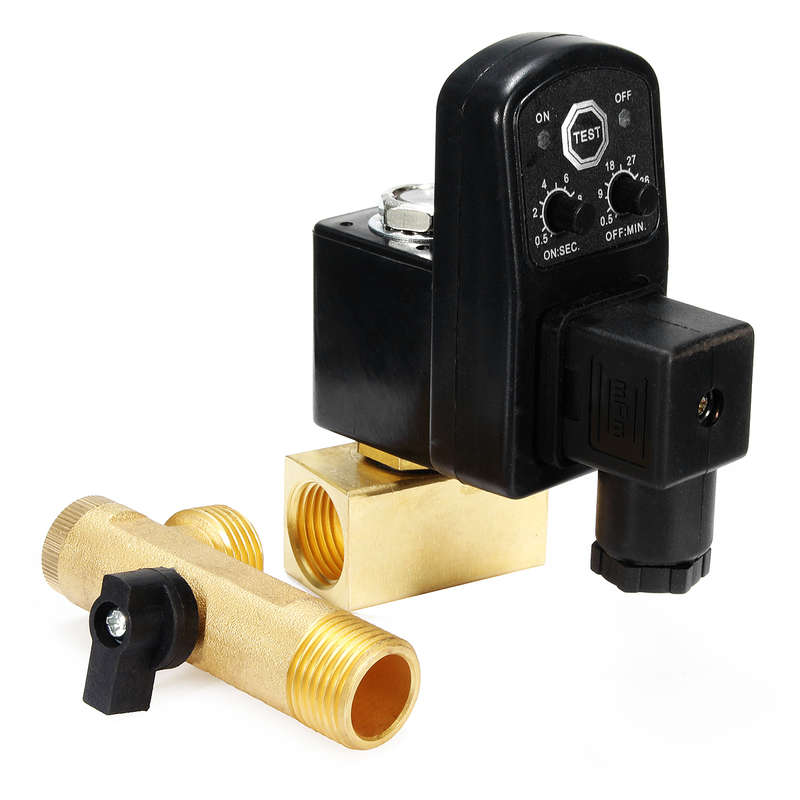

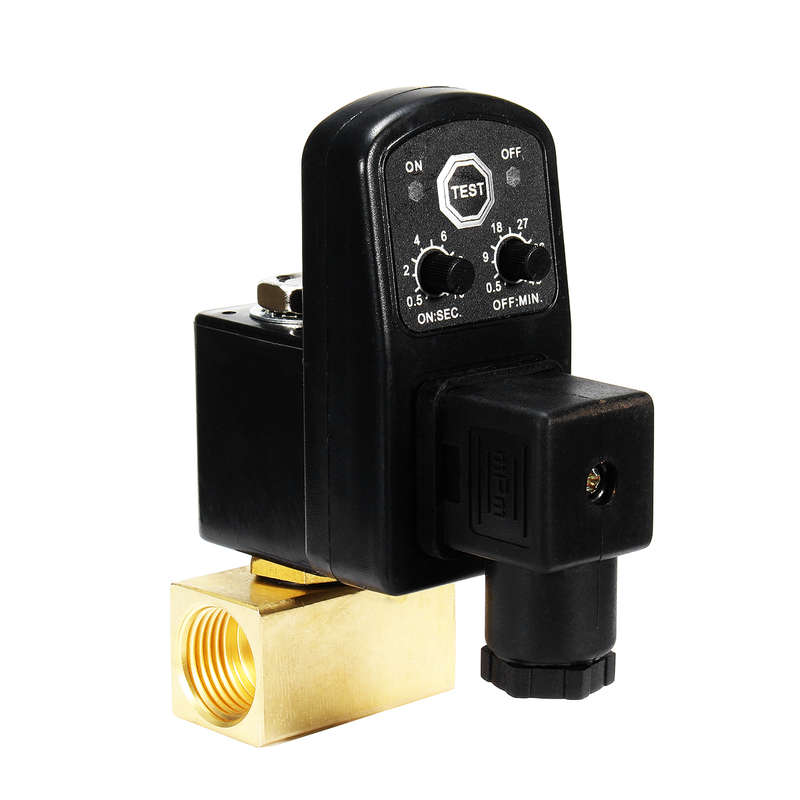

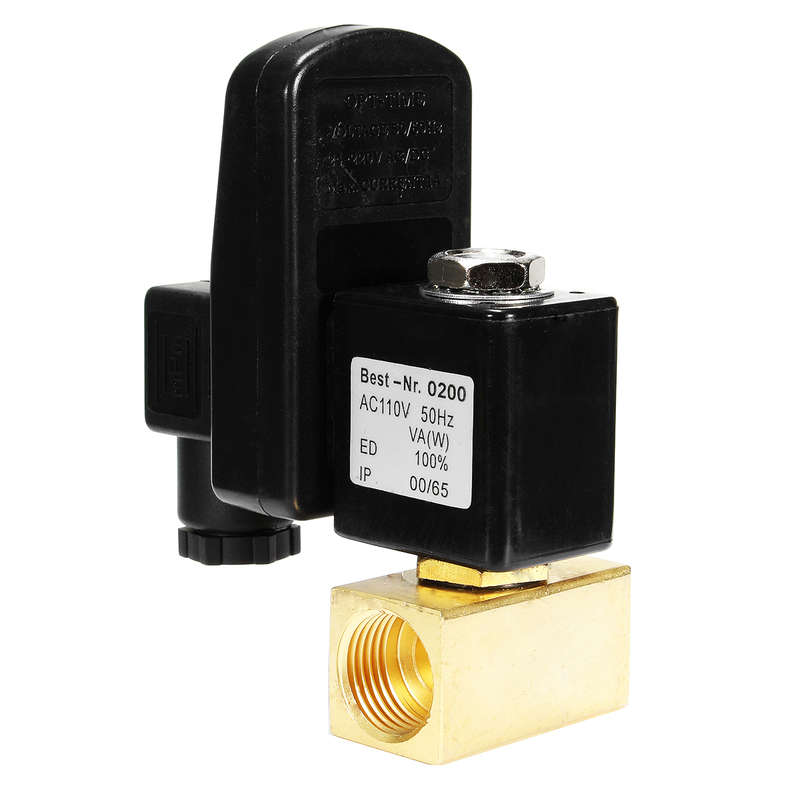

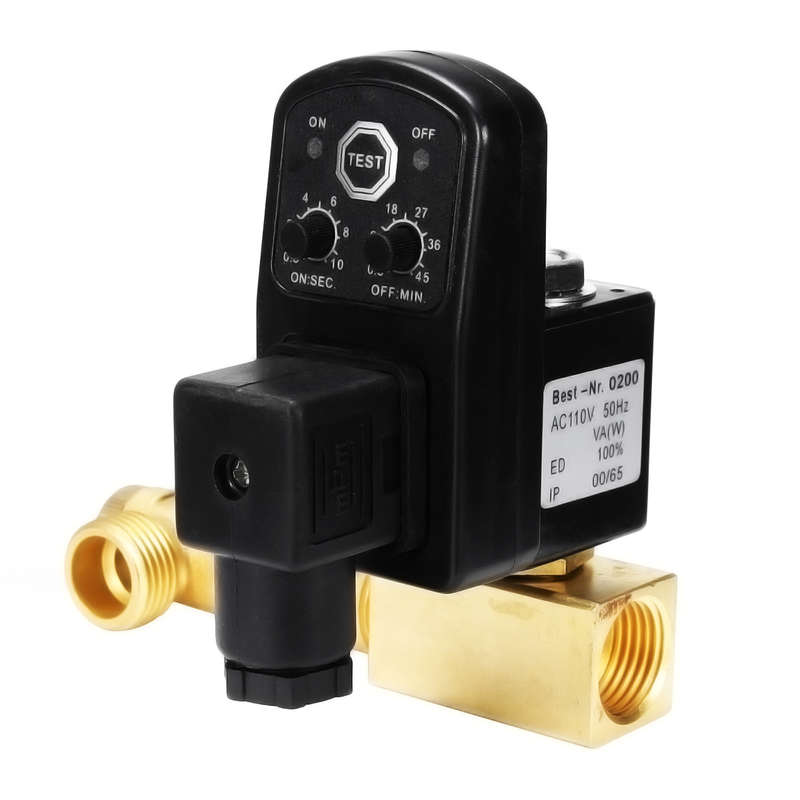

AC 110V 1/2 Inch 2-way Drain Valve Electronic Timed Air Compressor Condensate Auto Pressure Switch

Description: Electronic Timed Air Compressor Condensate Auto AC 110V 1/2 Inch 2-way Drain Valve Specification: Voltage: AC110V 50Hz Voltage Range: 10% Time Interval ( OFF ): 0.5--45 minutes (adjustable) Discharge Time ( ON ): 0.5--10 seconds (adjustable) Manual Test Button: Yes( micro switch) The Current Consumption: Max 4mA Ambient Temperature: -40 C to 60 C. Protection Grade: IP65

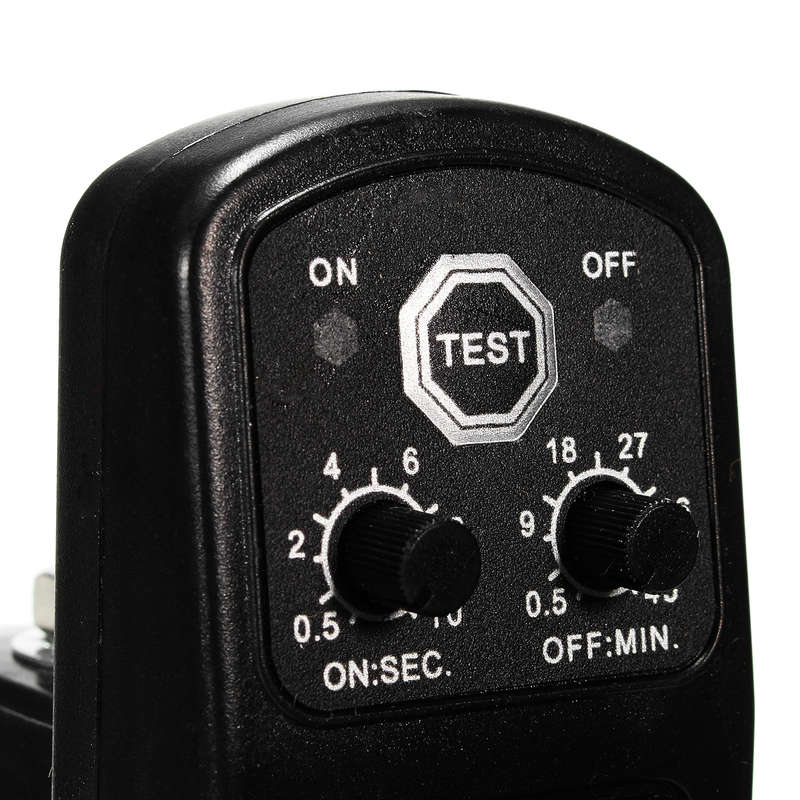

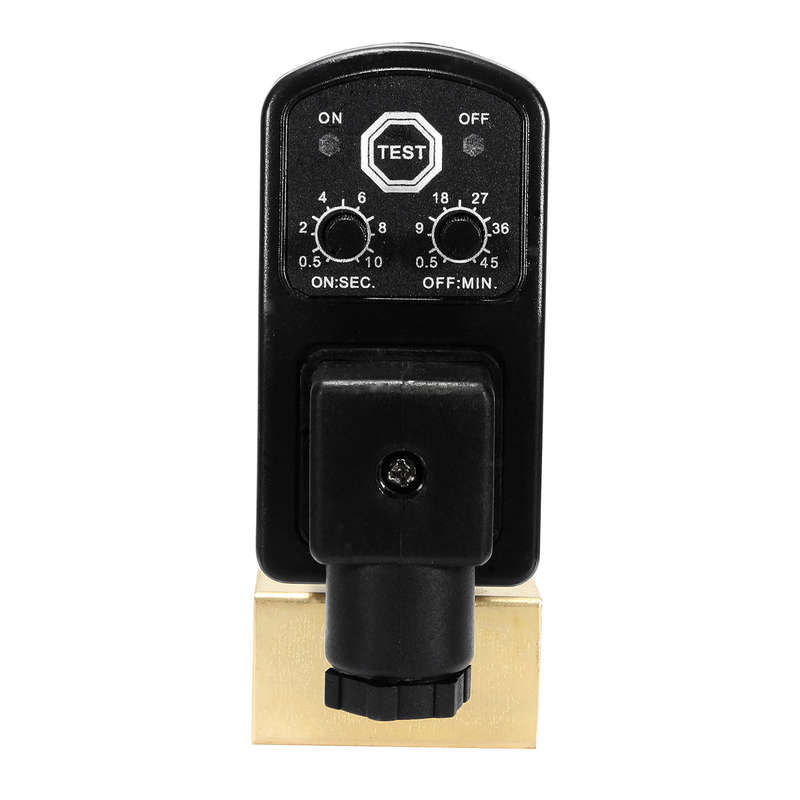

Shell Material: Flame retardant ABS plastic Electrical Connection: DIN43650A Indicator Lamp: LED indicating power ON / OFF Type: two-way direct-acting valve Flow Aperture: 5 mm Insulation Class: H In / Out Port Size: 1/2 Maximum Working Pressure: 1.6Mpa Maximum Temperature: 90 C Valve Material: Forging brass Notes: the plug is built-in, you can unscrew the screw. Installation: 1. Clean the compressed air system before installing 2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact 3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected tothe connector 1 4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow andgreen color for the safe ground GND 5. Always tighten the long screws on the terminal box to prevent the water from burning Warning: When installing an electronic drain valve, make sure that: 1. Compressed air has been emptied (at zero pressure) 2. Power has been cut off Timer setting: Left knob to set the discharge time, the right knob to set the interval time;
the first discharge time of 2s, the intervaltime is 20min, and then need to be further adjusted Package Included: 1x Drain Valve More Details:
