Package included:
1*Voltage Regulator
Specification:

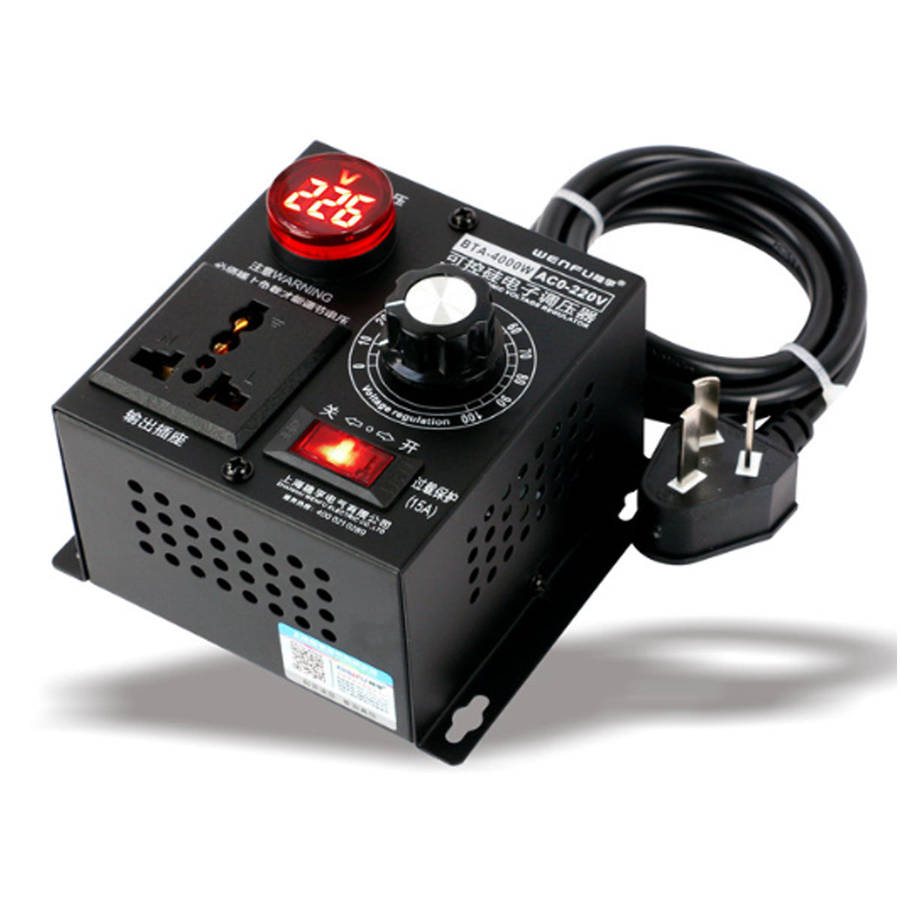

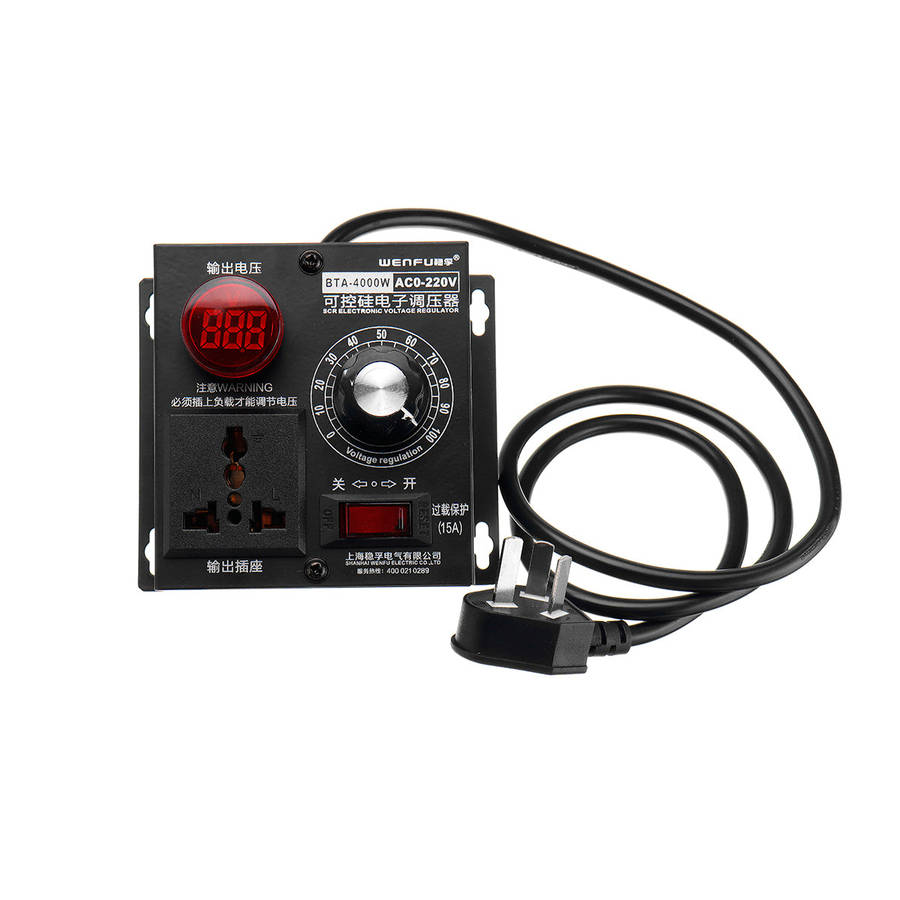

Product name: AC 220V 4000W Variable Voltage Regulator
Material: Metal shell
Size: 11.5*10*6cm/ 4.5*3.9*2.4inch(Approx.)
Weight: approx.500g
Input Voltage: AC 220V
Output Voltage: 0~220V (Adjustable)
Adjustable Voltage Range: 0~220V
Max Power: 4000W
Rated Current: 9A
Max. Current: 18A
Features:
Core chip adopts high power thyristor
With adjustable knob for stepless voltage regulation
No delay, anti-surge, anti-spike, RC absorption multiple protection
With universal power socket and power supply light
With heat dissipation port for fast heat dissipation 4000W High-power Motor Fan Variable Thyristor Electronic Voltage Regulator Controller
Adopts metal shell structure, high temperature resistance, flame retardant, not easy to rust
Tips: Precautions and instructions for use
1. When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.
2. Input AC power, the output is also AC, not DC.
3. The above mentioned 4000W refers to the ulti mate power when working under resistive load.
The inductive load is 1/3 of the resistive load. The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor, etc., and the circuit board electronic products are used with caution.
4. This product is a metal case and must be grounded safely.
