Condition
New
Location
International
Product code
1260084[LICS]
Bob Shop ID
487437844
Features:
-US-52 220V 50Hz Electrical AC Motor Speed Control Pack.
-Motor Speed Control Pack is widely used in packaging, brushing, food, electronics, the medical instrument, glasses machinery industry to the production-stage machinery velocity modulation driver.
-Motor Speed Control use in motor and electric device.
-Adjust the rate of stability and mechanical properties.

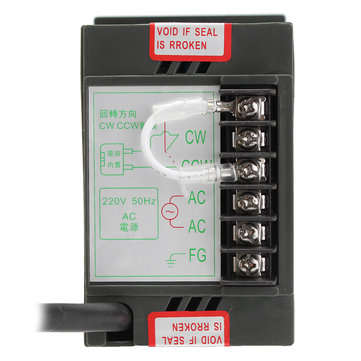

-Co-rotation/ Reverse Option, connect CW and COM is co-rotation, Connect CW and CCW is option.

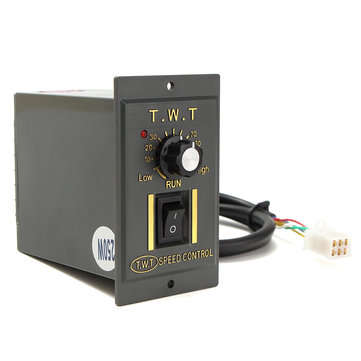

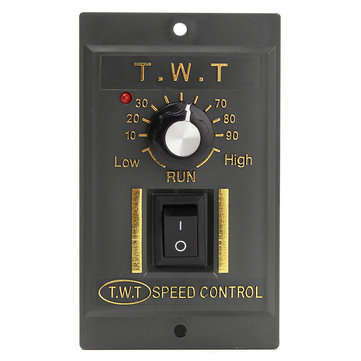

-Green LED indicator, on/ off switch for controlling, the knob switch for adjust the speed.
Specifications:
Product Name: Motor Speed Controller
Material: Plastic, Electrical Material
Rated Value: AC 220V,50HZ
RMP: 1400
Dimension:170*100*60mm
Power: 250W
Notice:
1. Reduction gear motor won't work unless it is used with appropriate electromotor.
2. Wire should be connected properly according to wire color , otherwise may lead to burn out internal electronic components.
Package included:
1 x 250W AC Motor Speed Control
-US-52 220V 50Hz Electrical AC Motor Speed Control Pack.
-Motor Speed Control Pack is widely used in packaging, brushing, food, electronics, the medical instrument, glasses machinery industry to the production-stage machinery velocity modulation driver.
-Motor Speed Control use in motor and electric device.
-Adjust the rate of stability and mechanical properties.
-Co-rotation/ Reverse Option, connect CW and COM is co-rotation, Connect CW and CCW is option.
-Green LED indicator, on/ off switch for controlling, the knob switch for adjust the speed.
Specifications:
Product Name: Motor Speed Controller
Material: Plastic, Electrical Material
Rated Value: AC 220V,50HZ
RMP: 1400
Dimension:170*100*60mm
Power: 250W
Model: US51/52
Type: Motor Governor
Input voltage: 220V
Output voltage: 220 (V)
Rated power: 0.006-0.090 (KW)
Input speed: 1400 (rpm)
Output speed range: 90/1700
Scope of application: micro power reducer motor motor speed control motor
Working parameters:
Rated voltage: 220~230V
Operating voltage range: ±10%
Power frequency: 50 / 60Hz ≤ ± 2%
Motor output : 6W /15W /25W /40W /60W /90W /120W /150W /180W/200W
Speed control range: 90~1400rpm / 90~1700rpm
Speed change: 5%
Speed setting: continuous
Control : Electronic speed control motor
Electronic valve: 0.5S
Response: Quick response
Parallel operation: not applicable
Soft stop / start : no
Operating temperature: -10~50°C
Storage temperature: -20~60°C
Suitable for motors: induction, reversible
Installation size: 54 * 96mm
Notice:
1. Reduction gear motor won't work unless it is used with appropriate electromotor.
2. Wire should be connected properly according to wire color , otherwise may lead to burn out internal electronic components.
Package included:
1 x 250W AC Motor Speed Control
Wiring diagram:
The working principle of the single-phase AC motor governor is to connect the bidirectional thyristor in the motor control loop to control the conduction angle of the thyristor to control the terminal voltage of the motor. When the external power supply voltage or load fluctuation causes the speed to change, the tachogenerator output signal coaxially connected with the motor is compared with the speed reference signal through the integrator, and the error amplification and the zero-crossing trigger signal are automatically driven by the phase shifting trigger. Adjust to stabilize the speed at a given value. When changing the steering, simply replace the motor's positive and negative joints.
