Name: AC 220V Ultrasonic Cleaner Power Driver Board With 2Pcs 50W 40K Transducers
SKU: 1122413
Price: 1267.71 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

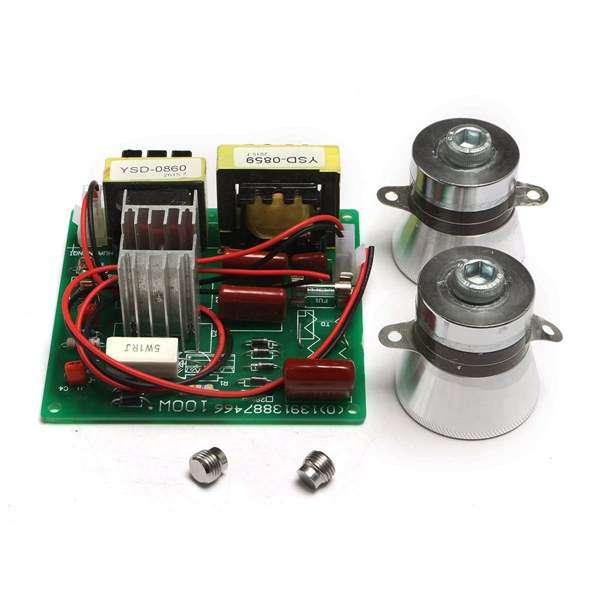

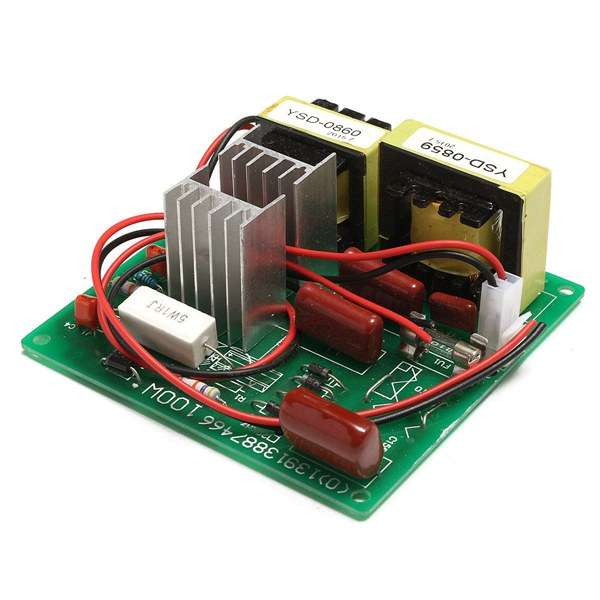

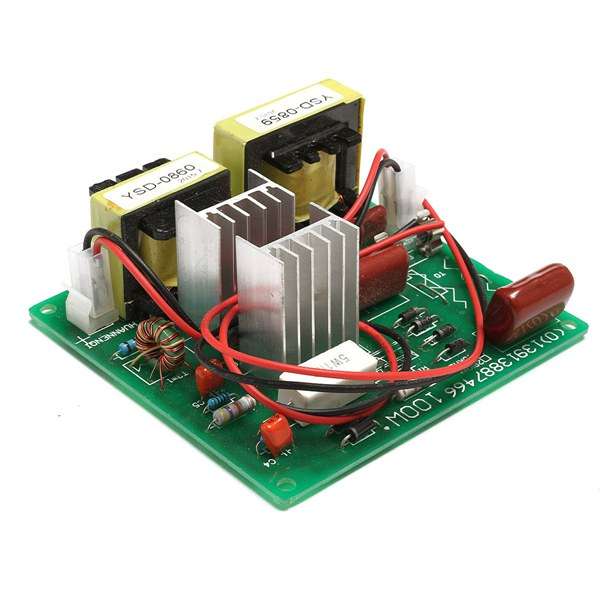

AC 220V Ultrasonic Cleaner Power Driver Board With 2Pcs 50W 40K Transducers

30 were available / new

Indicative market price: R1,799.00

R1,267.71

30% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

1122413

Bob Shop ID

303461711

Package weight: 0.70 kg
Specification:
Model: 478824
Power board: 220V 100W
Pendulum: 50W 40KHZ
Applies to: Low-power ultrasonic cleaning machine, household cleaning machine, ultrasonic generator built machine.
Feature:
The ultrasonic generator can monitor the power system frequency ultrasound power
According to different requirements of users, real-time adjustment of various parameters: The power, amplitude, and running time
Power tube: import power tube
PCB: double-sided two ounces
Stable performance
Large radiator, cooling fast

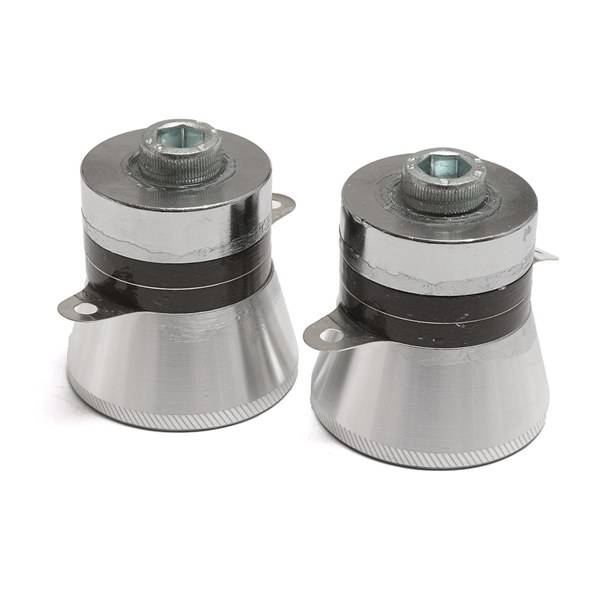

Circuit board and vibration head (ceramic transducer) Wiring instruction:
1. The board can not load electricity;
2. No cleaning solution can not be energized cleaning;
3. Vibration first two tabs, two ceramic middle lug is positive, by the upper and lower metal column is negative, can not be reversed;
4. Transducer film on the ceramic sheet covered with a silver layer for the negative side, the other side of a large two silver layer is positive, the smaller one is negative, when the welding power supply line must be welded to the side there are two silver layer, the other side of the vibration surface, can be pasted in the washing tub; a silver layer ceramic chip is not high temperature, the power cord when welding iron temperature should not exceed 280 degrees, preferably heated iron, the iron temperature is set to 250 degrees .
5. Vibration head larger side (with screw holes) to vibrate surface can be glued to the pelvic floor cleaning, washing pots must be well grounded;
6. Vibration head or transducer ceramic glue application head shock stick firmly to the pelvic floor cleaning;
7. Two vibration head and coupled to the terminals on the circuit board, a board with up to two vibration head, but also with supporting the use of a transducer head;
8. Positive and negative, respectively positive and negative output coupled with the oscillator can not be wrong, we have questions, timely advice to ensure safety;
9. Remember to wash pots and reliable grounding and the power leakage protection switch, to ensure safety.
Package includes:
1 x Power Driver
2 x Transducer
