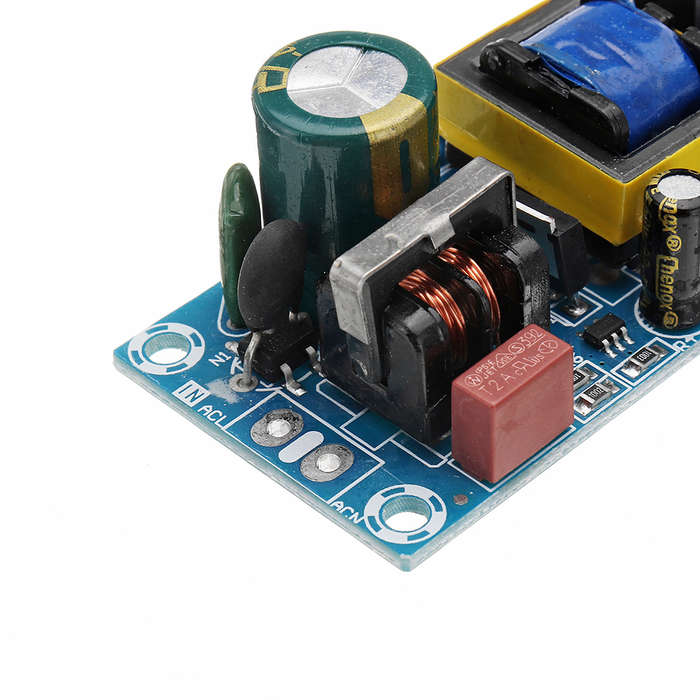

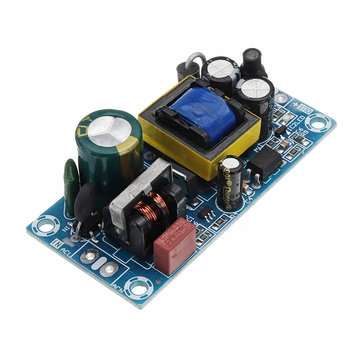

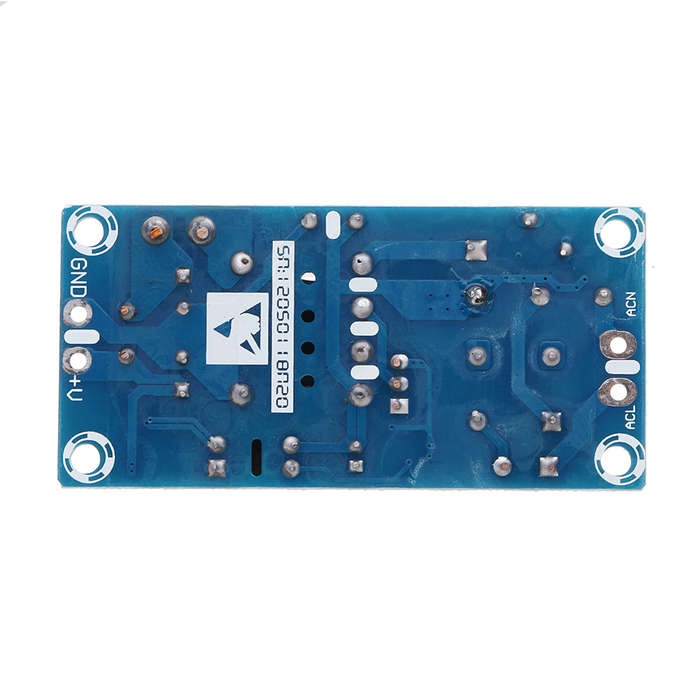

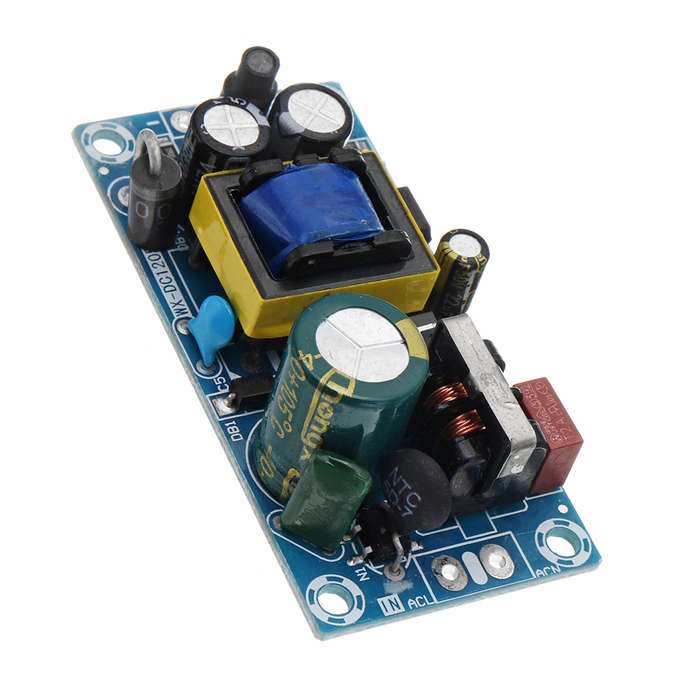

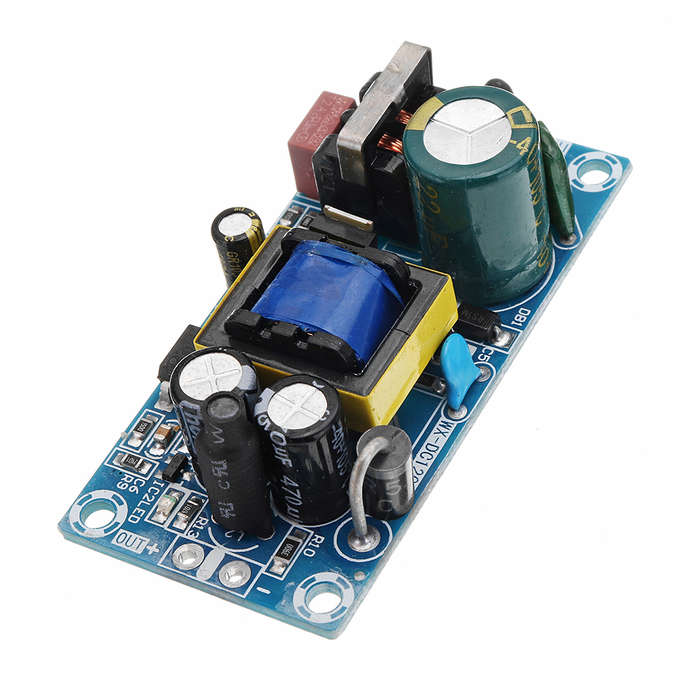

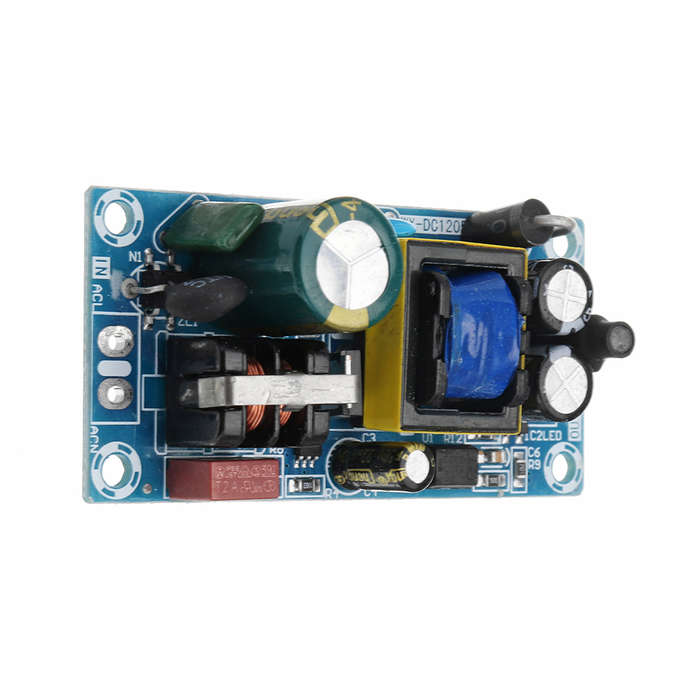

AC-DC 5V 2A Switching Power Supply Board Low Ripple Power Supply Board 10W Switching Module

New

20 available

R311.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4028

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654091371

Features :

Easy installation, input and output can solder 5.08 terminals or use pins. There is a fixed installation hole at the four corners. The screw is required to prevent movement. The diameter of the fixed hole is 3.0mm. Universal input voltage: 85-264V AC or 110-370V DC. Complete isolation of output and input high and low voltage. Overload protection, short circuit protection, temperature protection. Specification:

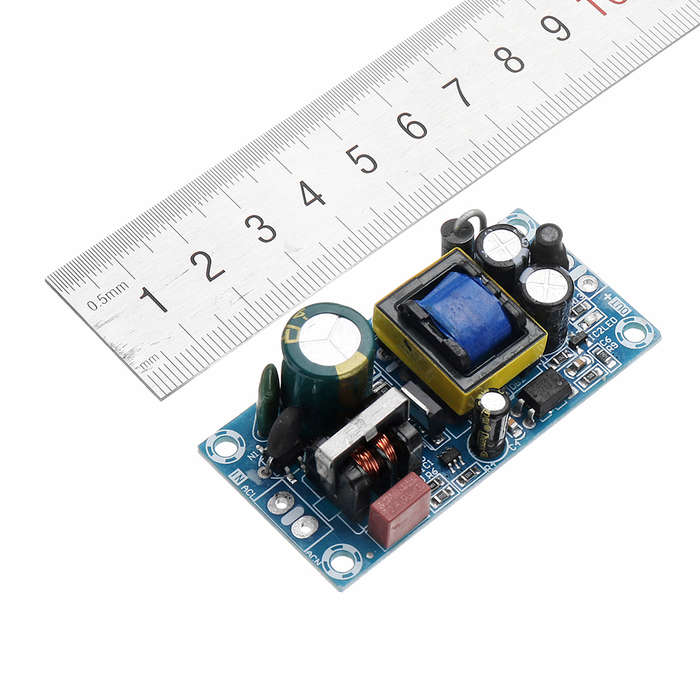

Power protection: overload, short circuit and over temperature protection. Voltage input: 85-264V AC/110-370V DC Frequency input: 47-63HZ Output voltage: DC 5V Output current: rated 2A/ peak 3A Output power: 10W Overall size: long 63.7mm* wide 30.8mm* high 20mm Package Included:
1 xAC-DC 5V 2A Switching Power Supply Board
