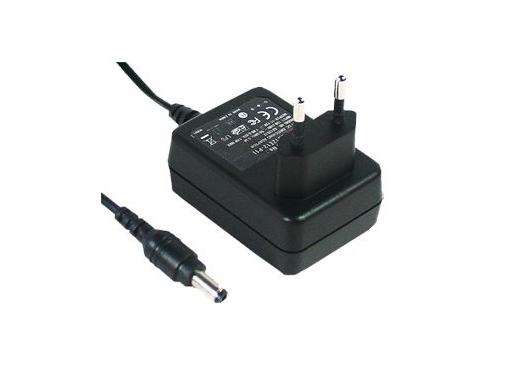

Used to provide external power for USB 5v devices. Please check diameter on DC input and compare with adapter.
SPECIAL FEATURES
· Universal AC input
· Low output ripple
· Short circuit protection
· High efficiency
· Built-in EMI filter
· Over load protection
INPUT
· Input range : 85 ~ 264 VAC
· Input frequency : 47 ~ 63 Hz
· Inrush current : 15A at 115VAC; 30A at 230VAC; cold start at 25
· Input current : 1.5A Max
· Leakage current : 0.5 mA at 50/60 Hz 264VAC input
OUTPUT
· Rated output power : 10.0 Watts
· Output voltage : 5V± 4% (4.80V Voutput 5.30V)
· Output current : 2.0 A
· DC Connector : 5.5mm OD & 2.1mm ID
· Output load efficiency 80% at 100VAC full load; 80% at 264VAC full load
· Max power : 10.0 Watts for convection
· Adjustment range fixed
· Hold-up time 30 ms at full load and 230 VAC nominal line
· OL protection 96% to 104% above peak rating
· Ripple & noise 200mV at rated load
· Short current 100mA at 250 VAC rated load
ISOLATION
· Input to output AC3.0 KV/1 min.
SAFETY APPROVAL
· UL CCC CE
ENVIRONMENTAL
· Operating temp : 0 to 50 ambient derate each output at 4.0% per degree from 50 to 60
· Storage temp. - 40 to 85
· Operating humidity 5% to 95% (non-condensing)
· MTBF 100,000 hours at full load and 25 ambient conditions (demonstrated)
