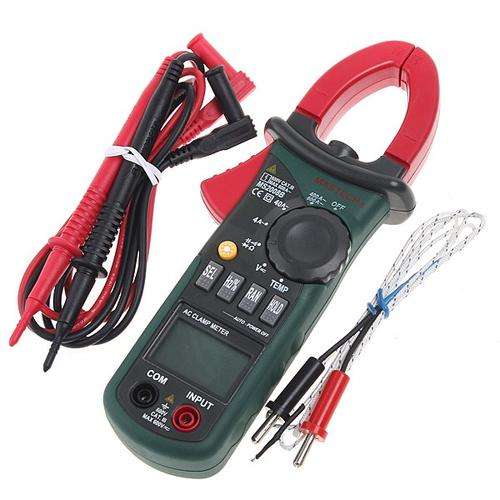

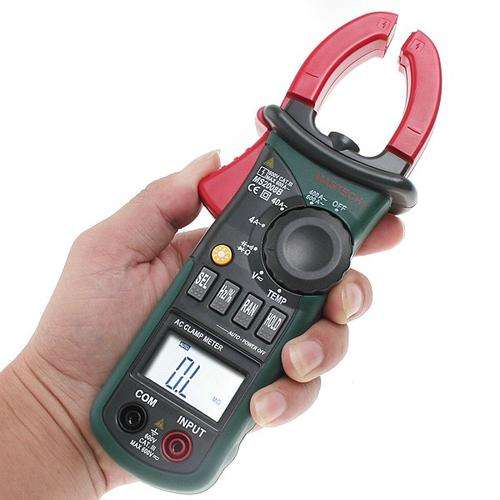

AC/DC Light Temp Frequency Digtal Clamp Meter
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
This clamp meter allows properties of the electrical current test, like measure AC current, AC/DC voltage, resistance, capacitance, temperature, frequency, diode and circuit, etc.
Features:
Professional AC digital clamp meter.
It is designed according to IEC1010–1 and IEC1010–2–032 concerning safety requirements.
Use for measure AC current, AC/DC voltage, resistance, capacitance,temperature, frequency, diode and circuit, etc.

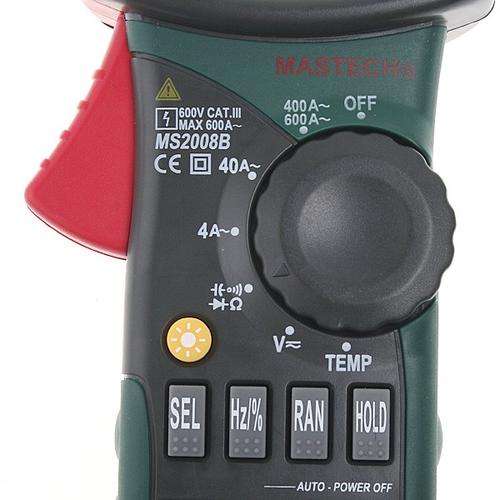

Auto/Manual range.
Continuity test, duty cycle test & diode test.
With a LCD display to show datas.
Clamp lighting & back light.
Data can be hold.
Display is 3999 counts.
Safe and professional.
Specifications:
Display: 3999 counts
DCV: 400m/4V/40V/400V/600±0.8%
ACV: 400mV±0.8%,4V/40V/400V/600V±1.0%
ACA: 4A/40A/400A/600A±2.0%
Resistance: 400ω/4kω/40kω/400kω/4Mω±1.2%, 40Mω±2.0%
CAP: 50nF/500nF/5μF/50μF/100μF±4.0%
Frequency: 50Hz/500Hz/5000Hz/50kHz/100kHz±1.0%
Temperature: -20°C to 750°C +/-2.0%

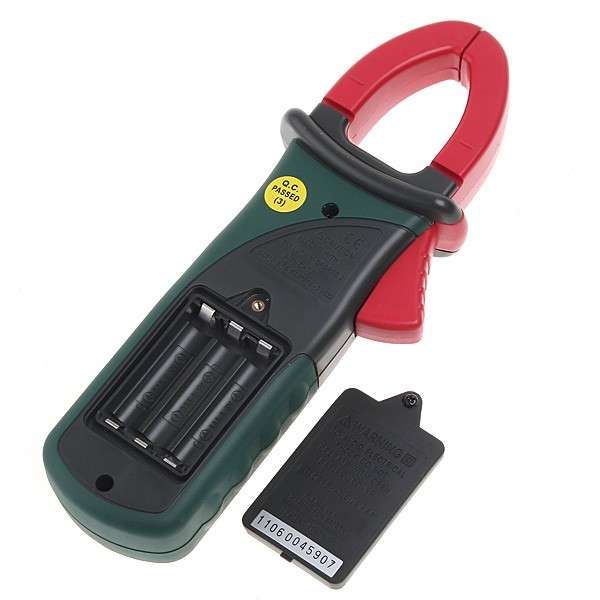

Power: 3 * AAA Battery (Not included)
Item size: 20.8 * 7.8 * 3.5cm
