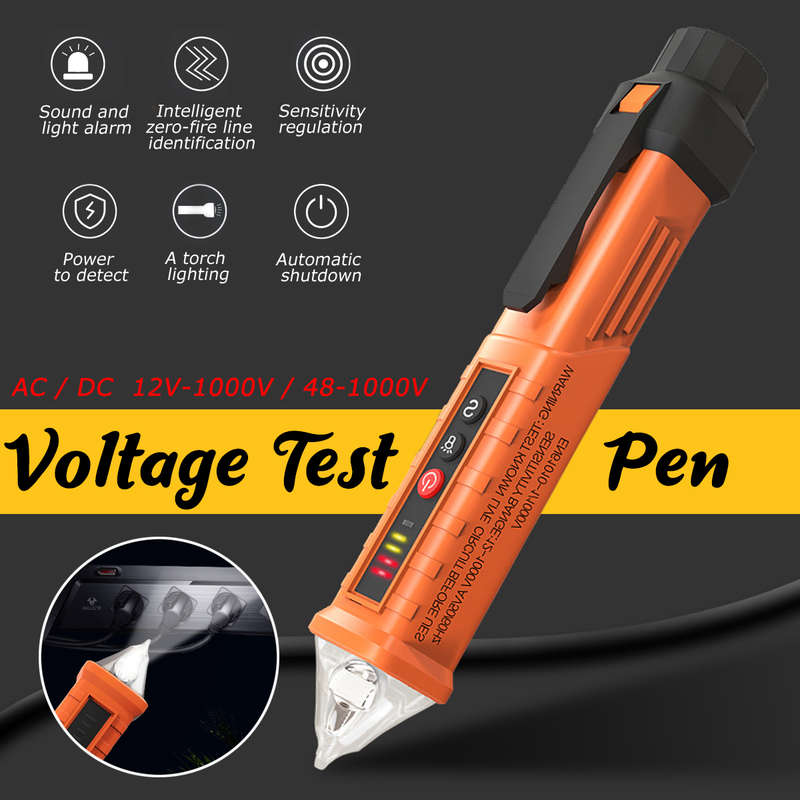

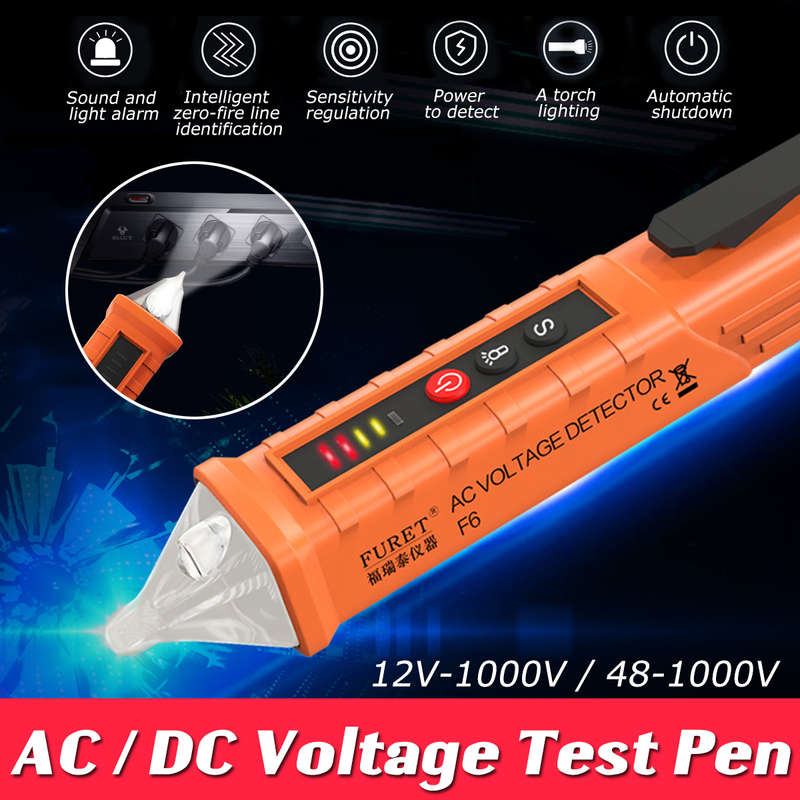

Description: AC / DC voltage test pen 12V-1000V / 48-1000V voltage sensitivity pen detector

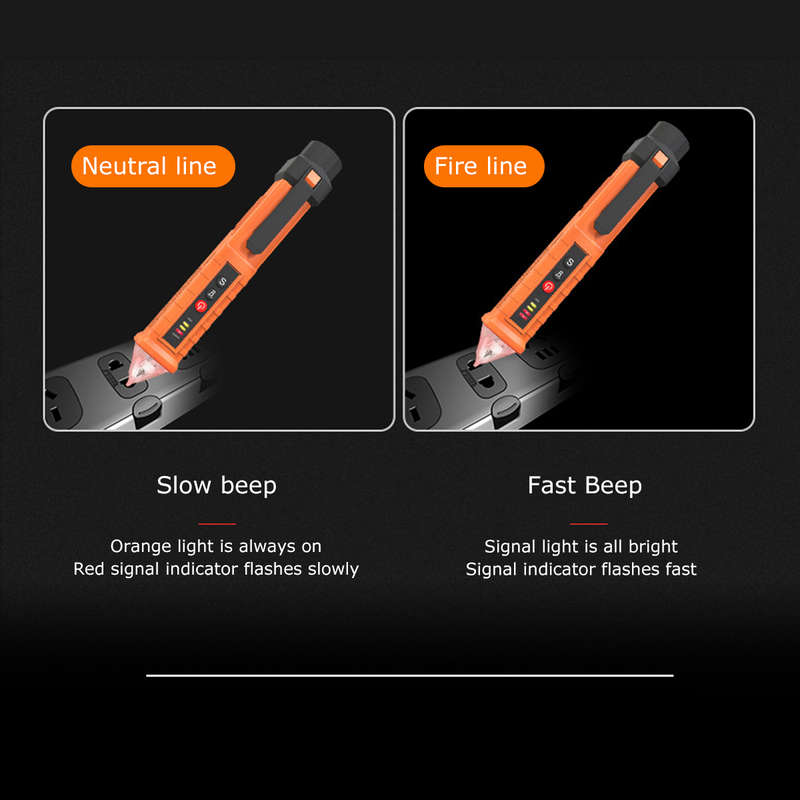

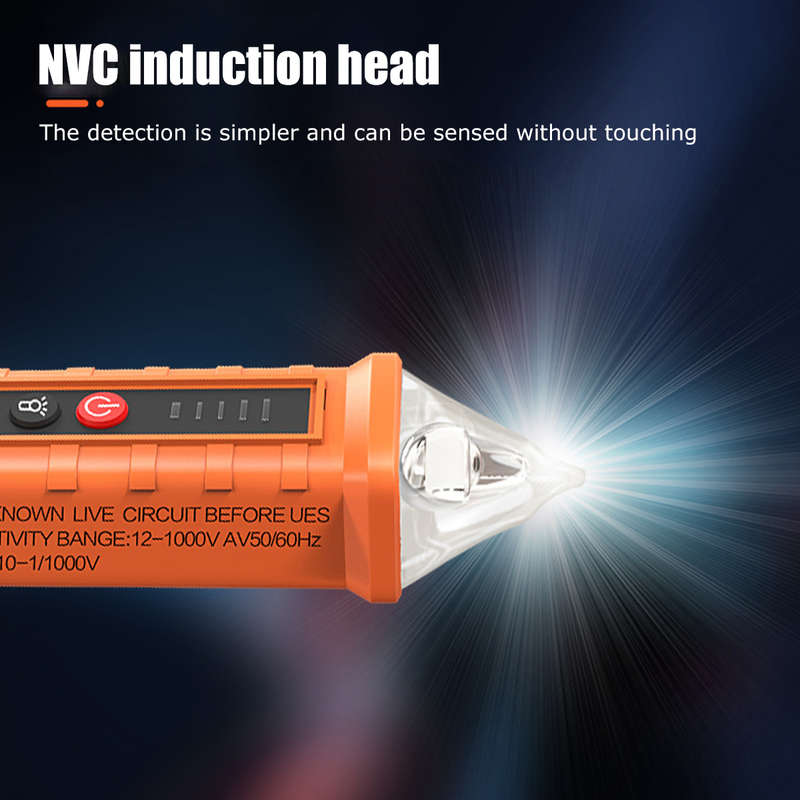

Feature: No contact, built-in sensor, LED light flashes and sounds when a nearby AC voltage is detected Automatic shut-down: When the test pen does not receive any operation within 2 minutes and no AC voltage is detected, it will automatically turn off. With wire or neutral line sound and light recognition: 1. Live line test: Connect the sensing end of the test pen to the object to be tested, the LED light is fully illuminated,
and the buzzer emits a quick alarm indicating that the test is a live test line. 2. Neutral line test: The test pen test head is close to the object to be tested, the orange light is always on, the red light flashes slowly,
and the buzzer sounds a slow alarm, indicating that the test line is a neutral line.
How to find a breakpoint 1. Connect one of the wires to the live wire and connect the other wires to zero or ground to form a loop. 2. Open the test pen and measure from the cable to the opposite wire. 3. When measuring a normal cable, the battery indicator lights up red and beeps.
When the test pen's light is off and there is no sound, the position is the breakpoint position.

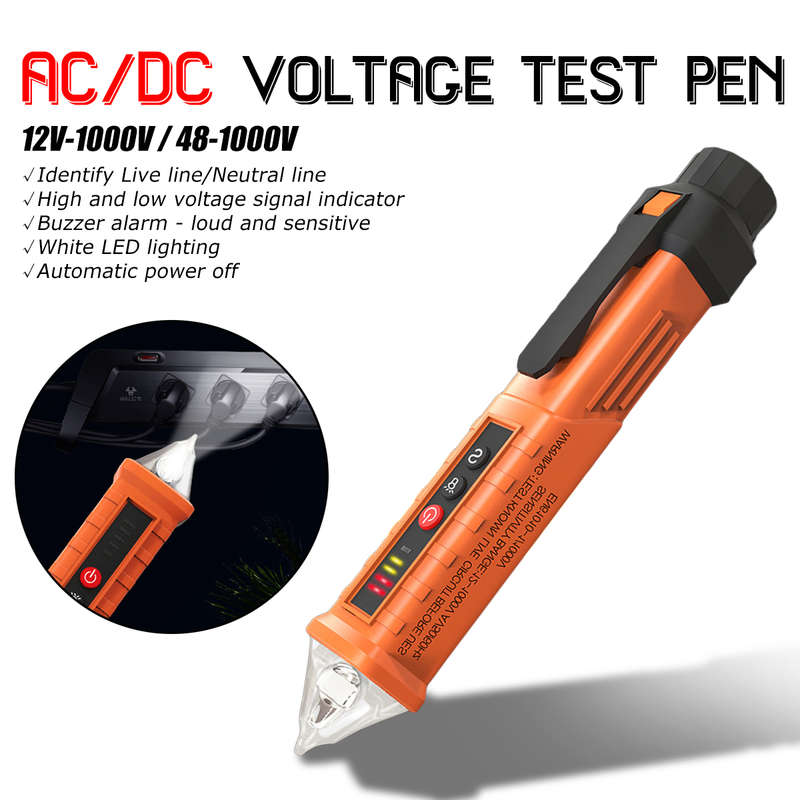

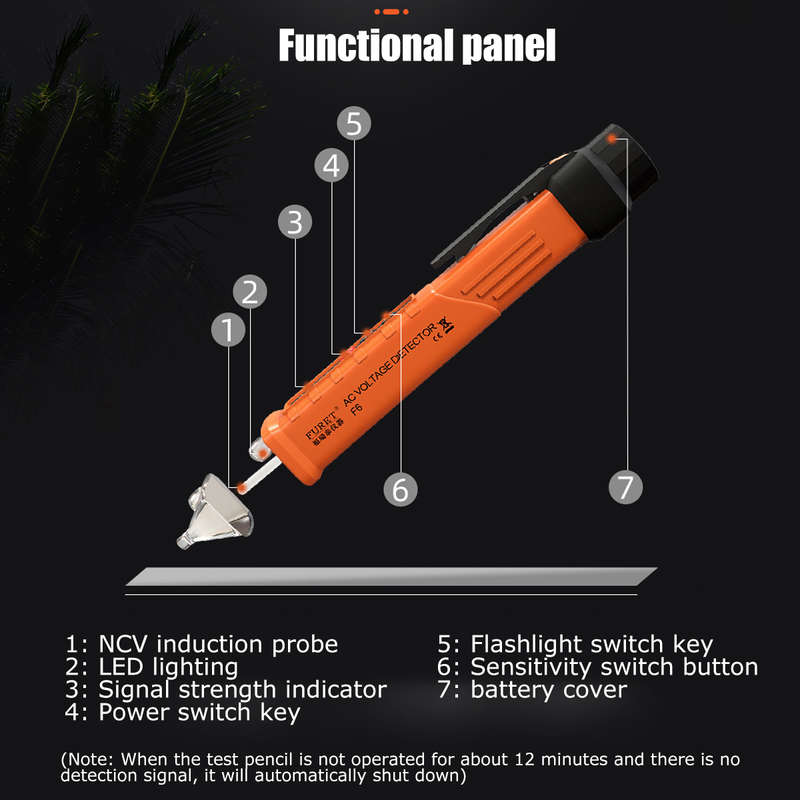

The product features more comprehensive: Extensive measurement Used to test AC voltage Identify Live line/Neutral line audible alarm High and low voltage signal indicator Buzzer alarm - loud and sensitive White LED lighting - energy saving and convenient Automatic power off Open the key NCV sensor sensitivity is high

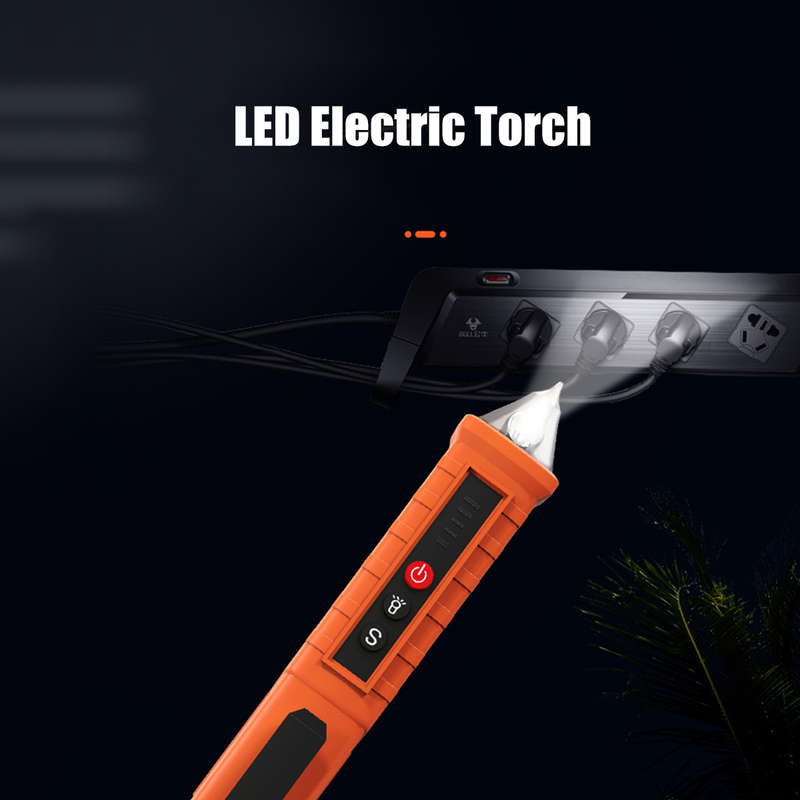

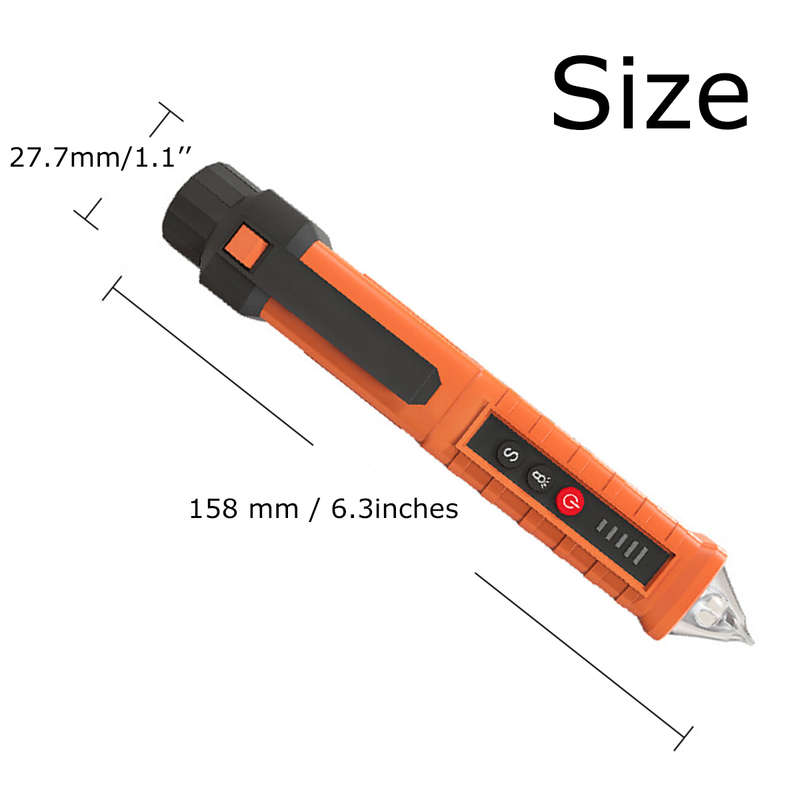

Specification: Product size: 158 * 21 * 27.7mm / 6.3 * 0.83 * 1.1 inches Product color: black / yellow AC voltage: 12V-1000V / 48-1000V Frequency: 50Hz / 60Hz Alarm mode: sound and light alarm Electric Torch: LED Lighting Low-voltage indicator: Yes Power: 2 x 1.5V AAA battery (not included) Security level: CE CAT. III 1000V / CAT. IV 600V Usage temperature: 0-40ﾣC Storage temperature: -10-50 ﾣC Atitude: <2000 meters Safety compliance: CAT.III 1000V CAT.IV 600V; CE
Package Included: 1 X Non-contact voltage tester compact pen 1 X User Manual
