Description : AC Digital Ammeter Voltmeter LCD Panel Amp Volt Voltage Meter 80-300V 100A BlackDigital AC voltage meter is to be measured at the same time show the AC voltage and AC current in the same instrument. Instrument does not require an additional power supply and AC transformers work (with a small precision instrument transformers), the measurement is very convenient and accurate.
Widely used in audio amplifiers, power distribution box, distribution cabinet, regulators, teaching aids, household small distribution box and so on.
Feature : Dual measurement of AC voltage, AC current with AC current transformer.

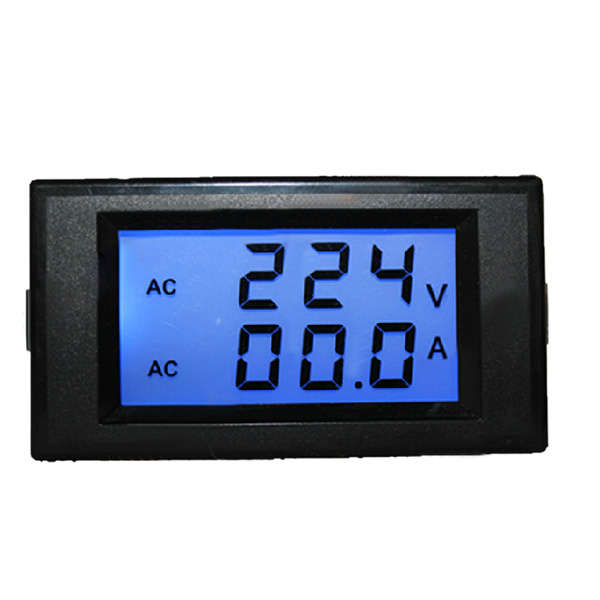

Display the AC voltage and current simultaneously by LCD with blue backlight.
Including one independent small precise current transformer, you can lengthen the cable.
Easy measurement, just connect to power and lead the wire through the current transformer.
Wide measurement voltage and current range.
Specification : Measurement range : AC 80-300V 0-100.0A
Power supply : < 0.2VA
Installation : Embedded installation
Measurement speed : about 2 times per second
Display type : LCD with blue backlight
Resolutions : ±1%FS+2 Digit (According to our actual measurement, there is about 0.1A/ 1V deviation of the measuring current/ voltage)
Operating Temperature : -10¿¿¿-65¿¿¿
Operating Humidity : 35-85% RH
Display Size : Approx. 5.1x2.6cm/ 2.01x1.02"
Product Size : Approx. 8.8x4.3x3.3cm/ 3.46x1.69x1.30"
Note : Please firstly connect the current transformer with meter. Secondly connect the meter with AC 80-300V wire. After the connection, please do not touch any part of the back of the meter to avoid the electric shock hazard
Misconnection between voltage input and current transformer will lead damage to the meter. Please make sure the voltage and current transformer are connected correctly

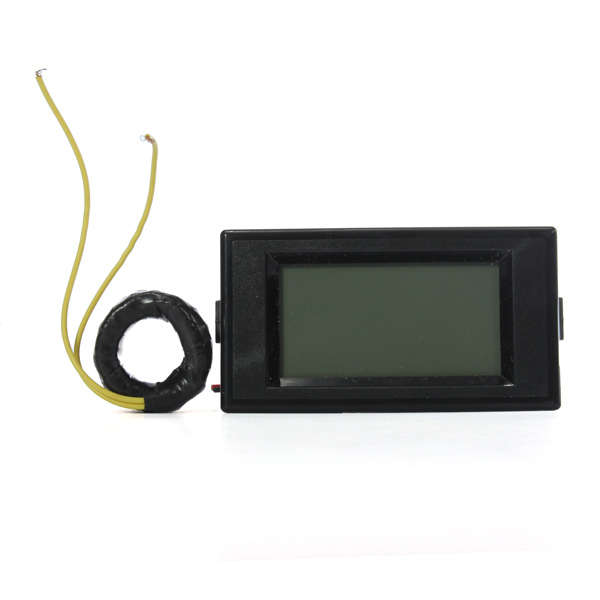

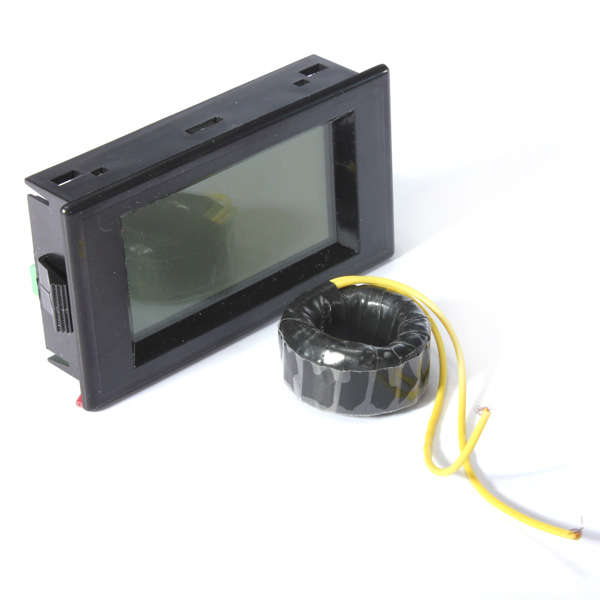

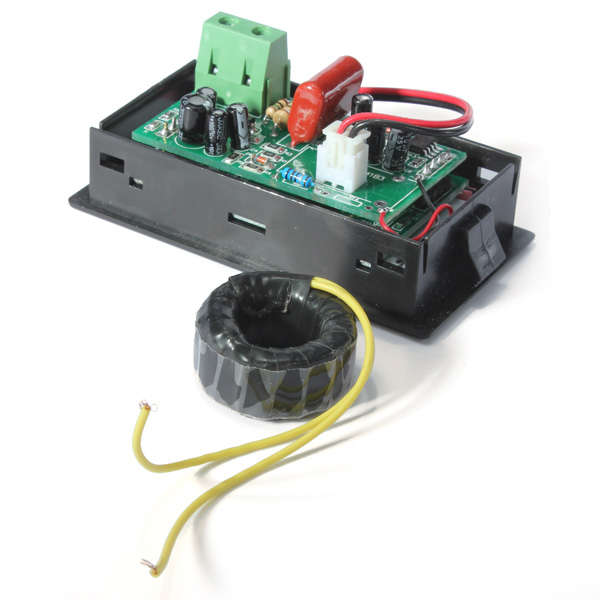

Package Included : 1x Digital Ammeter Voltmeter

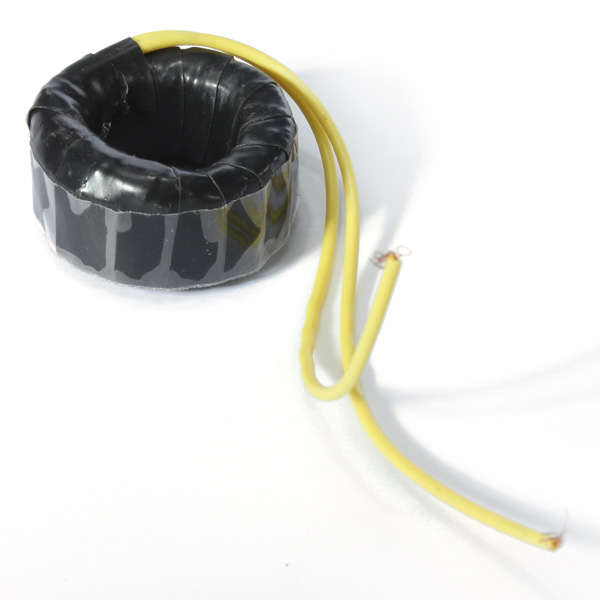

1x Current Transformer

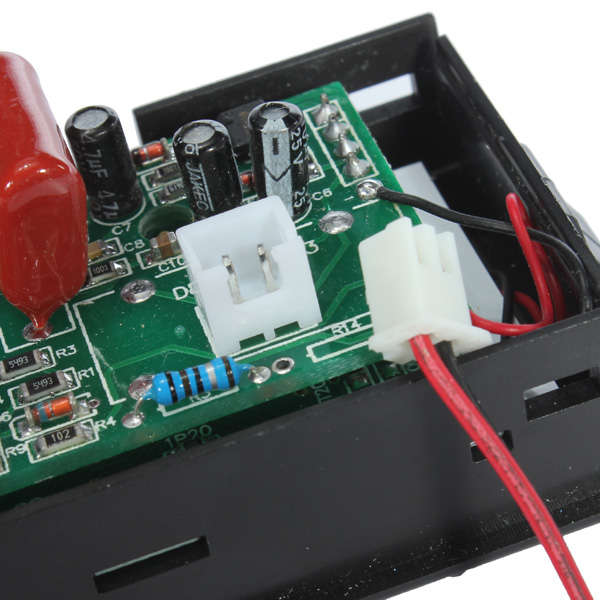

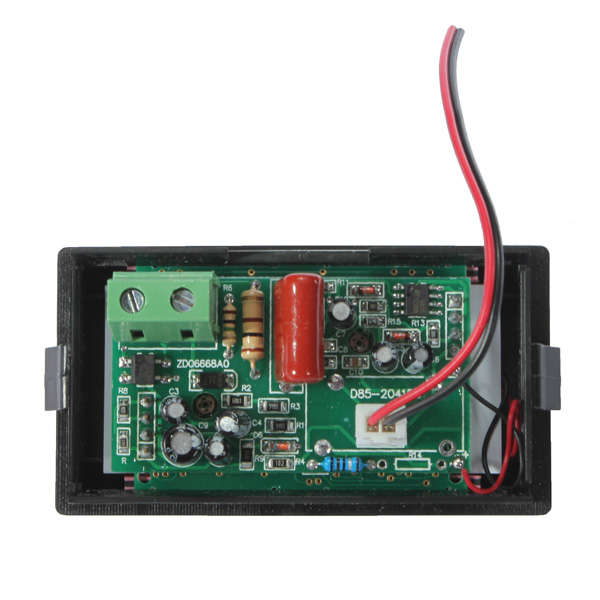

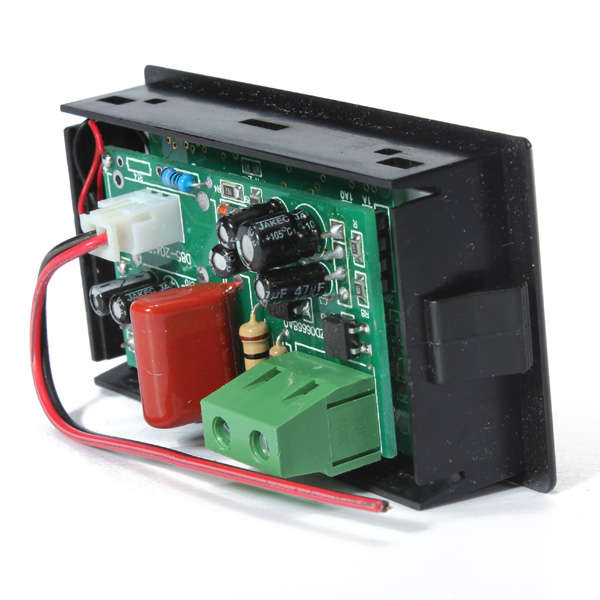

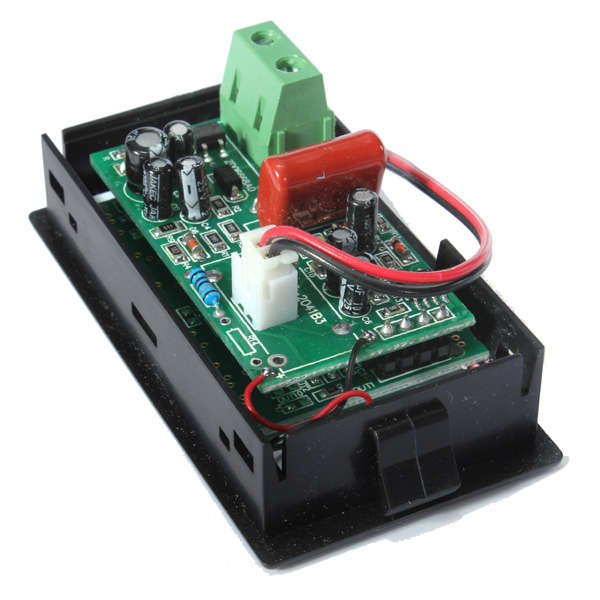

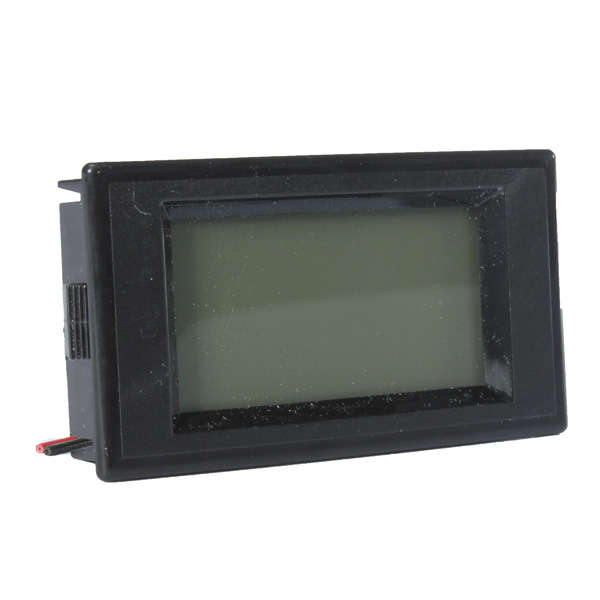

Details pictures :
