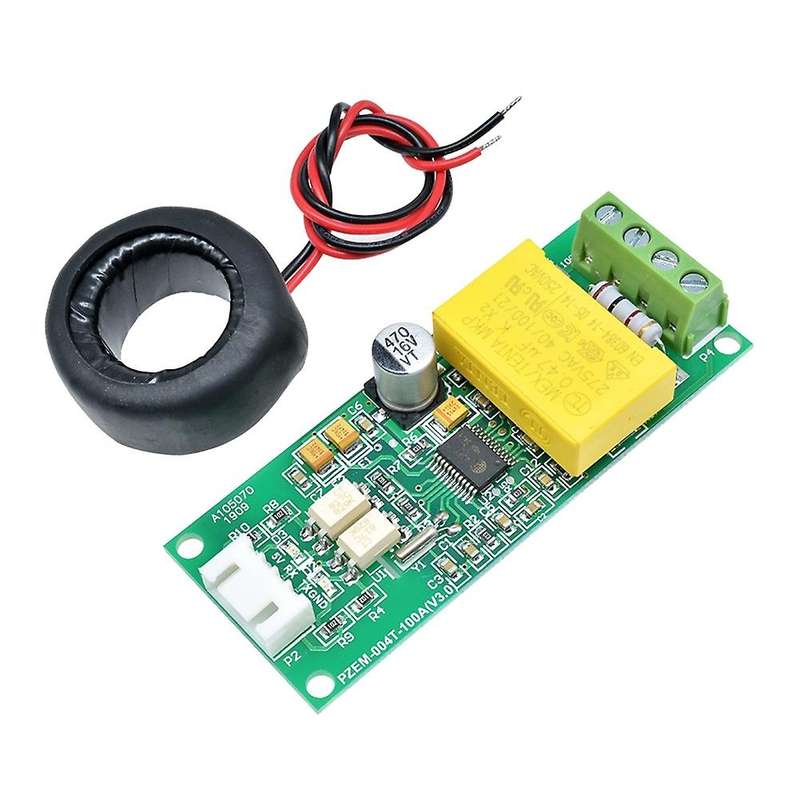

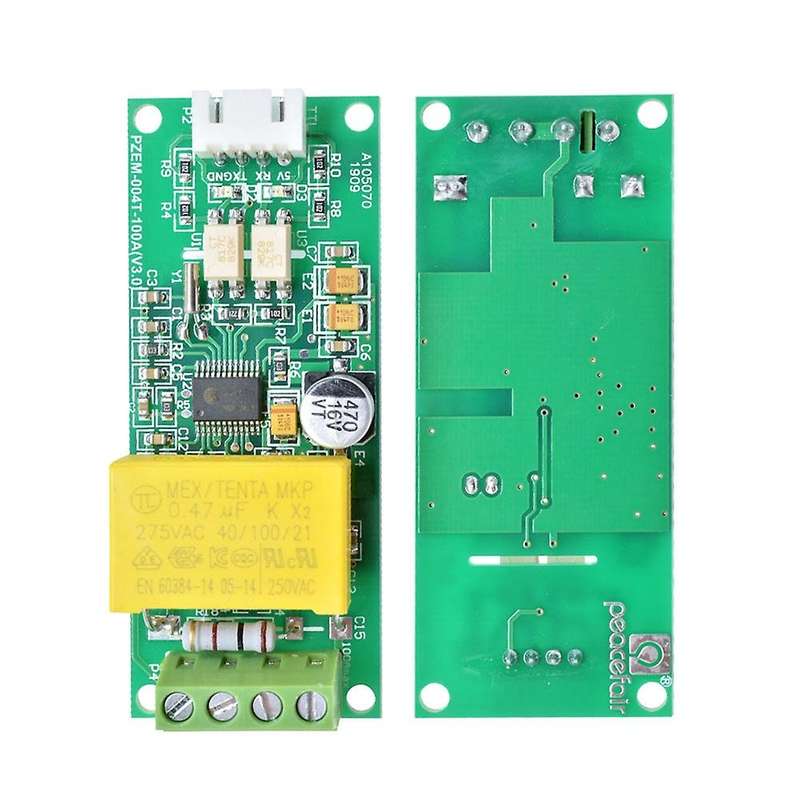

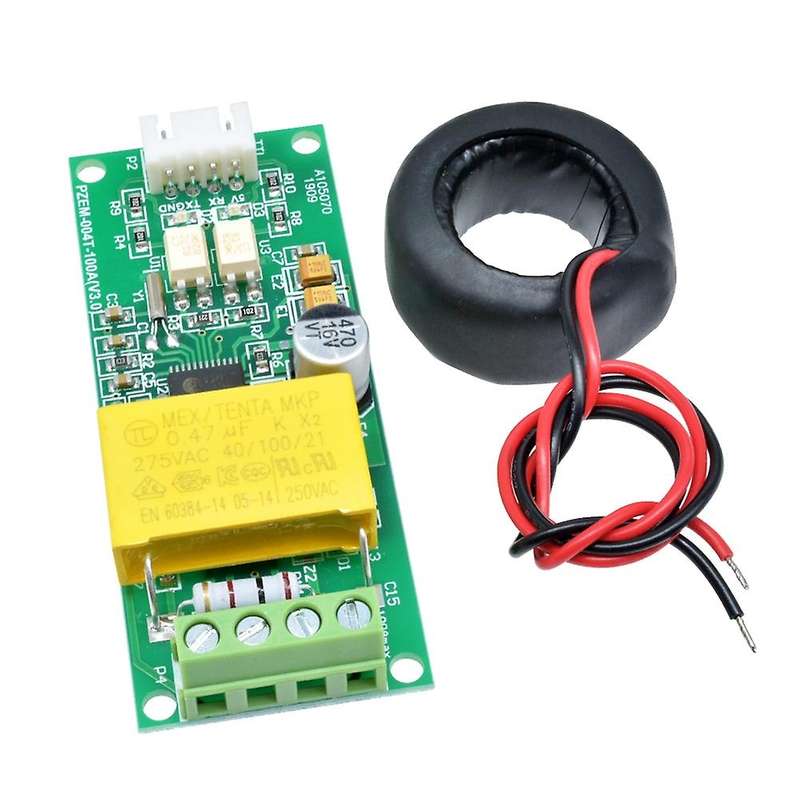

Ac Digital Multifunction Meter Watt Power Volt Amp Current Test Module Pzem-004t for Ttl Com2/com3/

1. electrical parameter measurement function (voltage, current, active power).2. The power button clear function.3. Power-down data storage function (cumulative power down before saving).4. PC PC display function (display voltage, current, active power).5. The serial communication function (comes with TTL serial interface, via terminals communicate with the adapter plate, read, and set the parameters).front display and keyUIPC display window composed of four, used to display the voltage, current, power, power parameters, as shown in FIG.Display Format1. Power: measurement range 0 - 22kW0 - 10kW within the display format of 0.000 to 9.999;Within 10 - 22kW display format 10.00 - 22.00.2. Power: measurement range 0 - 9999kWh0 - 10kWh within the display format of 0.000 to 9.999;10 - 100kWh within the display format of 10.00 to 99.99;100 - 1000kWh within the display format of 100.0 to 999.9;1000 - 9999kWh and above the display format from 1000 to 9999.3. Voltage: Test Range 80 - 260VACDisplay Format 110.0 - 220.0.4. Current: measurement range 0 - 100ADisplay Format 00.00 to 99.99.buttonA built-in button on the panel, used to make electricity clear function, as shown in Figure 2.Electricity clear : Press ZERO key five seconds, then release the button! Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.Colour:greenMaterial:plasticPackage Contents:1x Digital Multi-function Meter1x CoilOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
