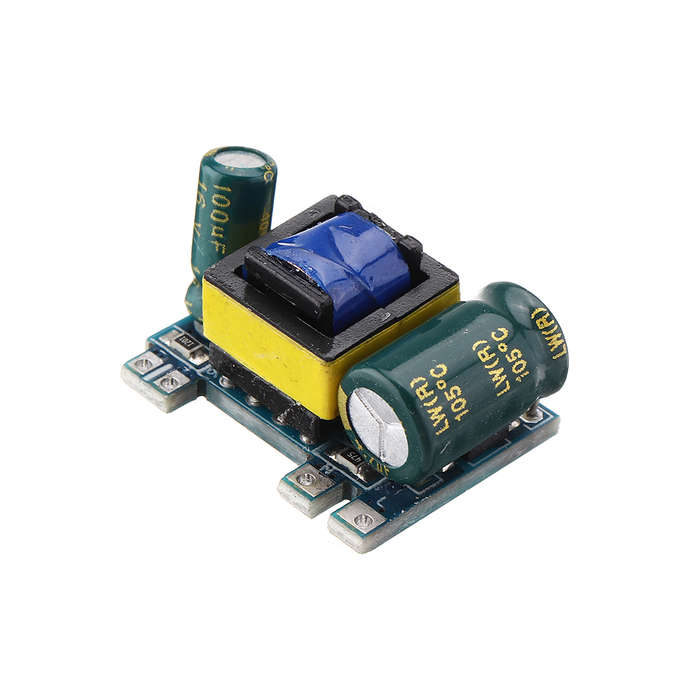

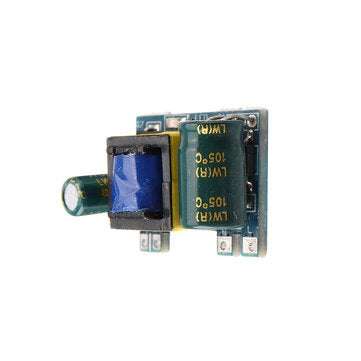

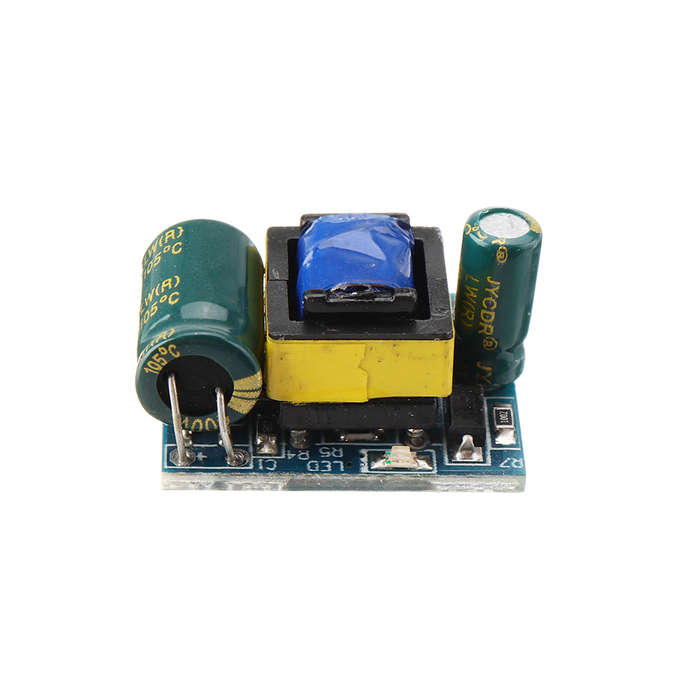

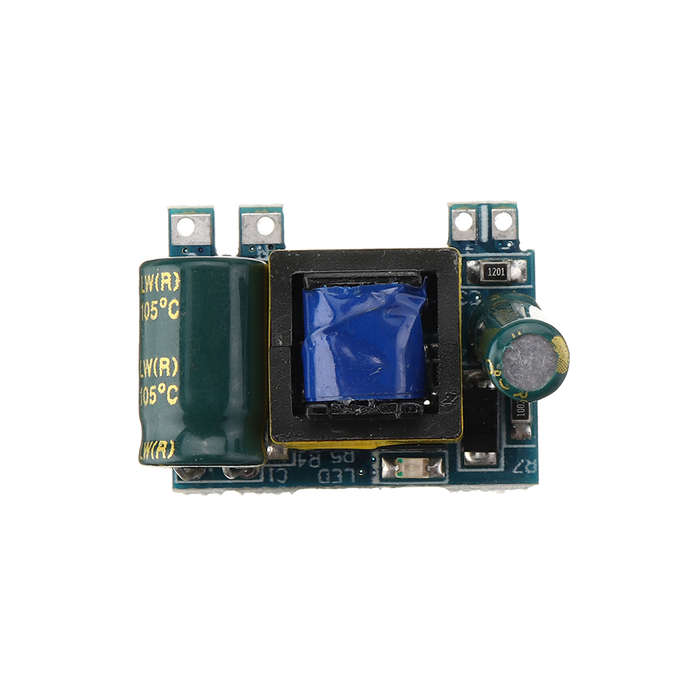

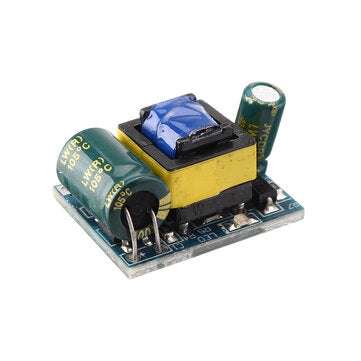

AC to DC 12V 300mA 3.5W Isolated Switching Power Supply Module Buck Regulator Step Down Power Module

New

20 available

R261.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4030

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654091195

Specifications: Input voltage range: AC50V-277V DC70V-390V No-load power: <0.05W Full load power: <4W Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces. Output voltage: 12V -0.05+0.3V no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 100mV Output current: 12V0mA-300mA, enters constant current mode when fully loaded Test resistance: 40 ohms (12V) for 12V Output indicator: green light Output power: 3.5W, efficiency is about 80% Output protection: overvoltage, overcurrent, overtemperature, overcurrent, short circuit protection, etc. Overall height: 13.5MM Operating temperature: -20 a to 70 a, (not recommended for use above 70a), output filter high quality solid capacitor Package Included: 1 x AC to DC 12V 300mA 3.5W Isolated Switching Power Supply Module
