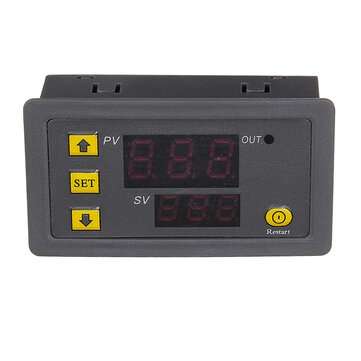

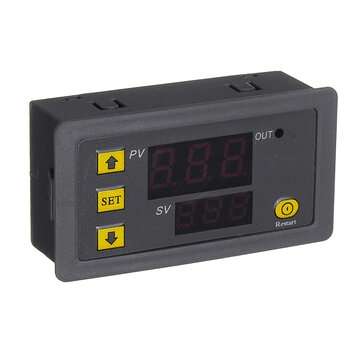

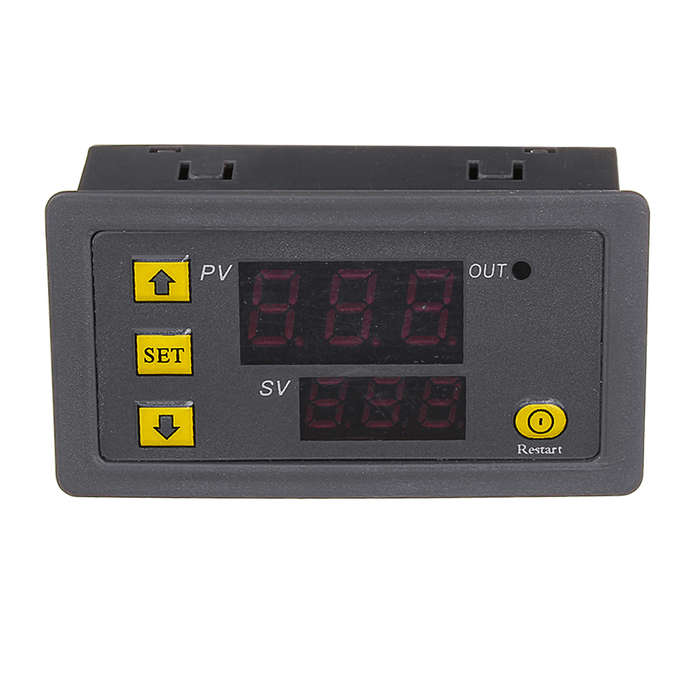

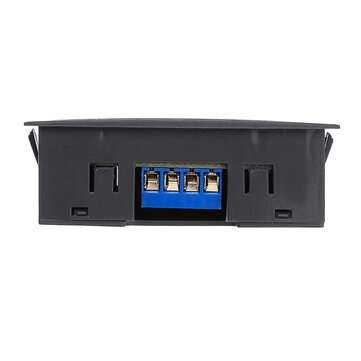

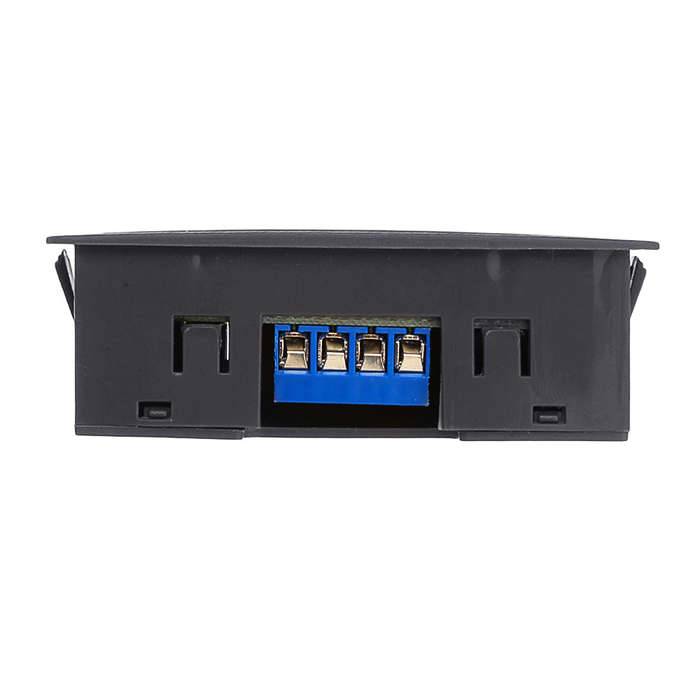

AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module

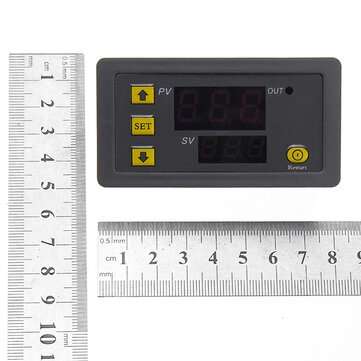

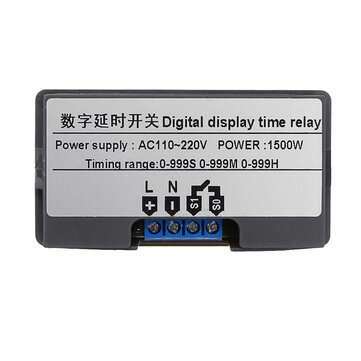

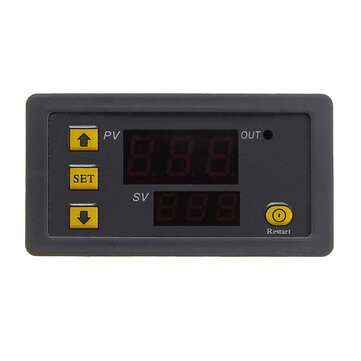

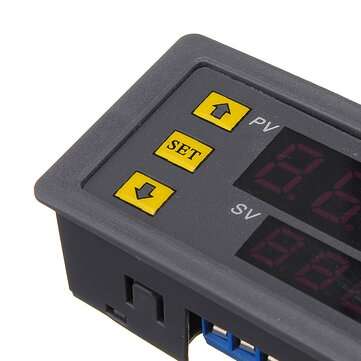

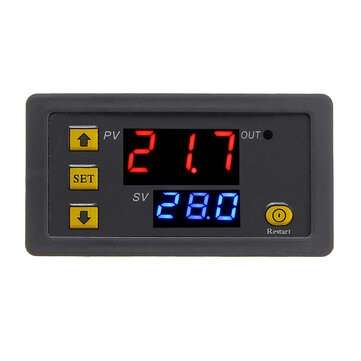

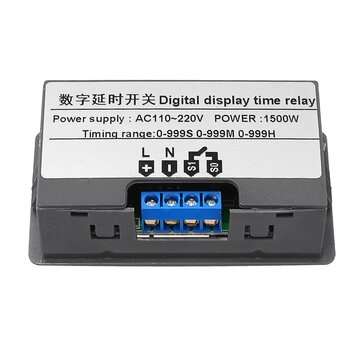

Specifications: Timing range: 0-999s 0-999m 0-999h Supply voltage: AC110V-220V Relay:20A Working current:10A(max) Power:500W(max) Size :79*26*43mm Hole size:72*40mm Instructions: Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s. Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s . Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-. P0--0: Timing time mode : 0---999s. P0--1: Timing time mode : 0---999min. P0--2: Timing time mode : 0---999h. P1--0: The relay will connect after you delay the T1 time . P1--1: The relay will disconnect after you delay the T1 time. P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish. P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish. P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic. P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic. Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows: T1 set time 10, T2 set time 20 P0 -- 0 (T1 time range is seconds) P1--5 (timer work mode)
Package Included: 1 x Digital Display Time Relay
