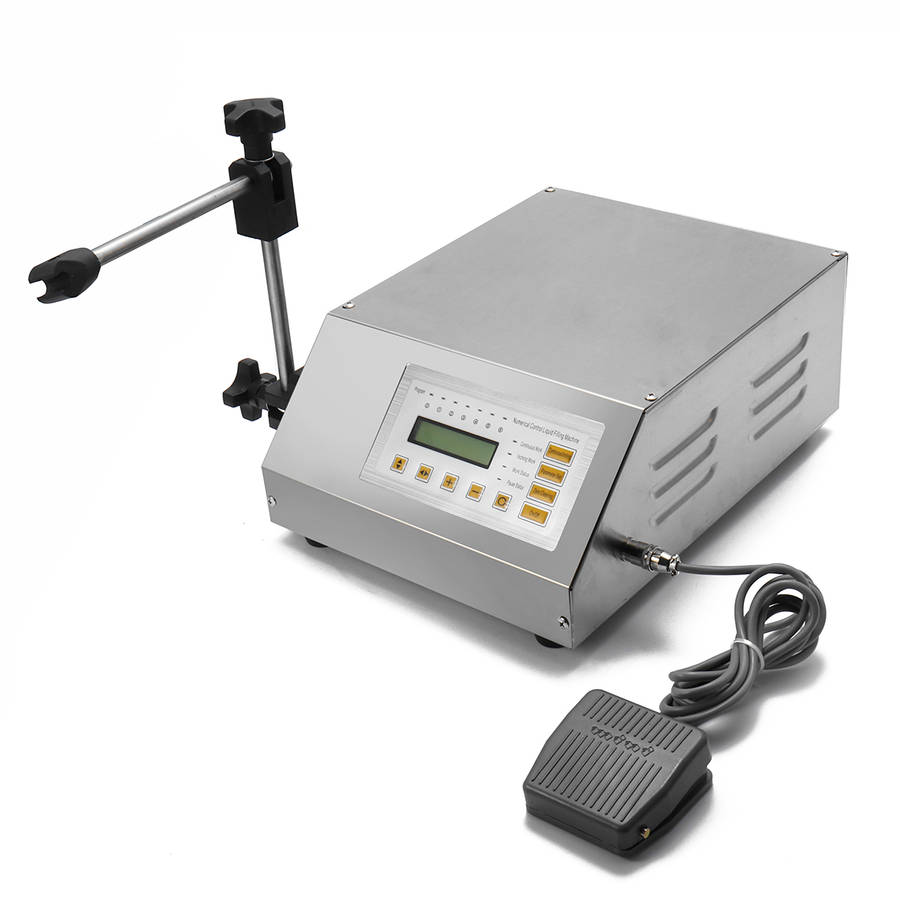

Name: AC180V-260V 300W Digital Control Pumps Drink Water Liquid Filling Machine GFK160
SKU: 1273271
Price: 3915.00 ZAR
Availability: SoldOut

AC180V-260V 300W Digital Control Pumps Drink Water Liquid Filling Machine GFK160

30 were available / new

Indicative market price: R7,599.00

R3,915.00

48% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1273271

Bob Shop ID

368302750

Package weight: 2.35 kg
Specification:
Voltage:AC180V-260V
Power:300W

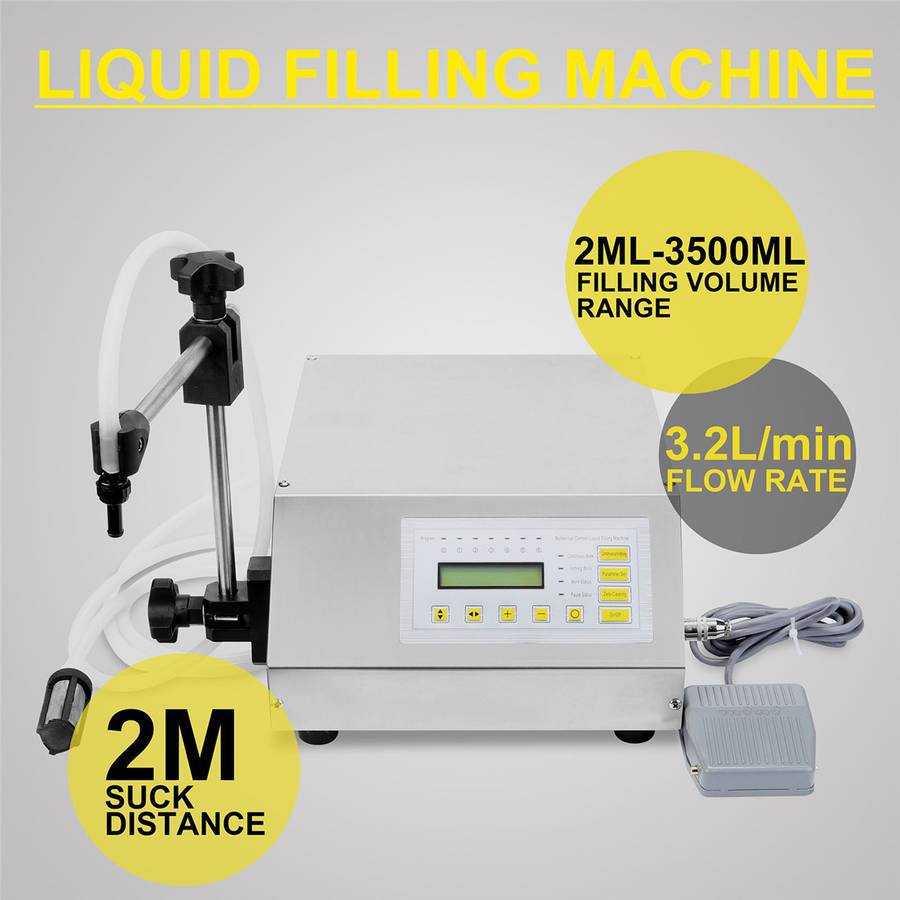

Max Flow Rate:3.2L/min
Max Absorption Distance:2m
Repeat Error:<0.5%
Package Dimension:400×380×200(mm)
Machine Weight:5.5kg / 12.1Lbs
Filling Volume Range:2ml-3500ml
Anti-dripping Function:Available
Memory Function without Electricity:Available

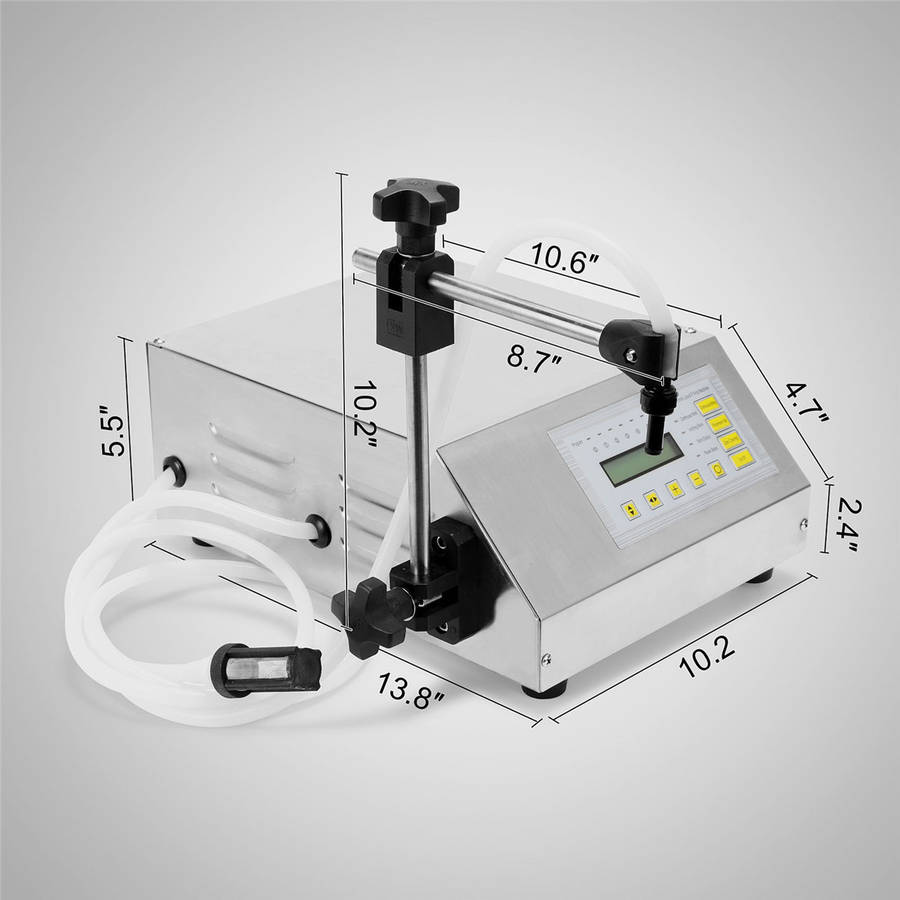

Machine Size:350 X 270 X 150(mm)
Diameter of Filling Nozzle:Φ 8mm
Suitable Soft Tube:17# (interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)
Note:Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.
Package included:
- 1xWater Liquid Filling Machine

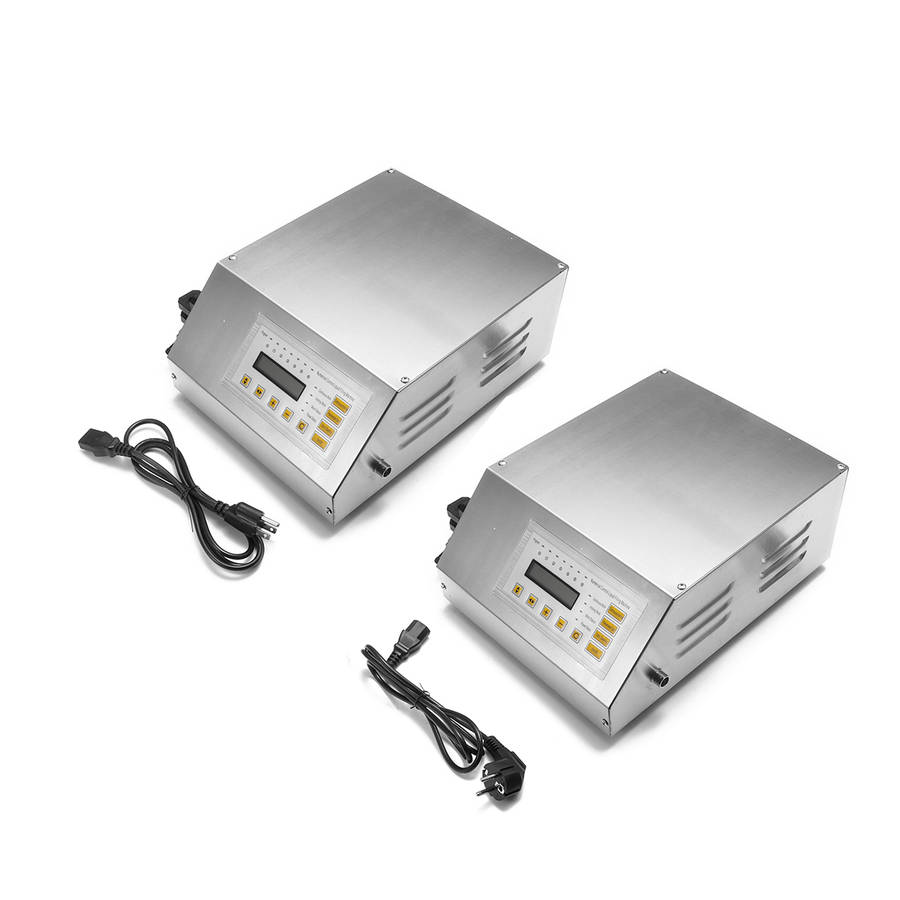

- 1x Power cord
- 1x Pedal Switch
- 1x Filling Stand

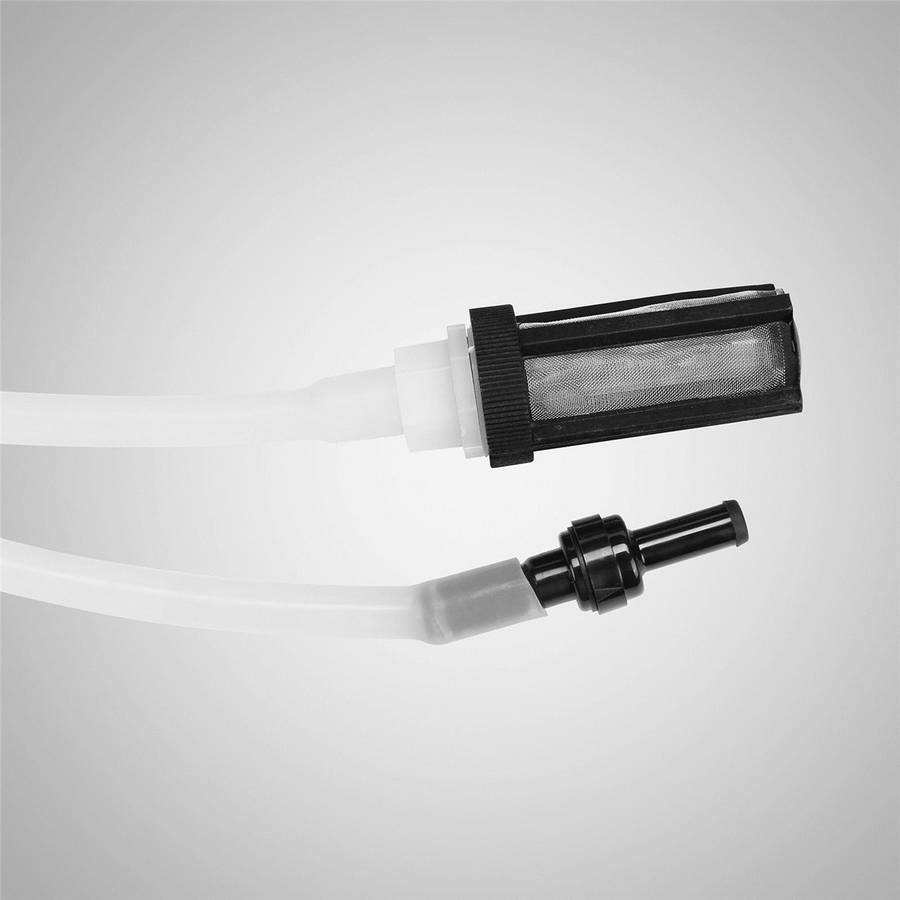

- 1x Filter
- 1x Filling Nozzle
- 1x Screwdriver
- 1x Inner hexagonal wrench
- 1x Manual Book
- 1x Guarantee receipt
More details:

Feature:
This Updated GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material. There is no mechanical metal part or abrasion inside the pump.
This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc.
Liquid suitable: low viscous liquid like water, wine, solutions etc.
Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.
The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.
How to use:
1. Installation

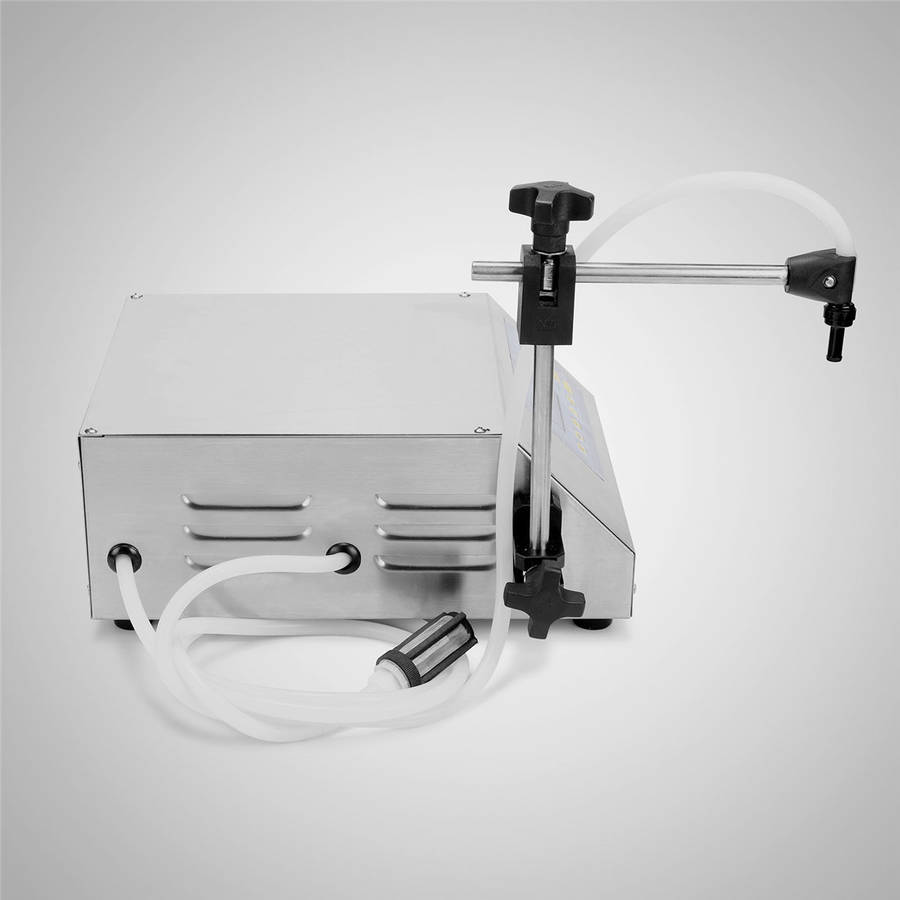

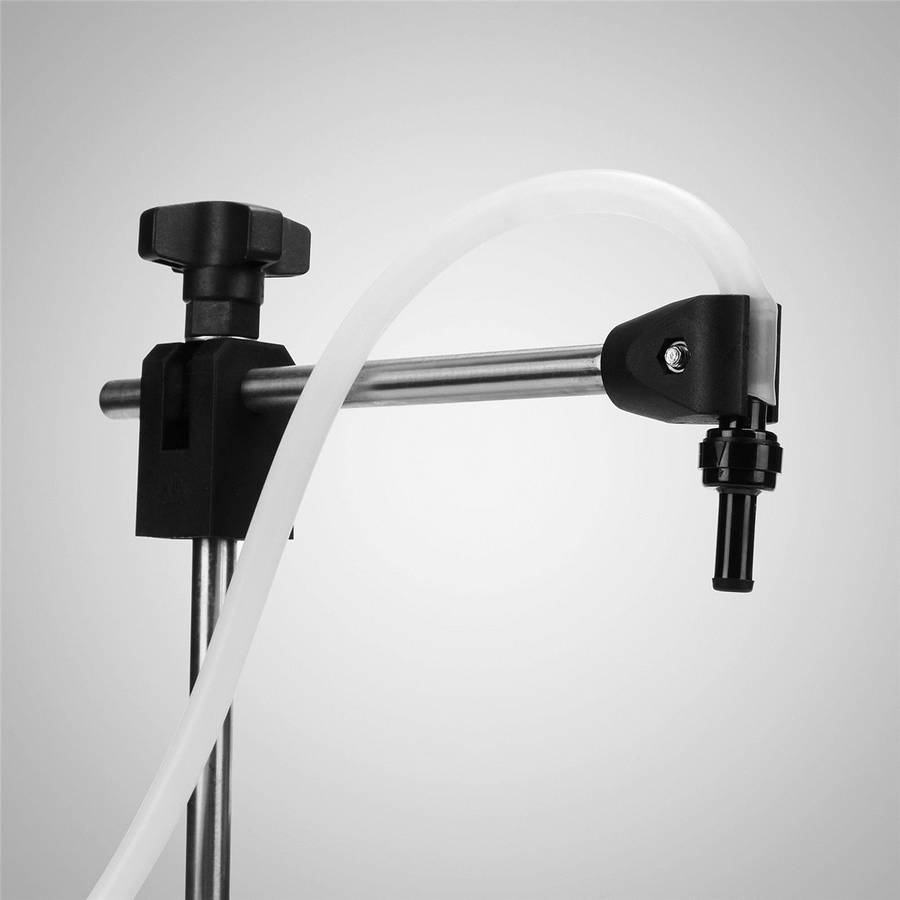

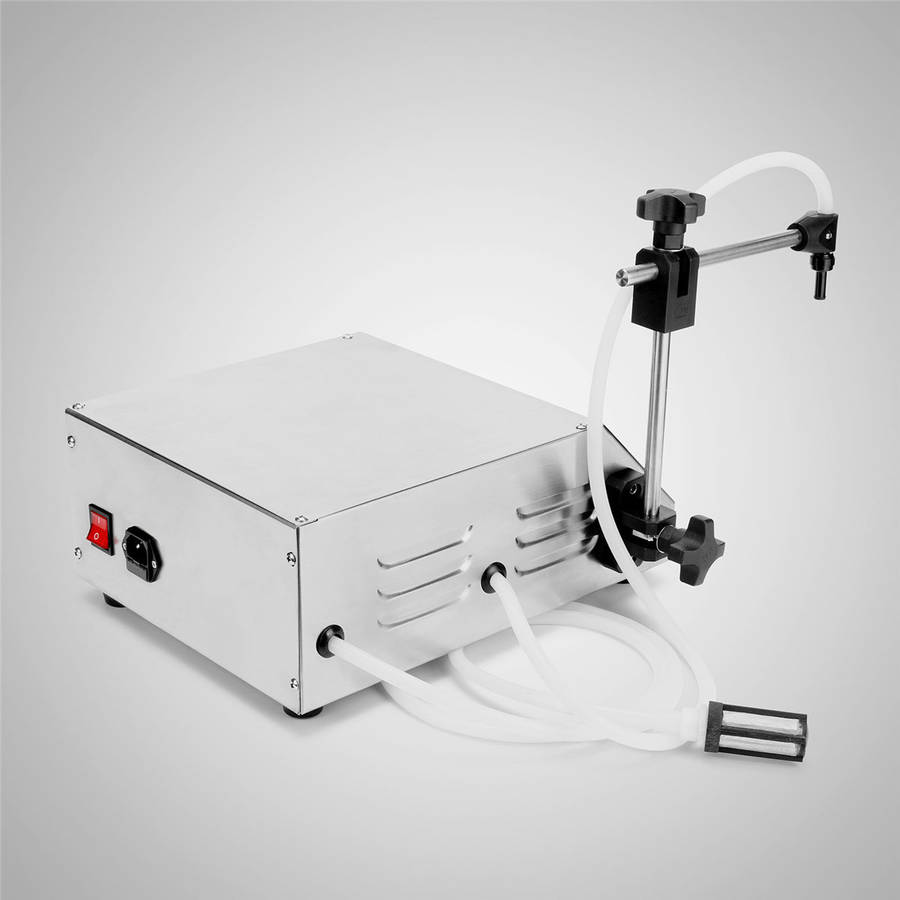

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines as photo3 shows. Put the filling head in the clip and tighten it by socket wrench.
Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.
2. Turn on

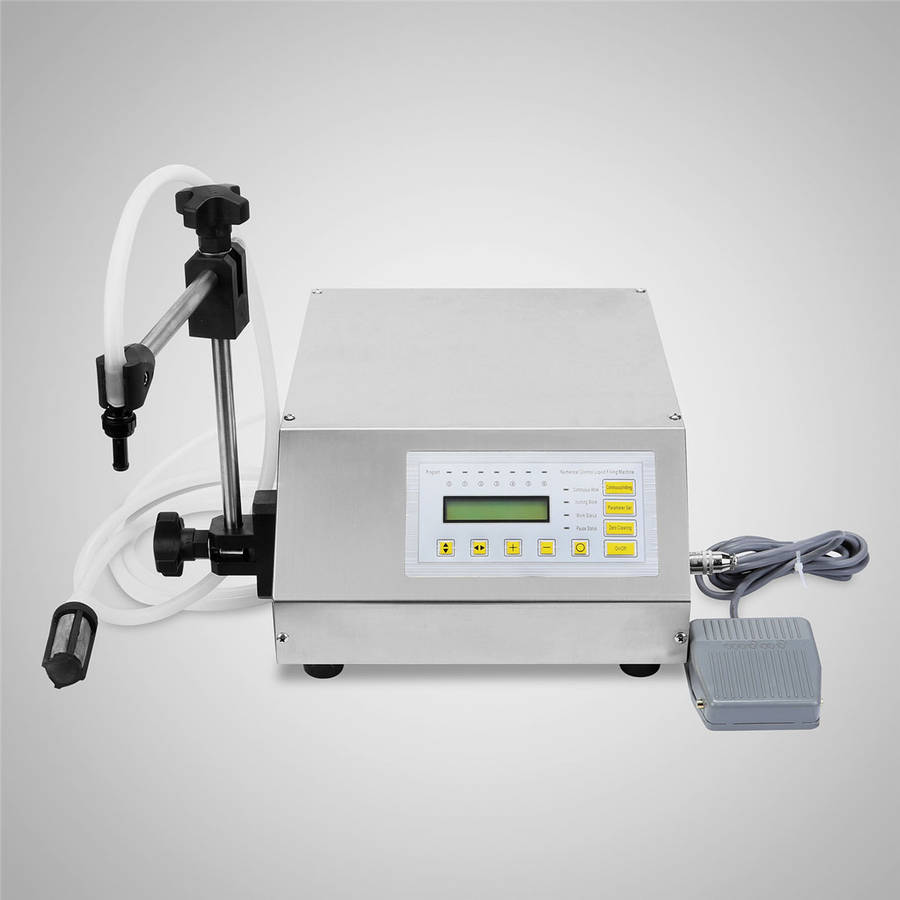

Switch on the machine, the LCD screen will show welcome words and the machine will be under standby status after 3 seconds. As photo4 shows, the screen shows filling quantity at the top left corner, filling speed at bottom left corner, once filling time at the top right corner, interval time at bottom right corner.
3. Adjustment
When the machine is under working status, other buttons can't work. You can adjust the parameter after press the on/off button to let the machine under pause status.
4. Measurement Proofreading
This procedure is to check out if there is water coming out from the nozzle. By adjusting the filling time and speed to meet the requirement. The normal work can be carried out after the measurement proofreading is done.
Kindly note: The manufacturer will not be responsible for any damage due to improper operation. This kind of risk should be taken by the users. Strictly abiding by the manual book is a part of operation requirement.
