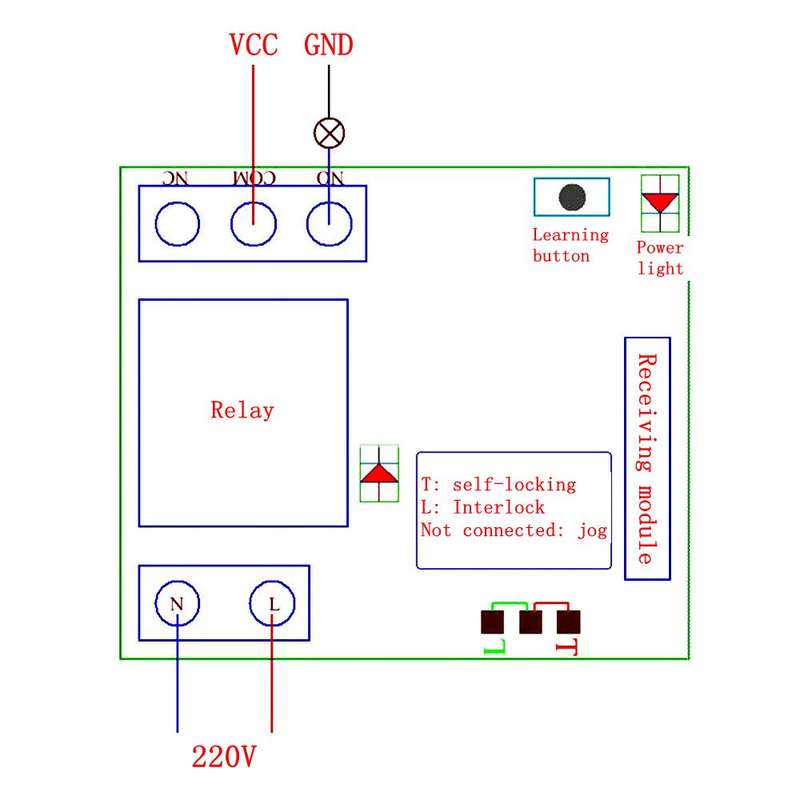

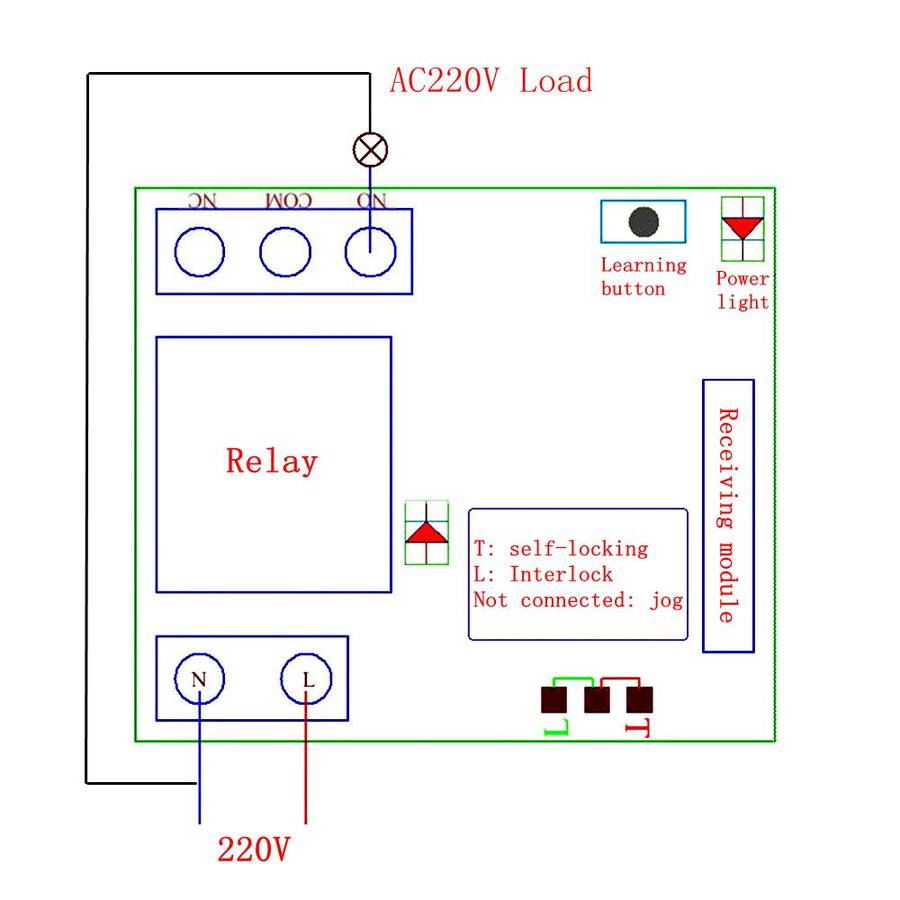

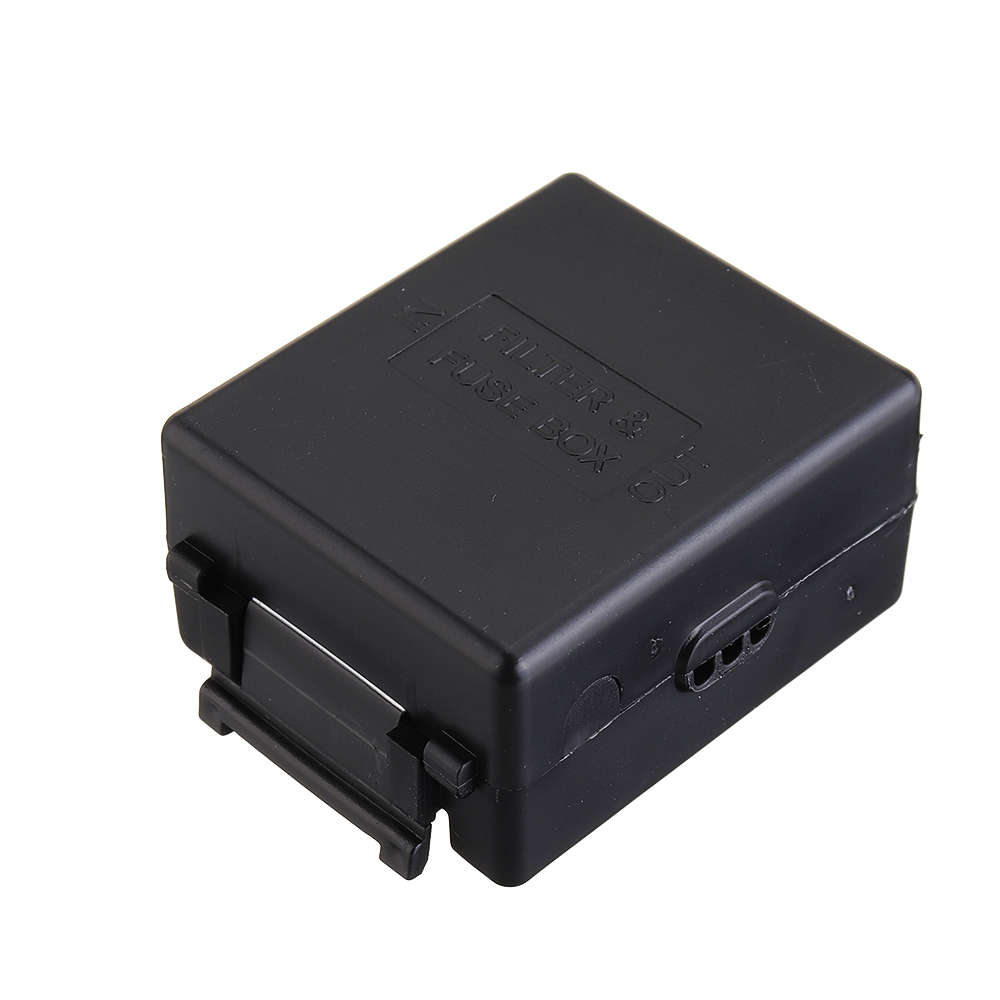

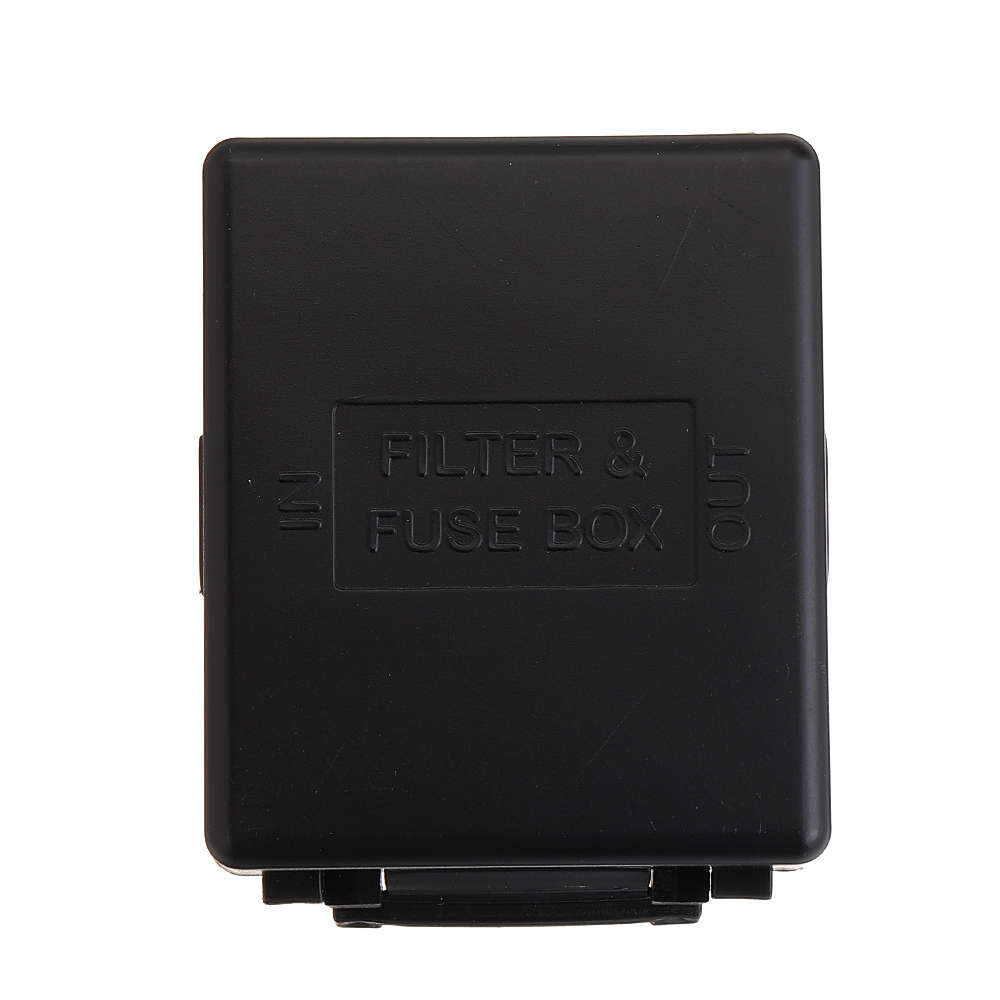

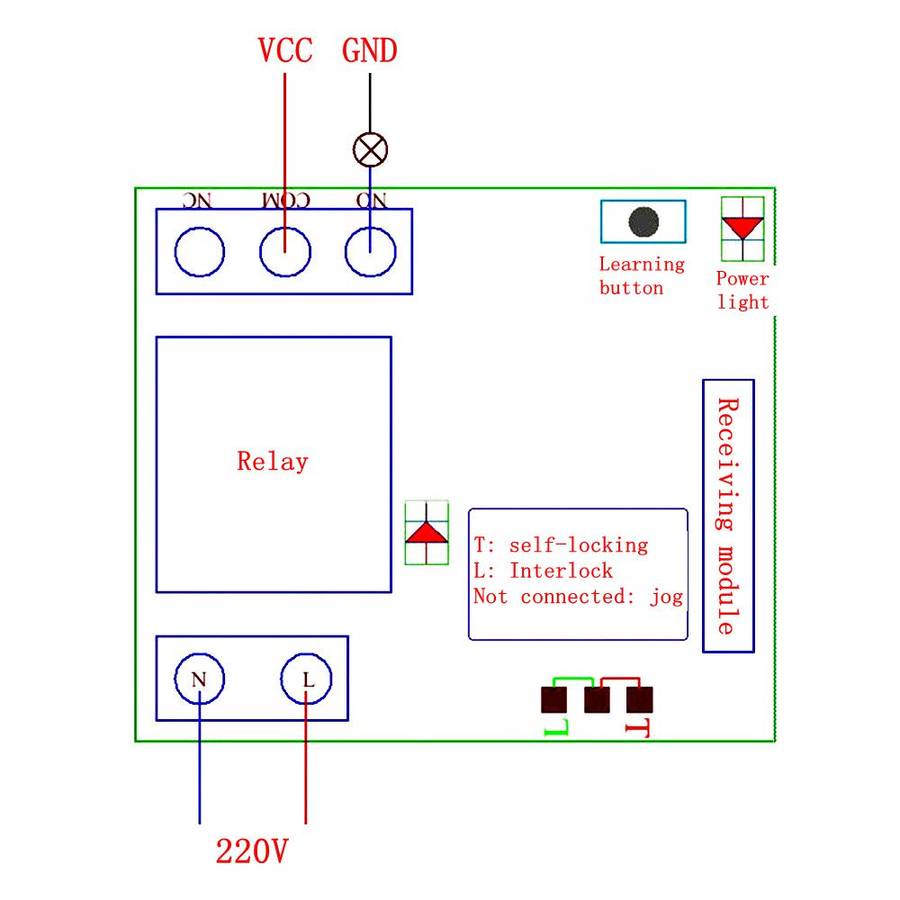

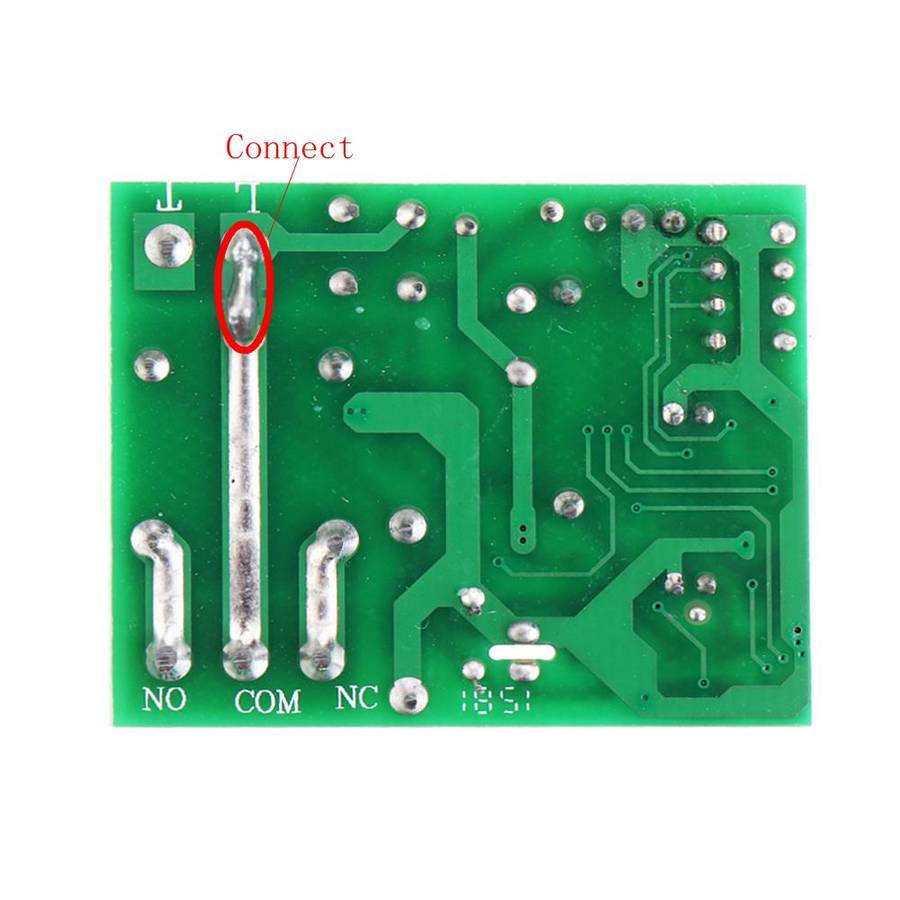

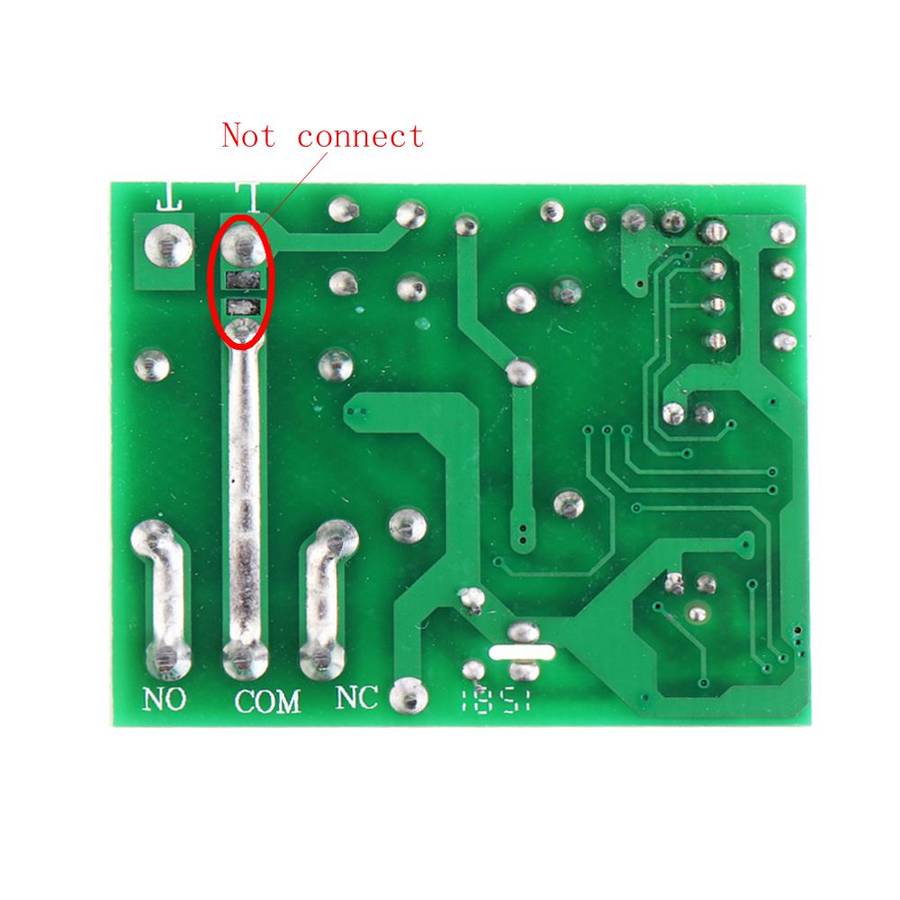

Overview: Wide voltage single controller. Learning function, single-chip decoding is convenient for customers to support a variety of remote controls. The free setting of the three working modes is convenient for the user to use different control functions, the input voltage range is wide, the output is charged and the output switching signal is more convenient for the user to use in different occasions, which increases the application flexibility of the product. It is used in the field of lighting, motor shut-off, security industry machine wireless remote control lights. Technical indicators: Working voltage: AC220V Operating frequency: 315MHz / 433 MHz Standby current: 10mA Load: less than 1000 watts Working mode: self-locking, jogging, interlocking Shell size: 98*44*27.5mm PCB size: 67*38*16.5mm The meaning of self-locking/interlocking/jogging: Interlock (short L): Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected. Non-lock, jog (empty): press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected. Self-locking (short T): Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected. Instructions: (1) Learning code First press and hold the learning button, the indicator light is off, indicating that the learning state is entered; release the learning button, press and hold the remote control button that needs to be learned, the indicator light flashes five times and then lights up, indicating that the learning is successful.
★Note: This controller can learn 20 remote codes of fixed code/learning code, and the remote control will remove the earliest learned remote control if exceed. (1) Clearing code Press and hold the learning button, the indicator light will turn from off to off, then return to long light, indicating that the clearing is successful.

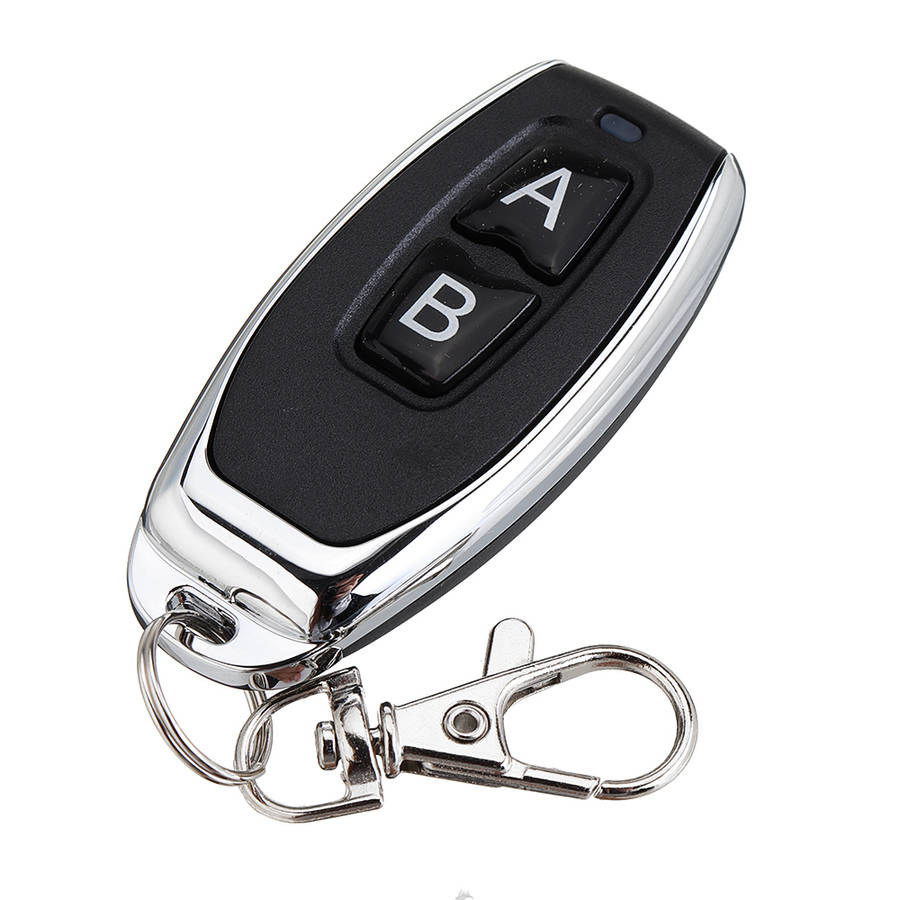

Transmitter Feature: Working voltage: 6V (two CR2016 button batteries) Working frequency: 315MHZ/433MHZ Coding format: learning code (EV1527 compatible chip) Remote control distance: 50 meters (no interference, depending on the specific environment)

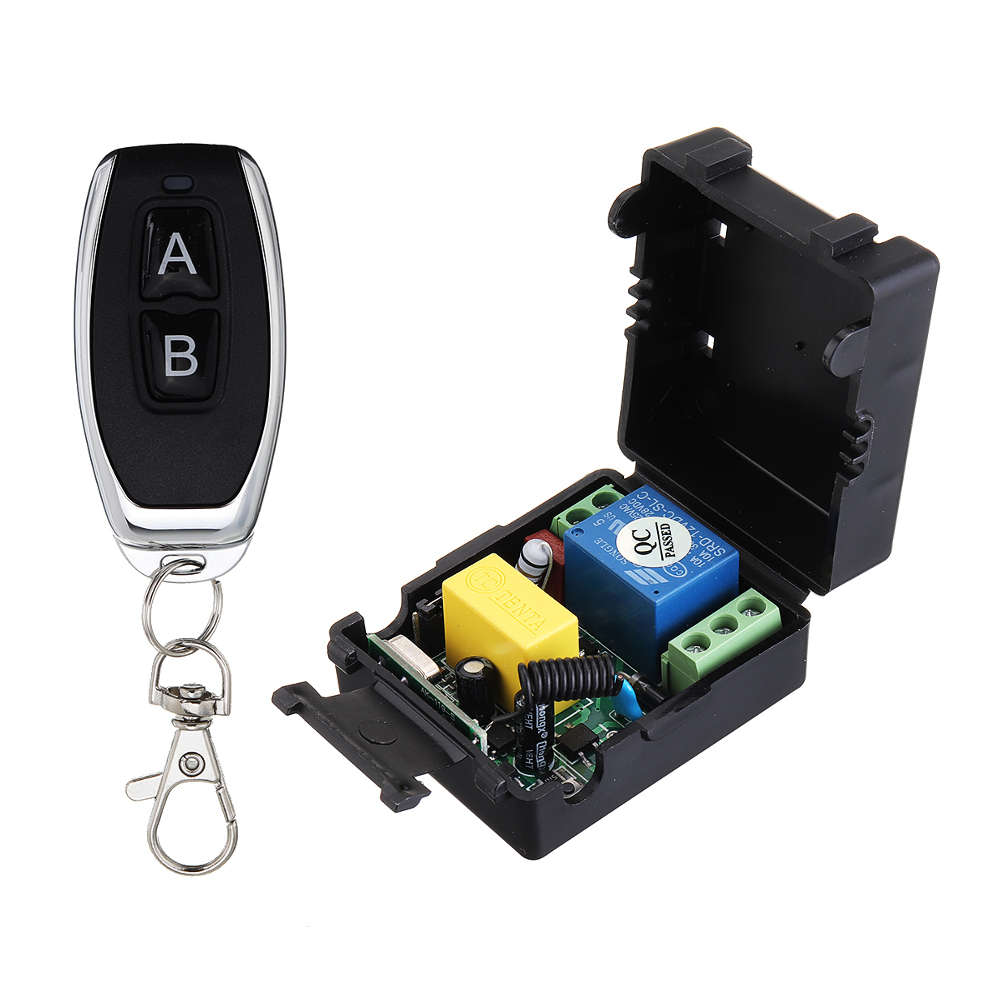

1 x Wireless Remote Control Switch
1 x Transmitter
 |
