Description: Used in remote control switch, remote control water pump opening and closing, remote control machine opening and closing, remote control motor forward and reverse, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote control retractable door, remote control volume Gates, remote control curtains, alarm hosts, alarms, remote control motorcycles, remote control electric cars, remote control MP3, remote control lights, remote control cars, security and other civil and industrial supporting remote control fields, have the advantages of simple matching, safe and reliable use.

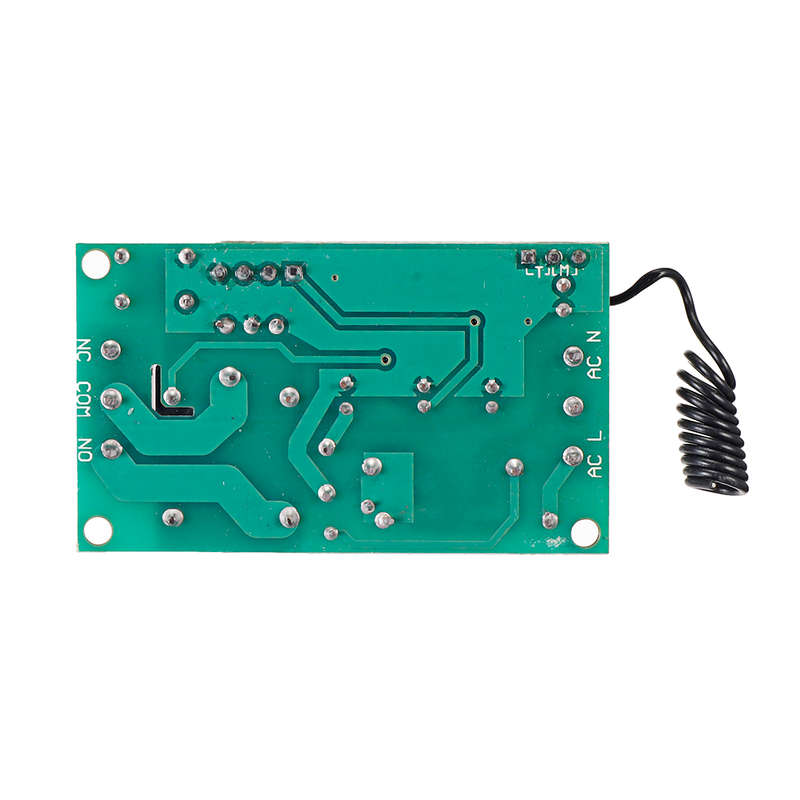

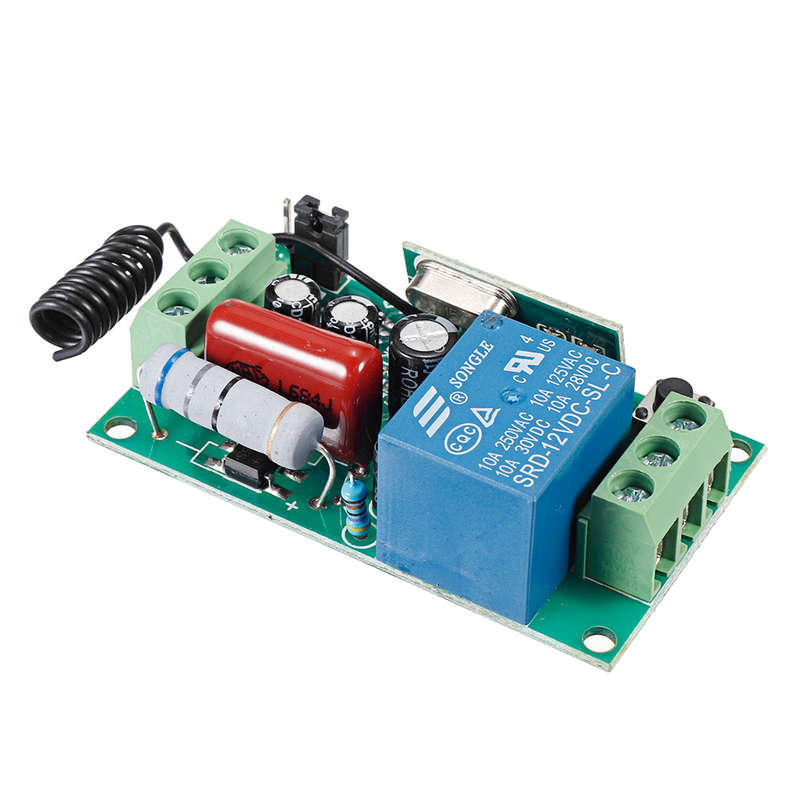

This receiver is powered by a 220V power supply, the relay can withstand a maximum of 10A current, and the default is a single independent relay signal output (that is, without voltage output), and the output terminals have a normally open end, a normally closed end, and a common end (all without voltage). use. This switch can generally be applied to the following two occasions.
1.With 220V voltage output, this kind of equipment only needs to lead a live wire from the input end to the common end and then share the input neutral line to directly control the 220V device.
2. Directly connect the normally open end and common end of the output end to other voltage circuits to control its on and off! (The recommended control voltage range is: 3V-250V, current range: 0.1A-10A resistive load)

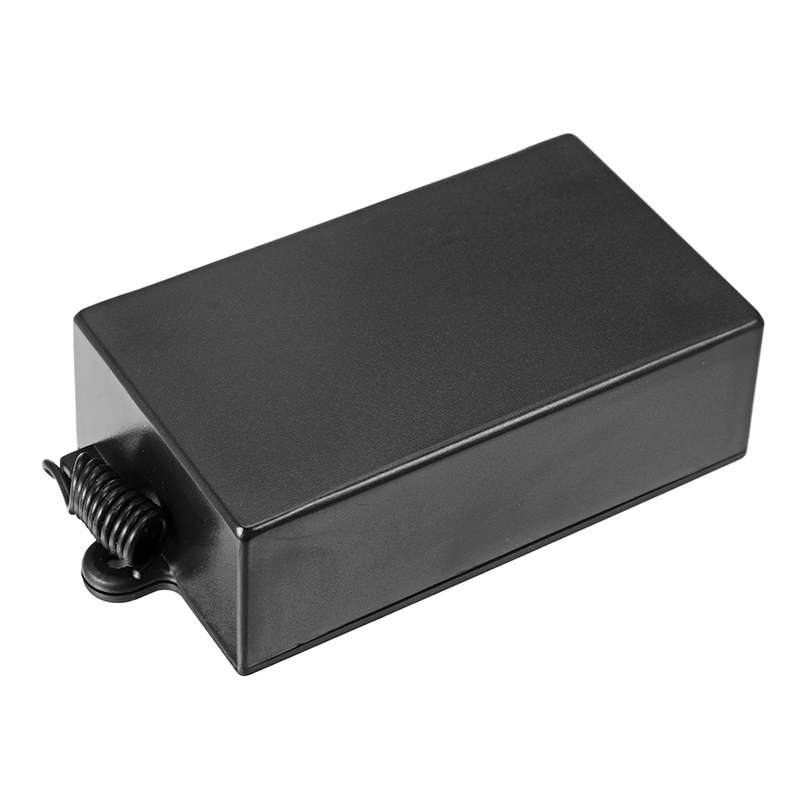

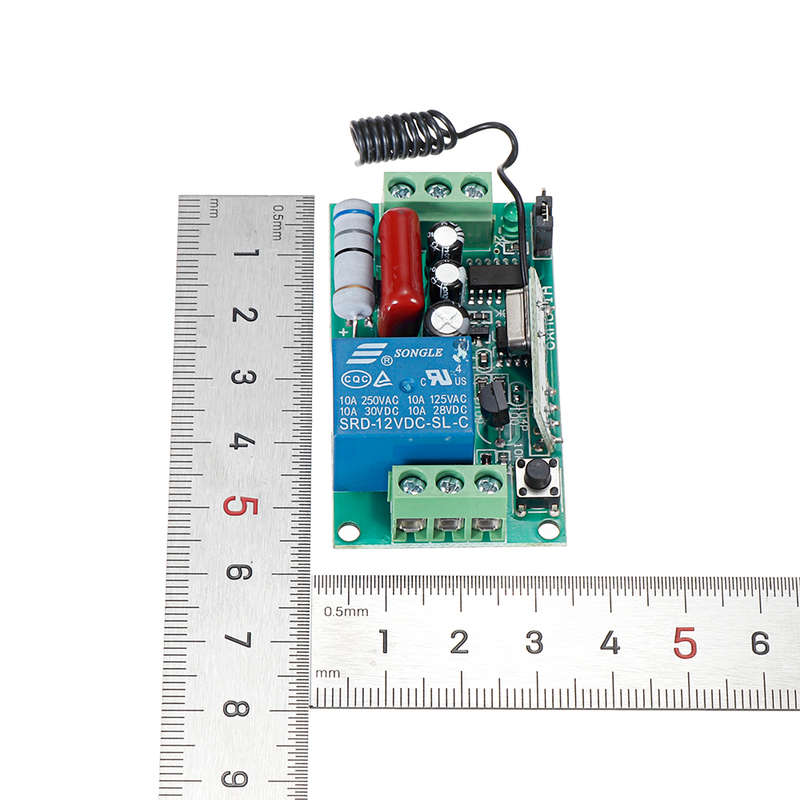

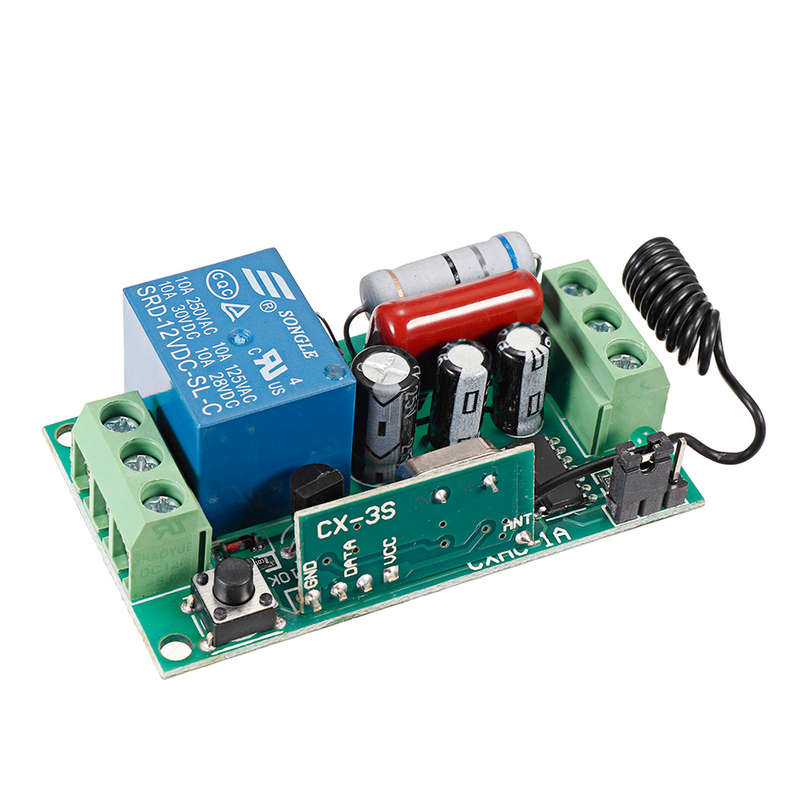

Product parameters: Product name: 220V 10A single-channel remote control switch Working voltage: AC 220V Working frequency: 315MHZ/433MHZ (default 315MHZ) Working mode: Jog M4/self-locking T4/locking L4 Code pairing method: intelligent learning type Working environment: -40a~+80a Receiving sensitivity: a105dBm Output current: inductive a3.5A; resistive: less than or equal to 6A Dimensions: Shell: 81 x 38 x 22mm; Inner panel: 55 x 31 x 17mm
Working status description: The receiver has the following 3 working modes can be set, single-channel jog, single-channel self-locking, single-channel interlock.

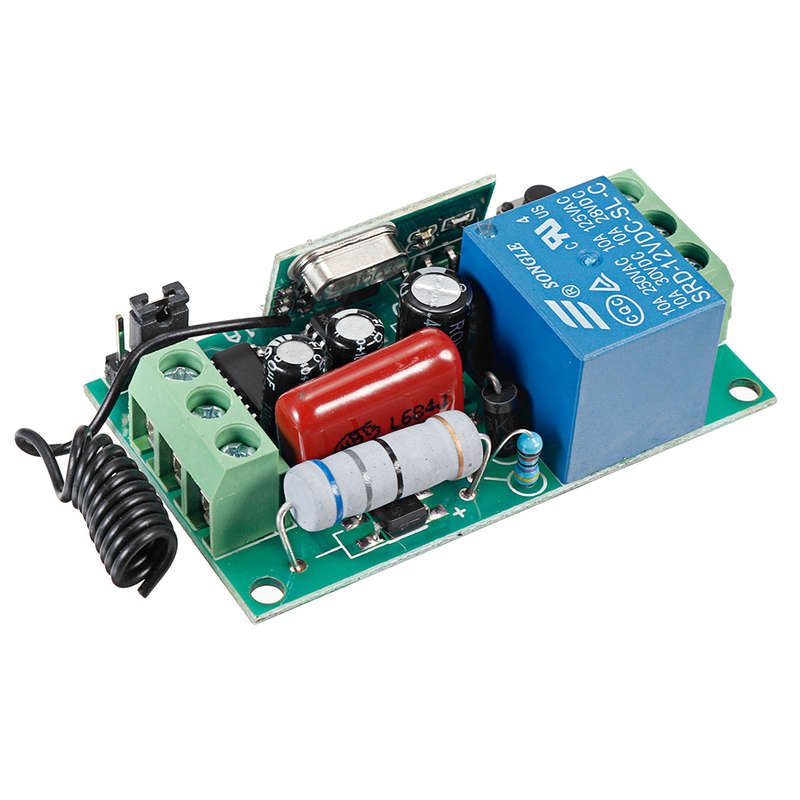

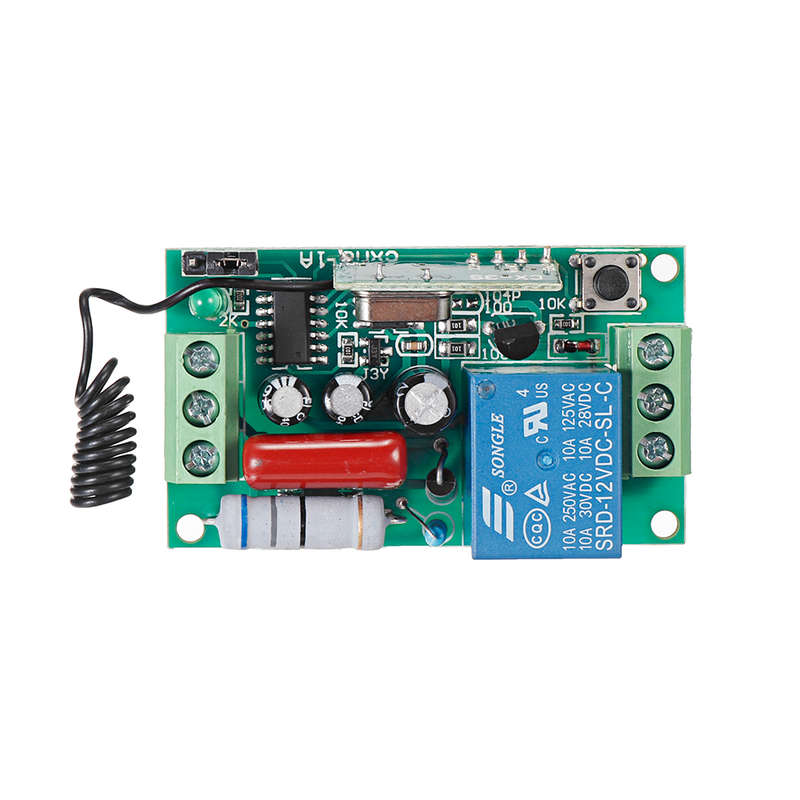

1. Jogging: insert the black jumper on the receiver on the 2+3 pins to jog. There is a mark M< on the board. Literal translation: press and hold the button on the remote control to work, and release it to stop. !>
2. Self-locking: insert the black jumper on the receiver into the two pins 1+2 to be self-locking. There is a mark T< on the board. Literal translation: the receiver is turned on and off on the remote control. Finish on the same button, press the remote control buttons in turn, the first button is on, the second button is off, the third button is on, the fourth button is off, and so on!>
3. Interlock: Leave the three black jumper caps 1, 2, and 3 on the receiver vacant as interlock L

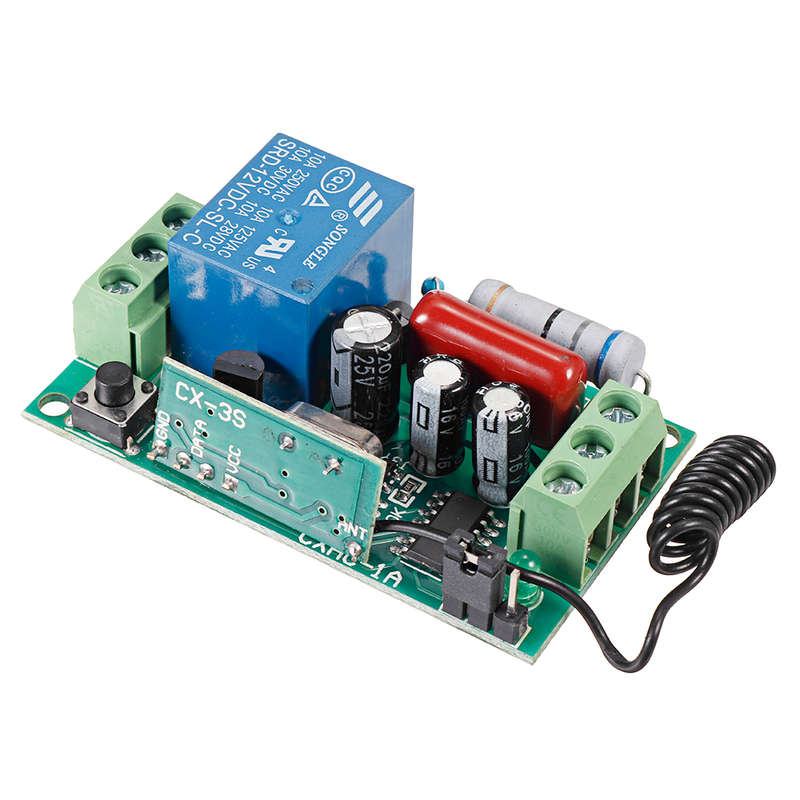

Add or remove the instructions for using the remote control: 1. Learning: Press the learning button on the receiving board once the green light is on and release it, and then long press any key on the remote control to learn. After the green light flashes quickly, it means that the key has been learned and the key can be controlled.
2. The 2262, 2260, 1527 chip equivalent frequency fixed code learning code wireless remote control that can learn more than 20 different address codes;
3. Clear code: long press the learning button on the receiving board for more than 5 seconds, the green light turns from bright to flashing and then goes out, indicating that the clear code is successful.

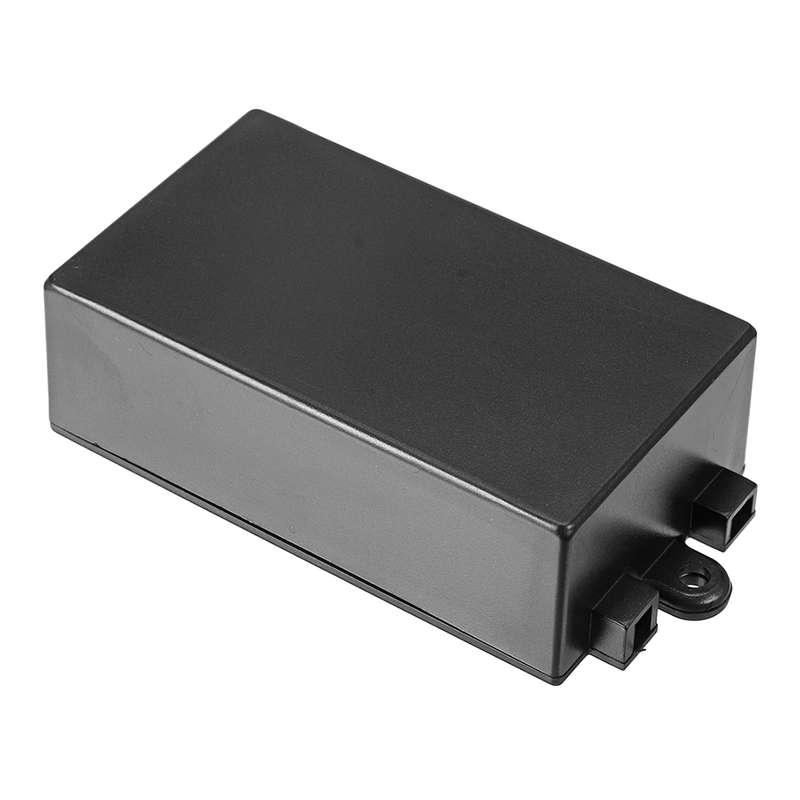

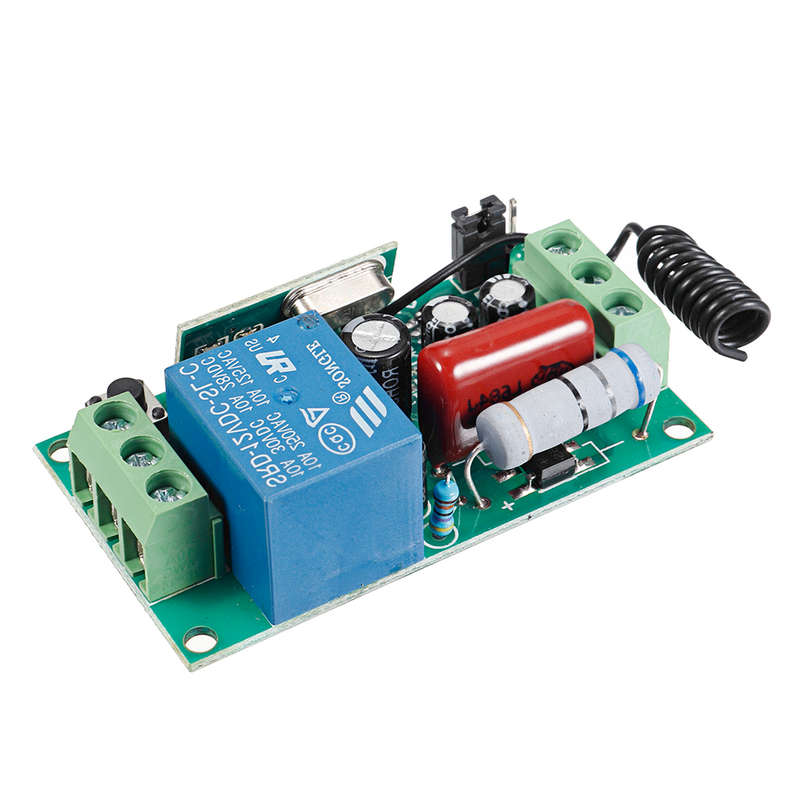

Package included: 1 xWireless Remote Control Switch Module with shell
