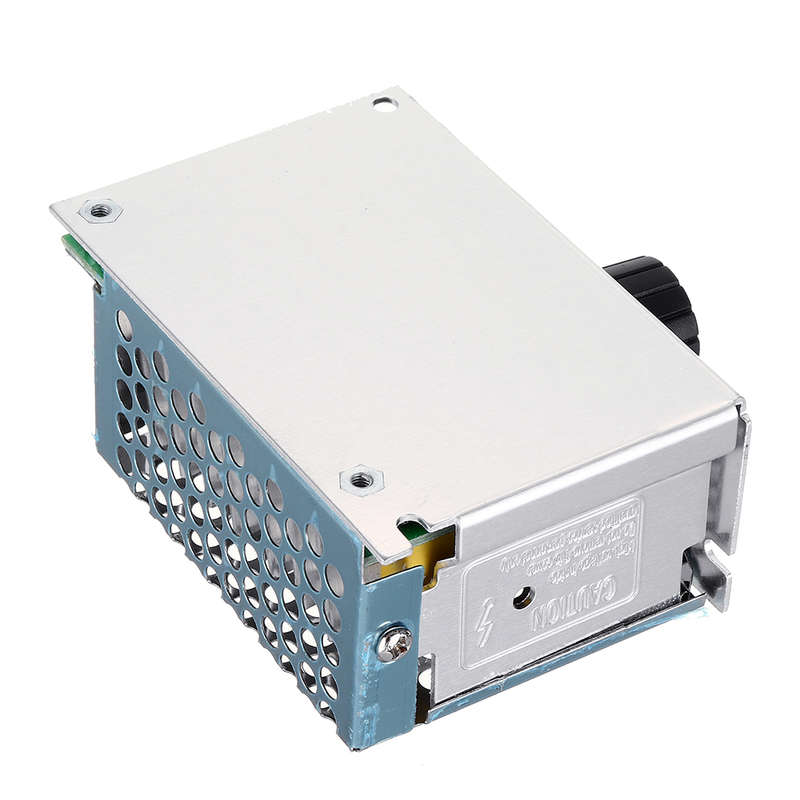

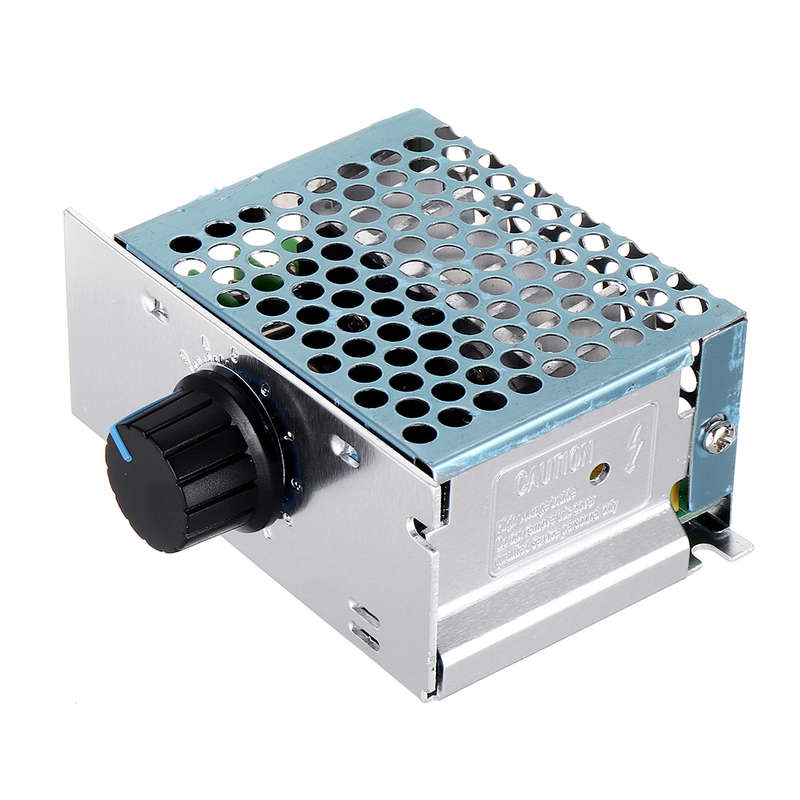

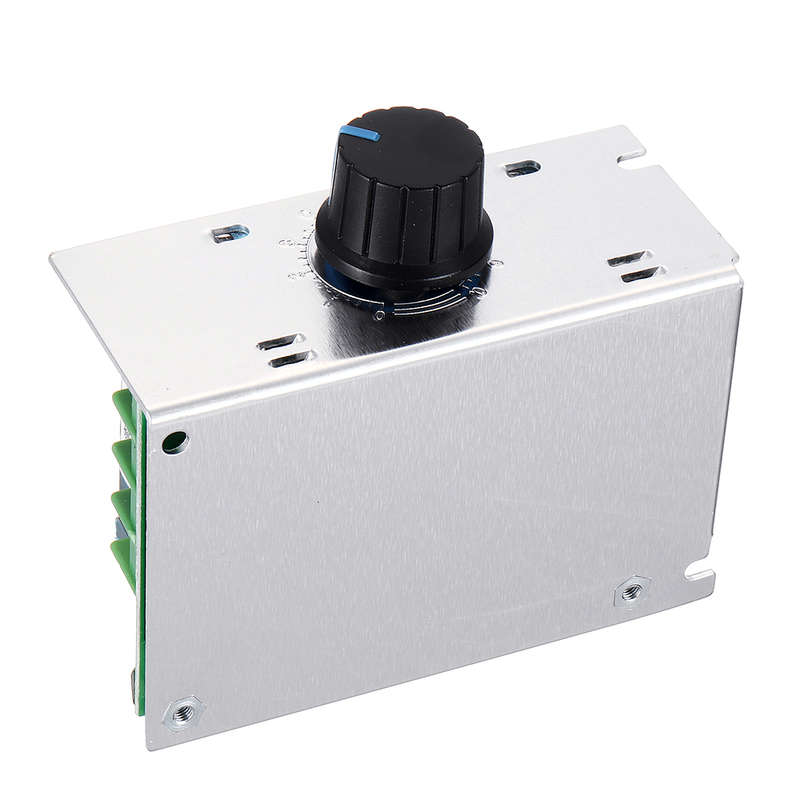

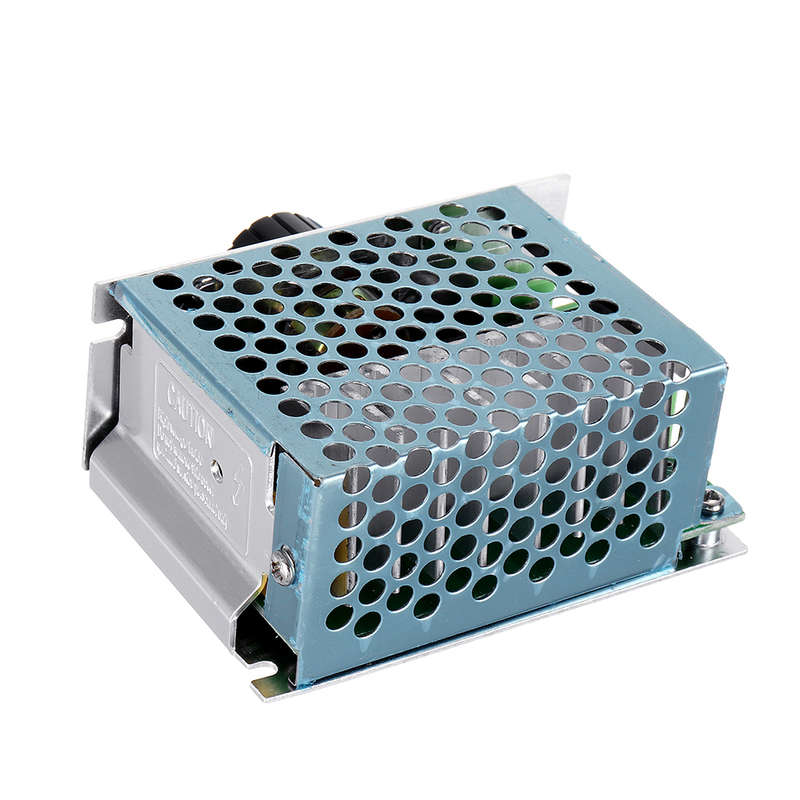

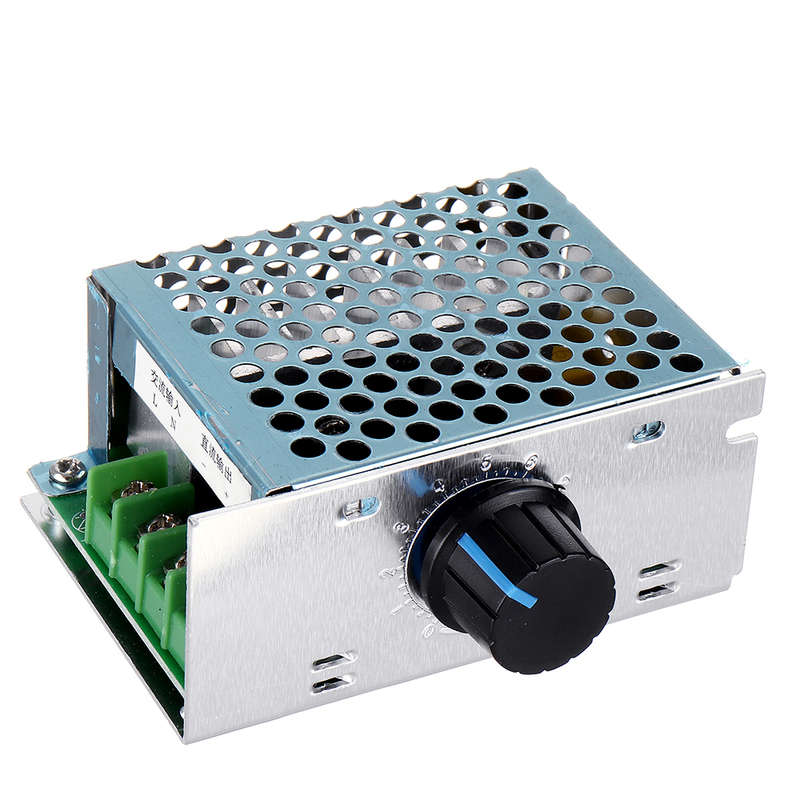

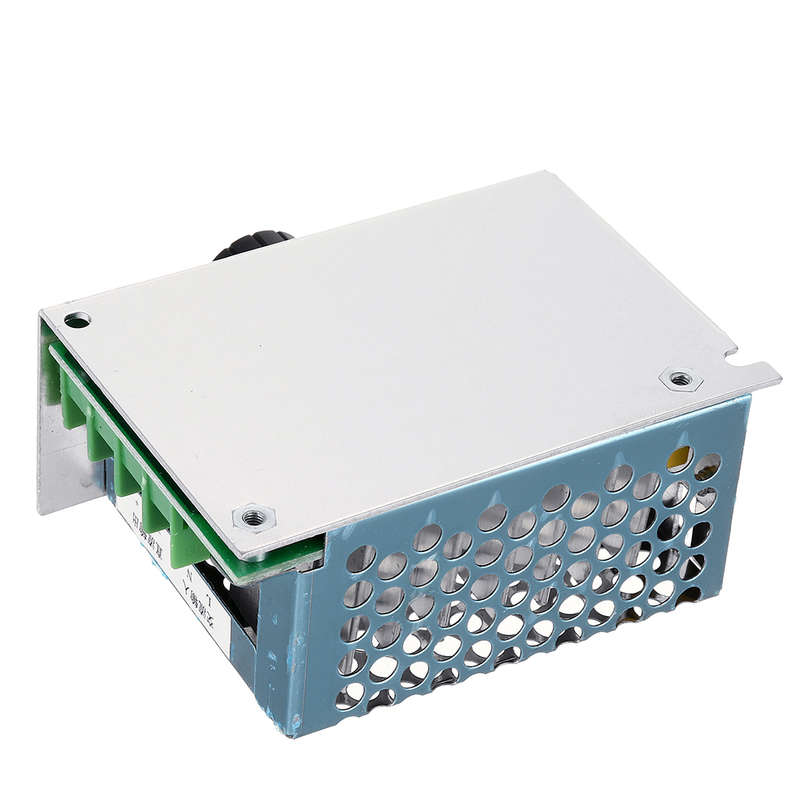

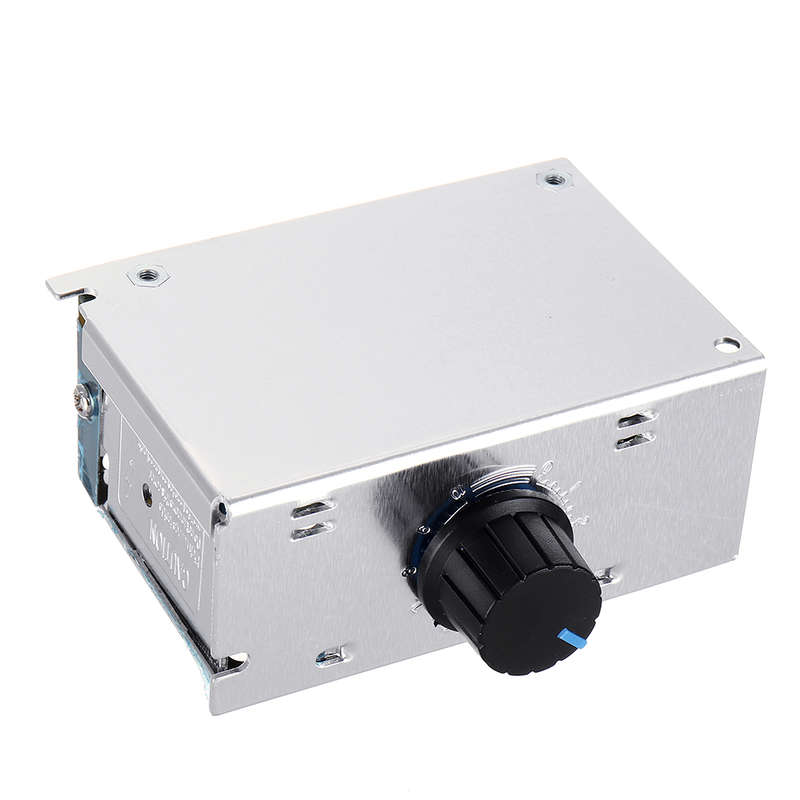

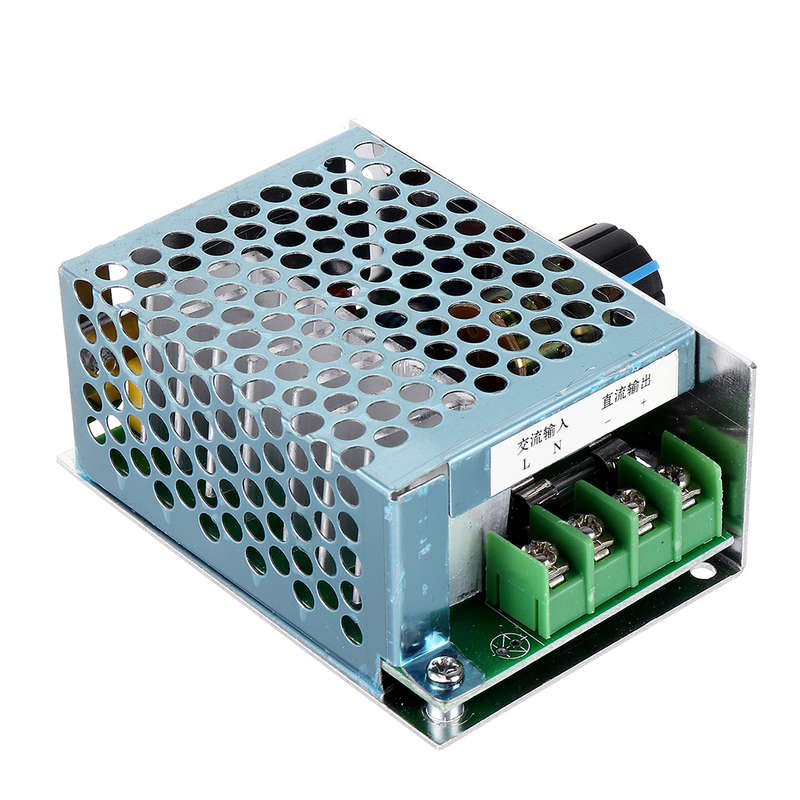

Product | AC220V 500W DC Motor Driver High Voltage Motor Speed Controller Electronic Stepless Speed Control Switch DC 10-210V Motor |
Specifications: Input voltage: AC 220V Output voltage: linear under load Continuous current: 10A Maximum current: 20A Regulated voltage: DC 10-210V Speed regulation method: potentiometer (linear) Wiring type: Barrier terminal Knob specification: 500K with switch Module size: length * width * height 85MM*58MM*38MM Product net weight: 135 grams Note: 1. The voltage must be measured under load and the no-load voltage remains unchanged. 2. This product is only suitable for 220V DC brushed motors. Package Included: 1 x 500W DC Motor Driver High Voltage Motor Speed Controller |
