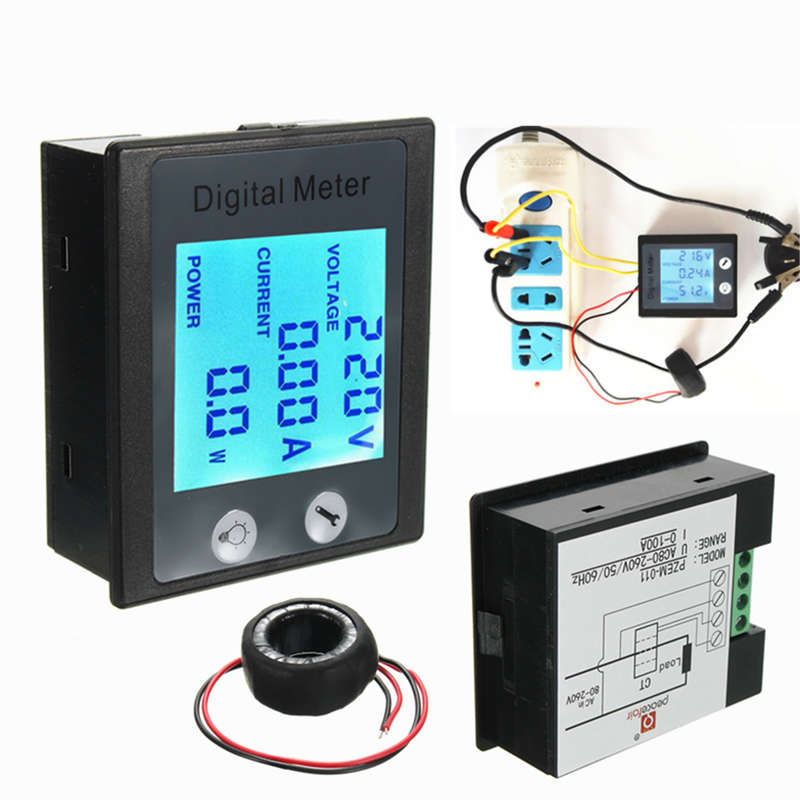

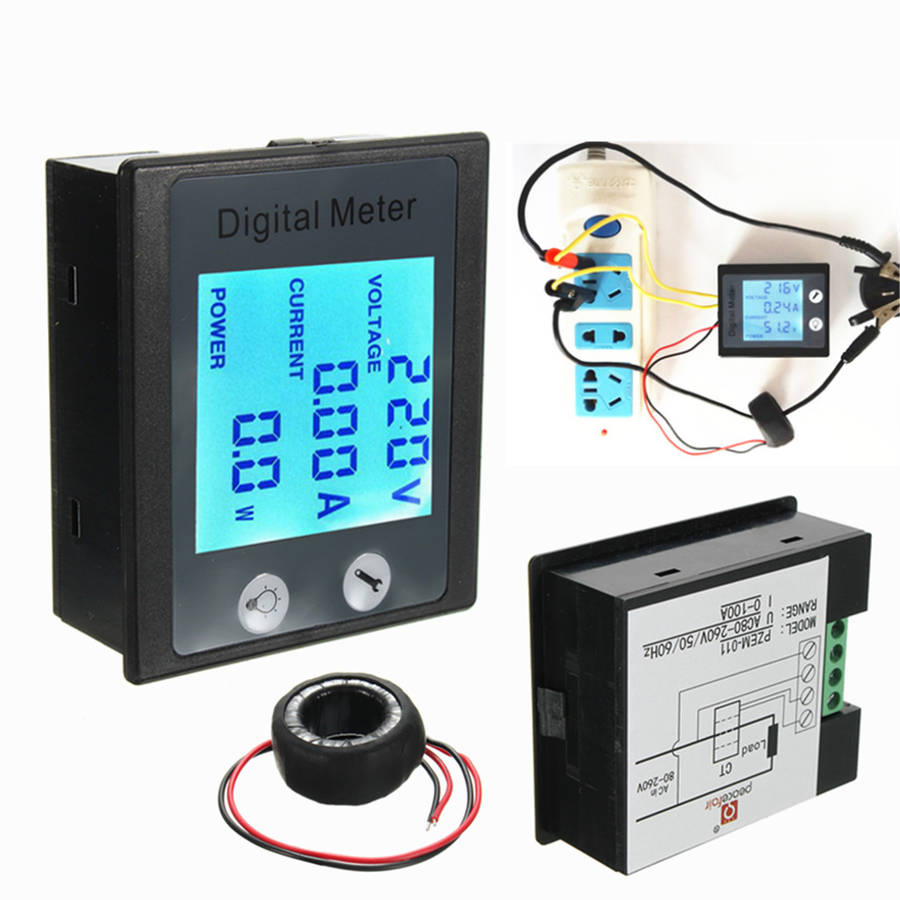

AC80V-260V 100A Digital Power Energy Meter Voltage Tester Ammeter Voltmeter Transformer
New
R209.60
Closed
4 Dec 17 09:26
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 1 business day. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1131111
Bob Shop ID
312104053
Features:
Electrical parameter measurement function (voltage, current, active power, energy).
Running time function(records the accumulated operating time of load).
Backlight and overload warning function(backlight flashing to alarm when overload).
Power warning threshold preset function(you can set your own power warning threshold).
Power-down data storage function and long press button for energy and running time reset function.(store the accumulated energy, running time, display items, the state of backlight on/off).

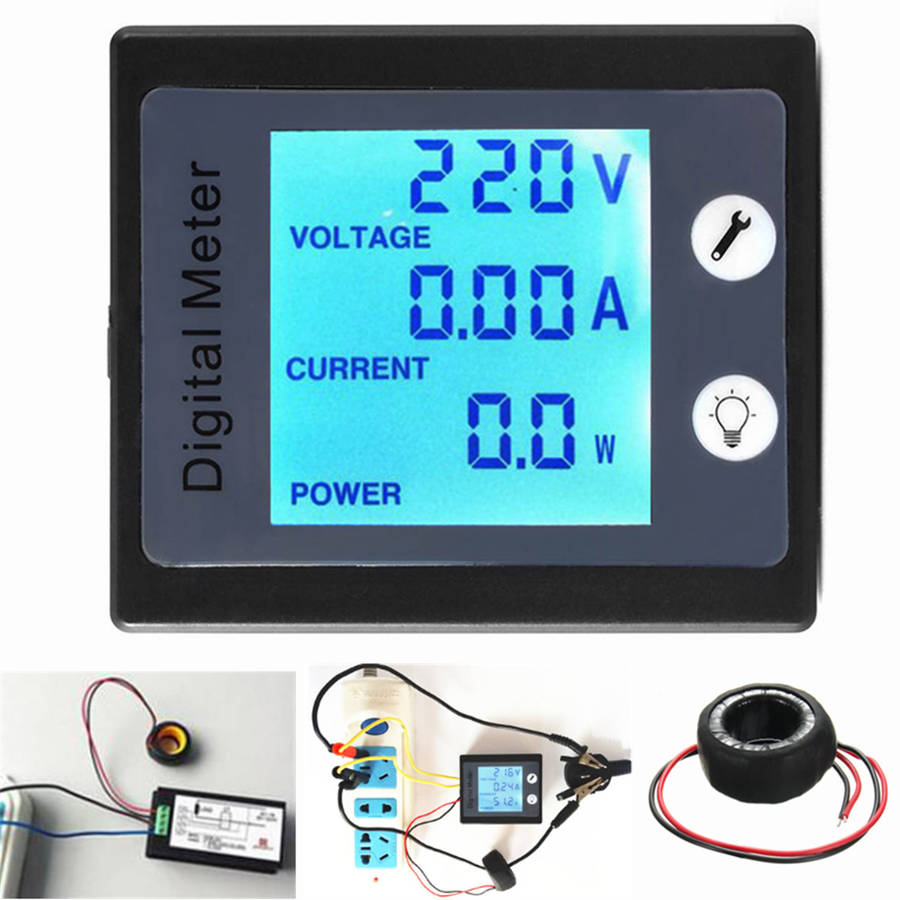

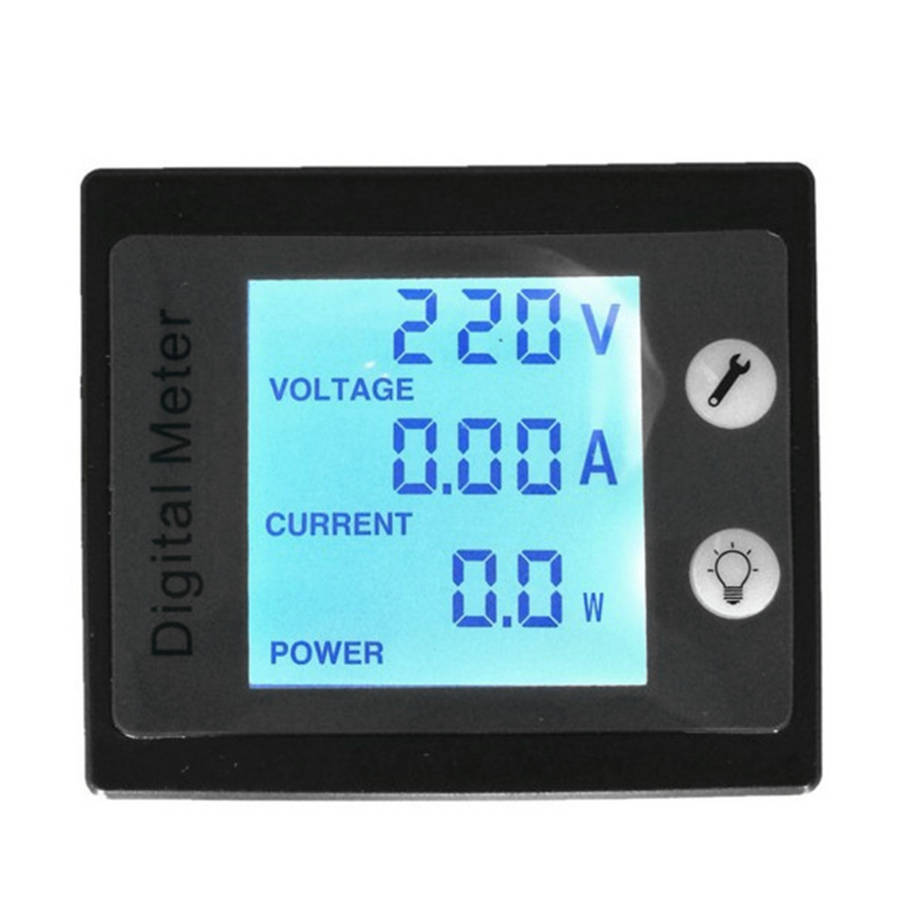

STN whole viewing angle LCD(display voltage, current, active power/energy at the same time)
Specifications:
Operating frequency: 45-65Hz
Rated power: 22KW
Working voltage: 80-260VAC
Testing voltage: 80-260VAC
Testing current: 0-100A
Testing energy: 0-9999kWh

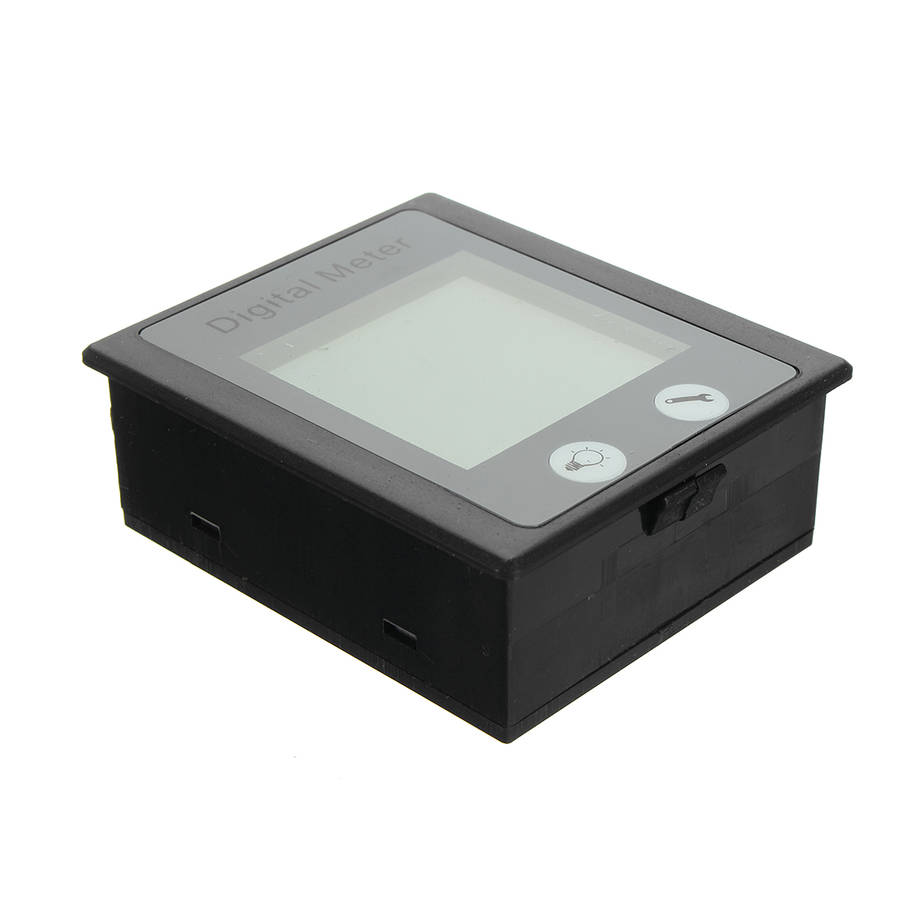

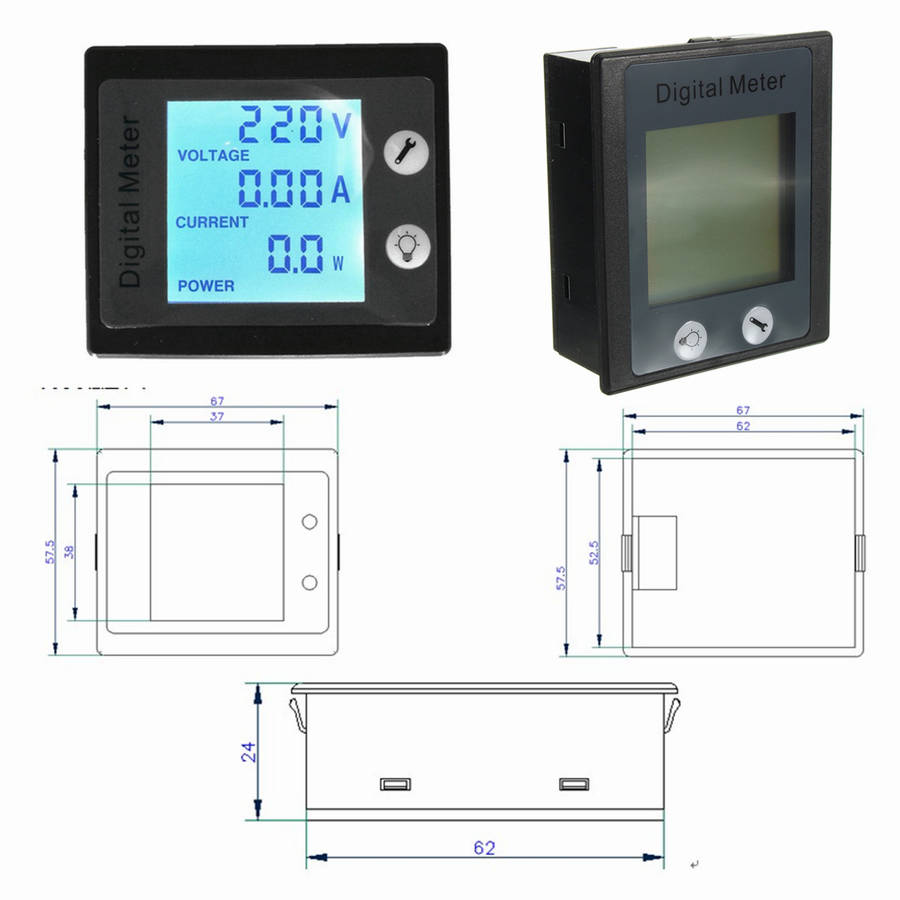

Dimensions: about 62 x 52 x 24mm
Test Range and Display format:
1.Power: test range: 0~22kW
< 1kW, display: 0.0~999.9W
1kW~10kW, display: 1000~9999W
> 10kW, display: 10.0~22.0kW
2.Energy: test range: 0~9999kWh
<10KWh, display: 0~9999Wh
>10kWh, display: 10~9999kWh
3.Voltage: test range: 80~260V(single-phase)
Display: 80~260V
4.Current: test range: 0~100A
Display: 0.00~99.99A
Precautions:
1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.

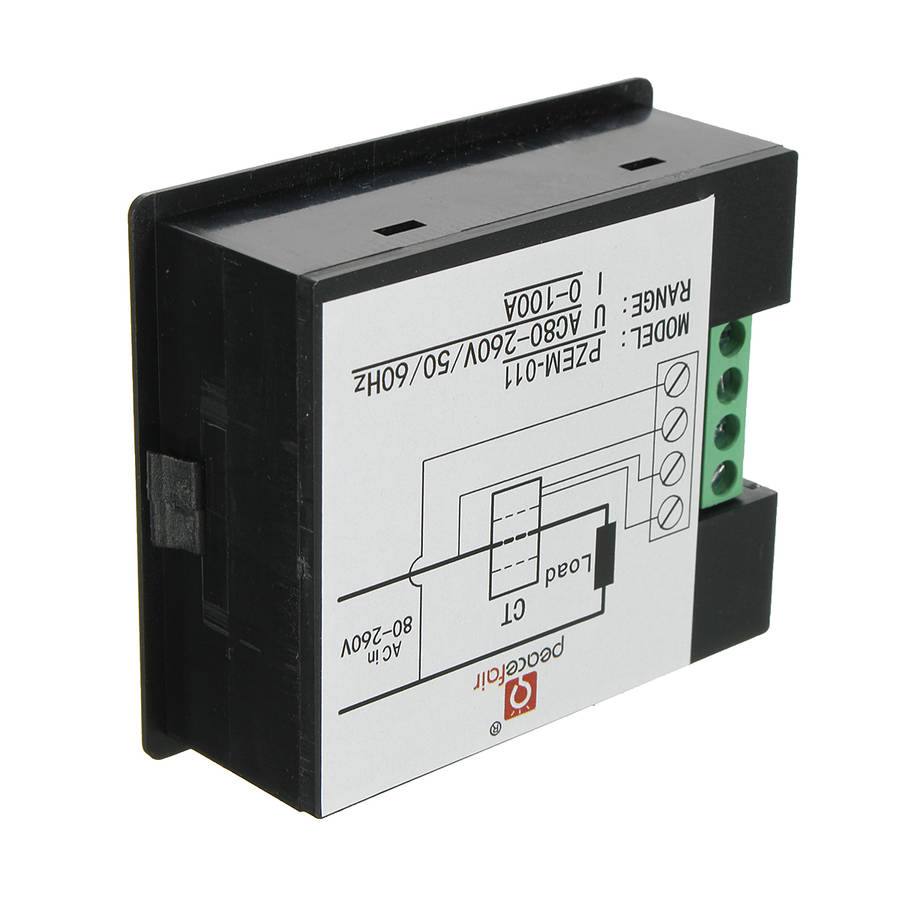

3. Wiring order can not be wrong.
4. This module is suitable for indoor, please do not use outdoor.
Package included:

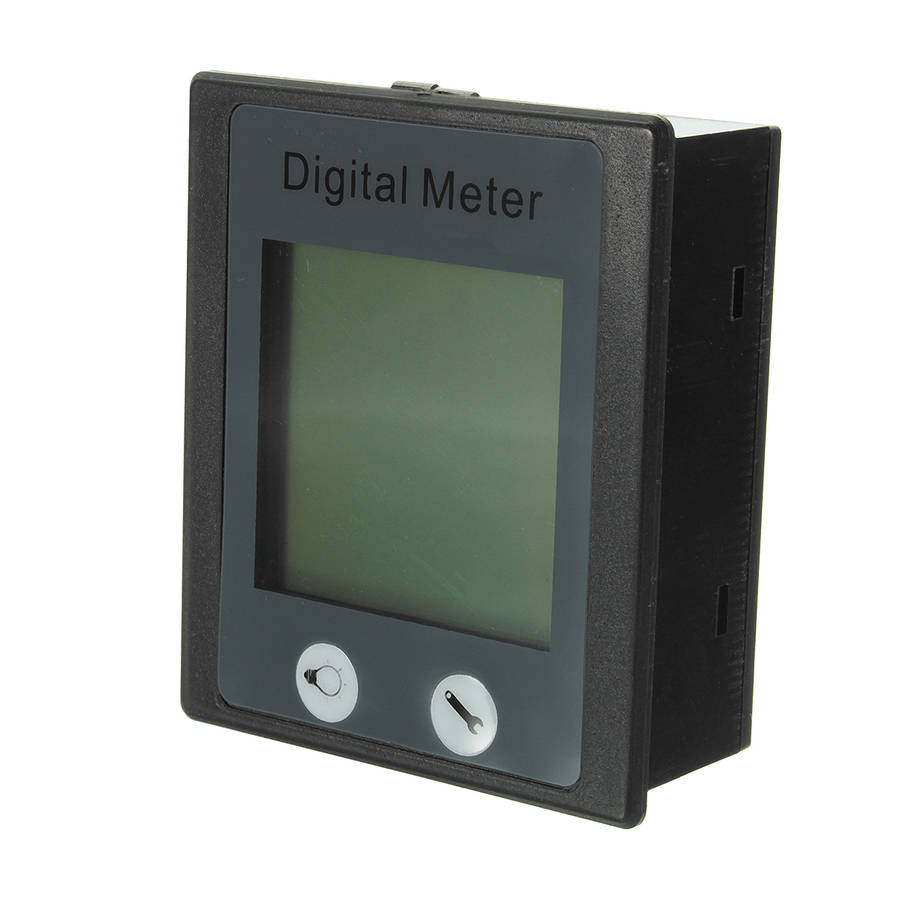

1 x 100A digital display meter

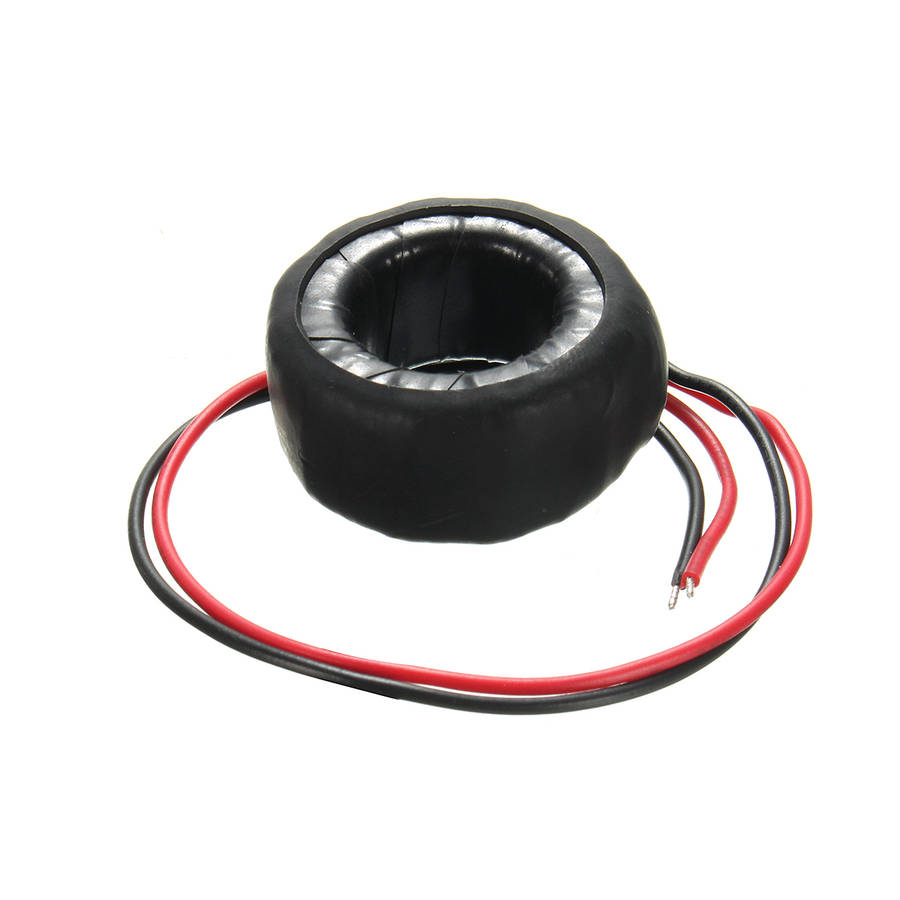

1 x Coil-type CT
1 x User manual

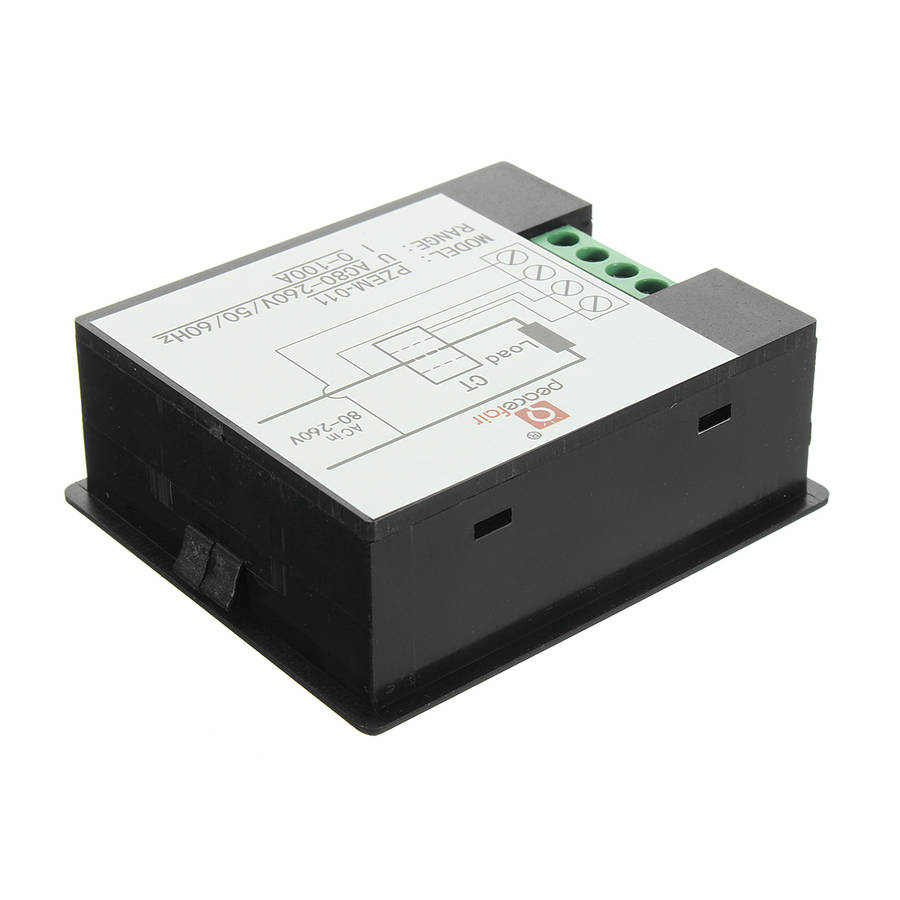

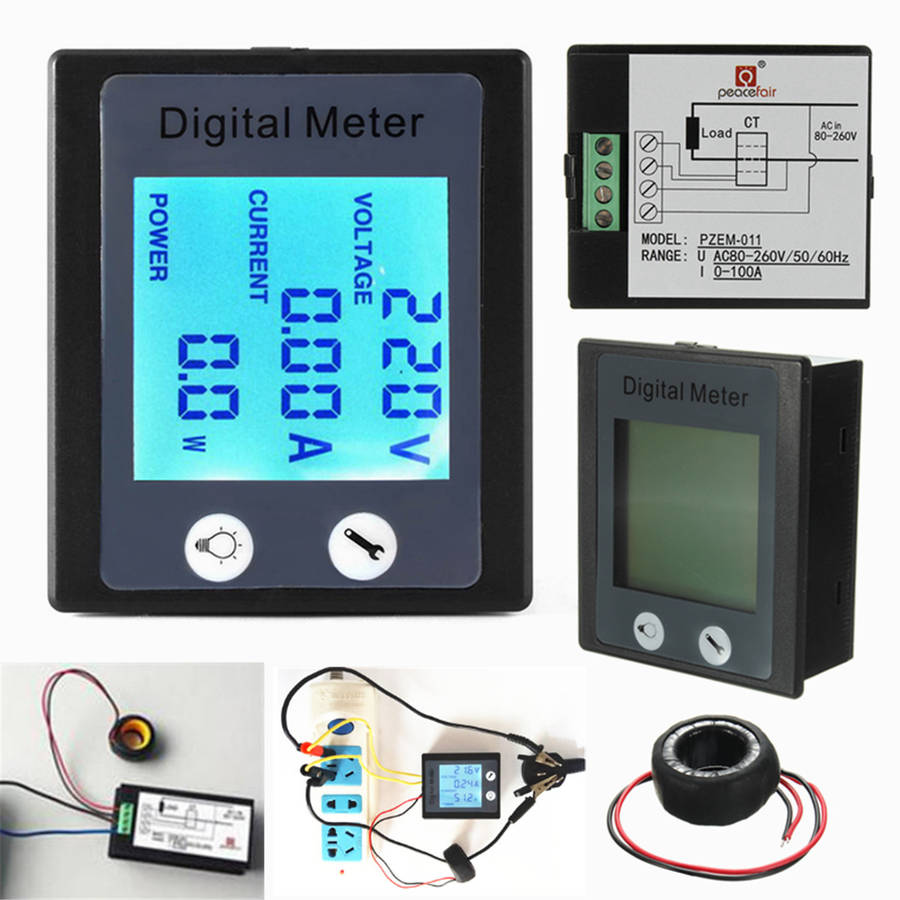

Detail Pictures:
