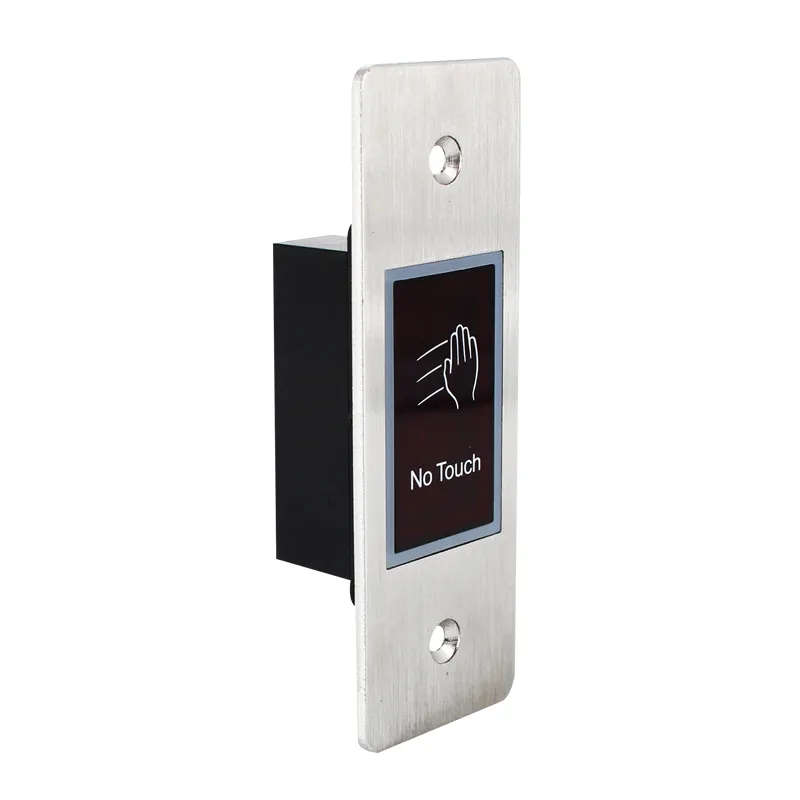

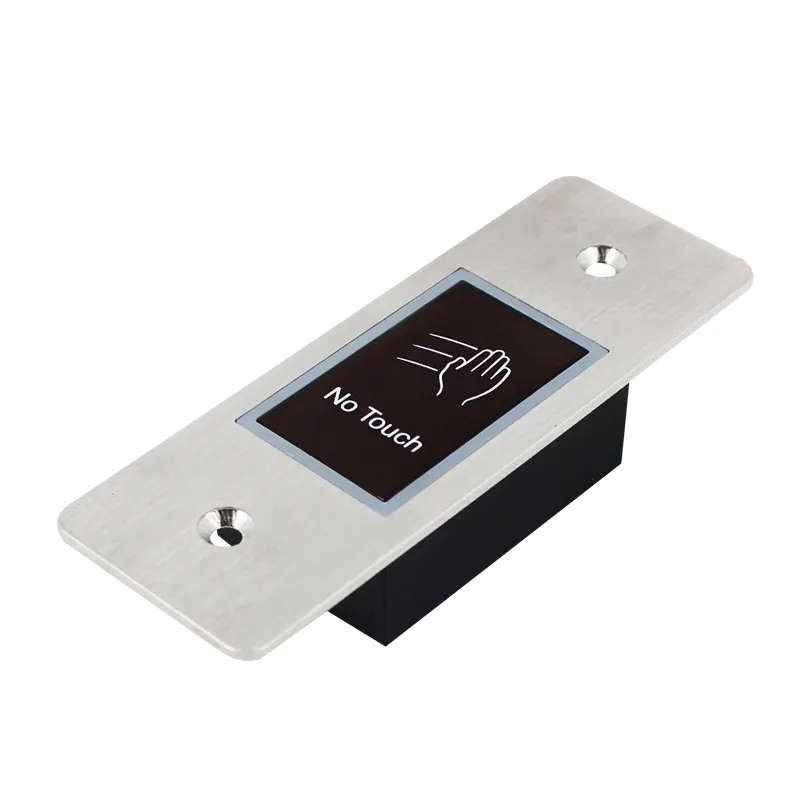

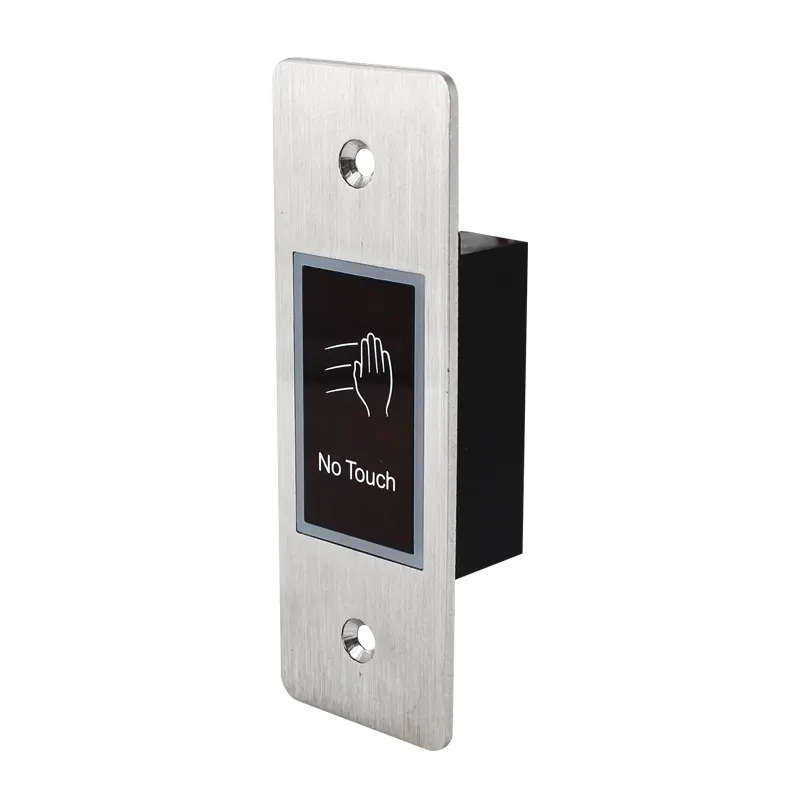

Access Control Embedded 12V 24V Infrared No Touch Exit Button Door Release Button

Welcome to the Digital Life Smart Home Automation Range.

Our Access Control Embedded Infrared No Touch Exit Button Door Release Button is the perfect Exit Door Release Button.

This product is meant to be used together with our Tuya Smart Access Control or if you want to replace your Exit button that supports 12V/ 24V Exit Buttons.

Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use.

Features;
Infrared induction No Touch Exit Button.

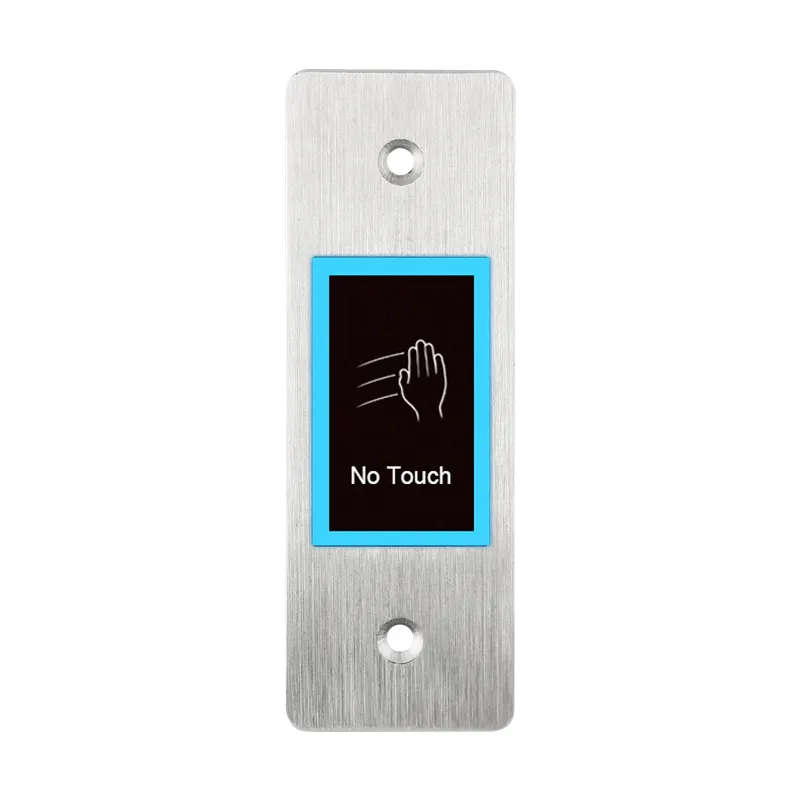

Blue Backlight.

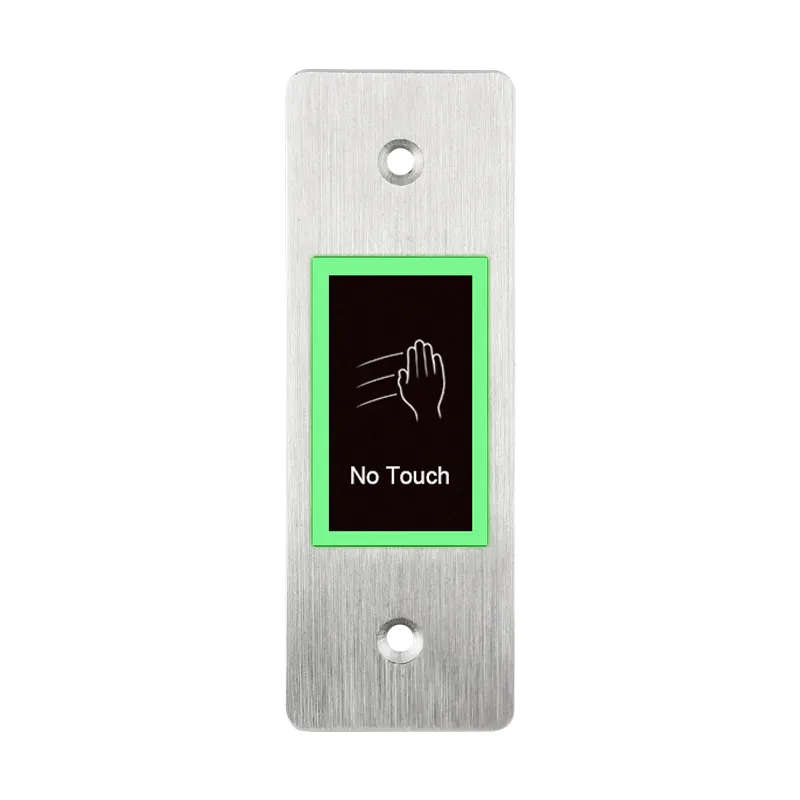

The backlight changes to green when it senses the hand.
Sensor Distance: 2.5cm to 11cm (Adjustable).
The relay closes 1 Second after the hand is removed from the sensor.

Specifications;
Model: Ebutton 1
Electrical Voltage: DC10V-24V | Working Current 25mA | Idle Current 15mA.
Wiring Connections support Relay Output 2amp max (Power +, Ground, Normally Open, Common, and Normally Closed).

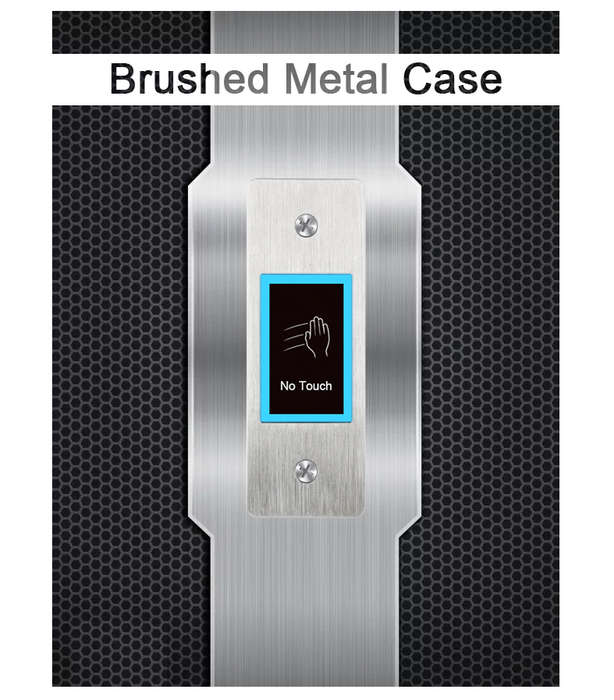

Material: Stainless Steel.
Color: Silver & Black.
Installation: Indoor. This product is Not Waterproof.

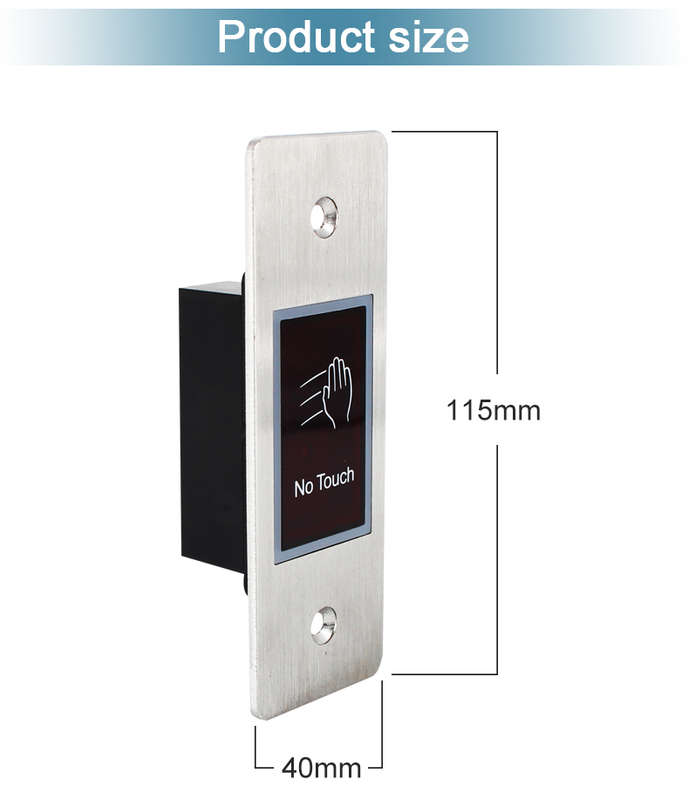

Dimensions: Box: 130 x 70 x 57mm
Weight: 181g.

What's in the Package;
1 x Embedded Infrared No Touch Exit Button Door Release Button.

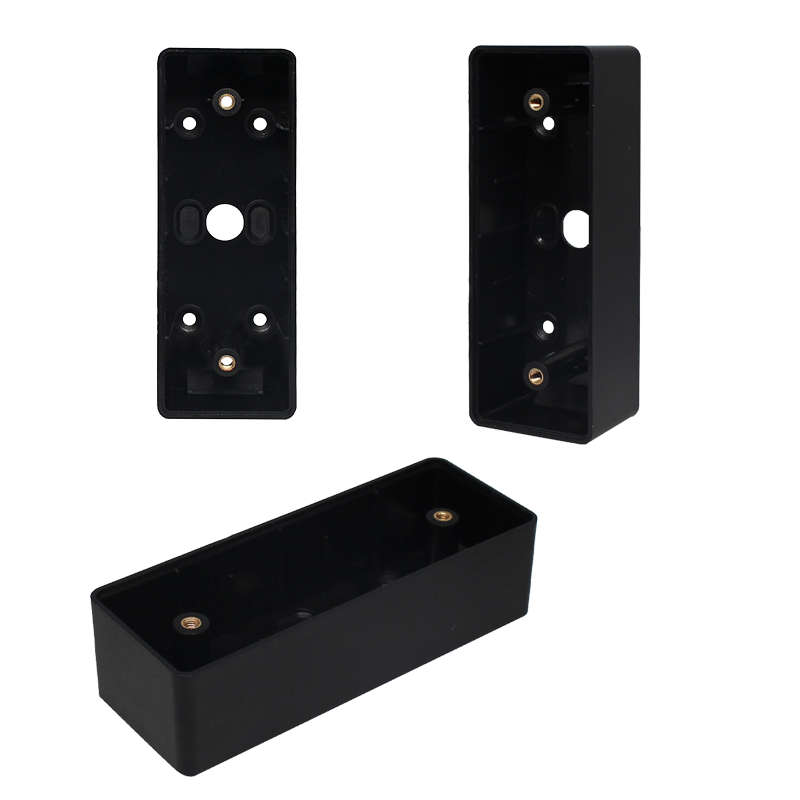

1 x Mounting Box (Black).
1 x Diode IN4004.
1 x Set of Screws.
1 x User Manual.
