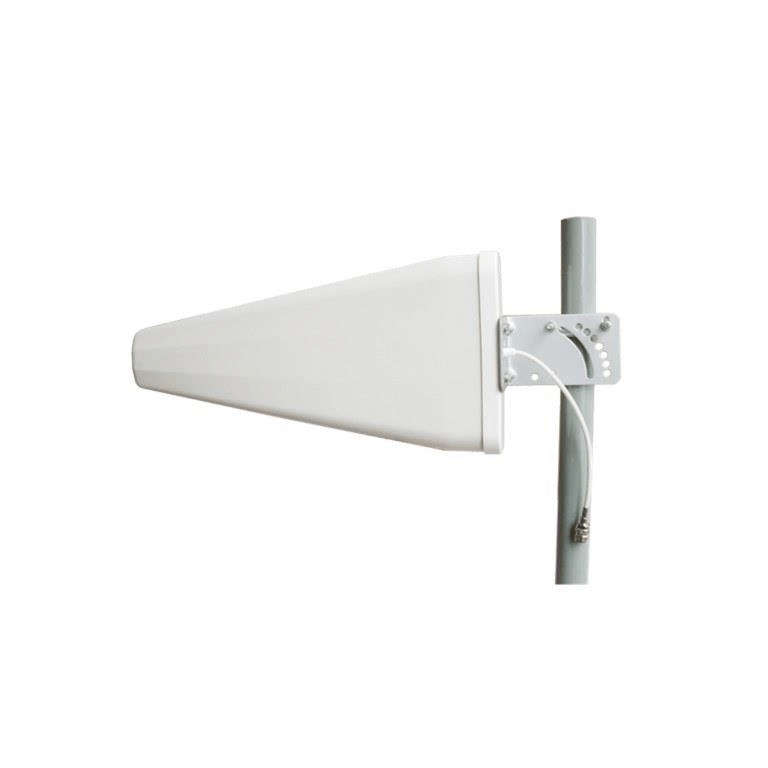

Acconet 11dBi SISO LTE External Yagi Antenna with N-female Connector KB-0727-LTEYAGI-11
The Acconet 11dBi SISO LTE/3G/GSM External Yagi Antenna with N-female Connector (KB-0727-LTEYAGI-11) is a powerful, high-gain directional antenna designed for use with LTE/3G/GSM networks. The antenna operates on the 698-960MHz and 1710-2700MHz frequency bands, making it compatible with a wide range of LTE/3G/GSM networks. With a gain of 11dBi, this antenna can significantly improve the signal strength and quality of your LTE/3G/GSM connection, providing better download and upload speeds, reduced latency, and improved overall performance.
The antenna is constructed of high-quality materials, with a rugged aluminum alloy construction that is both lightweight and durable. It features a directional design that allows for precise targeting of the LTE/3G/GSM signal, with a narrow beam width of just 50 degrees. The antenna also comes equipped with an N-female connector, making it easy to connect to a range of LTE/3G/GSM devices and modems.
Designed for outdoor use, the Acconet 11dBi SISO LTE/3G/GSM External Yagi Antenna with N-female Connector is weather-resistant and comes with a mounting kit for easy installation on a mast or other suitable support structure. It is an excellent choice for improving the LTE/3G/GSM signal strength and quality of your outdoor LTE/3G/GSM network, whether for commercial or residential use.
Technical Specification
Frequency range: 698 - 960 MHz / 1710 - 2700 MHz
Gain: 11 dBi
Horizontal beamwidth: 50 - 65 degress
Vertical beamwidth: 40 - 50 degrees
F/B ratio: > 15 dBi
V.S.W.R:
-
< 2.0/ 698 - 806 MHz
-
< 1.5/ 806 - 960 MHz
-
< 1.5/ 1710 - 2700 MHz
Normal impedance: 50 ohm
Polarization: Horizontal
Max power: 50W
Connector: N Female
Dimension: 400 x 260 x 65 mm
Lightning protection: DC Grounded
Rated Wind Velocity: 60 m/s
