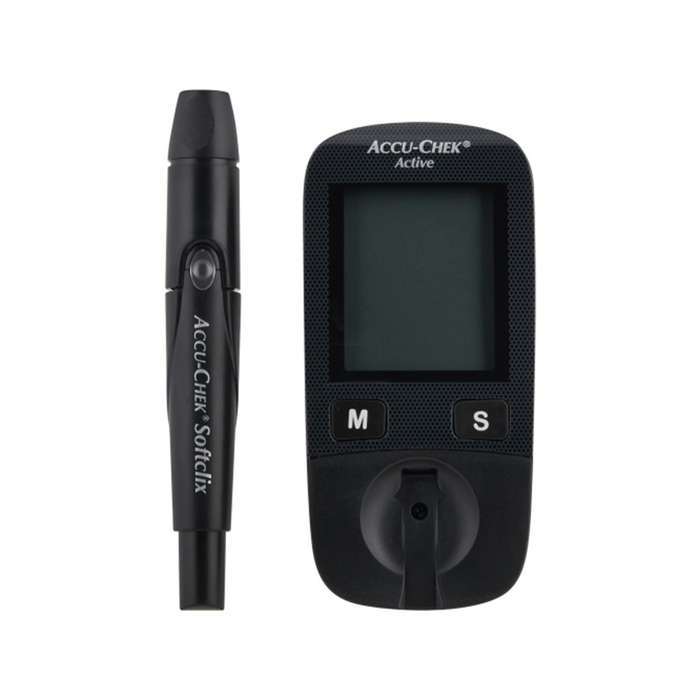

Accu-Chek Active Blood Glucose Monitoring System

Overview & Key Features

Ease of Use

• Operates with just two buttons, making it intuitive and user-friendly

• No coding required for test strips (depending on region), simplifying the testing process

Smart & Safe Functionality

• Displays alerts for expired test strips and underdosing, with a handy re-dose option within 10 seconds

• Includes pre-meal and post-meal reminders, and can flag meal markers for better tracking

Data Tracking & Reporting

• Stores up to 500 test results, each tagged with date and time

• Generates averages for 7, 14, 30, and 90-day periods to help monitor trends

Compact & Portable Design

• Dimensions: 97.8 × 46.8 × 19.1 mm—small and pocket-friendly

• Weighs approximately 46 g without the battery and 50 g with battery

• Features a 10% larger display than previous versions for easier reading

Quick Results

• Delivers results in approximately 5 seconds when using the strip inside the meter; about 8 seconds if testing outside the meter

Technical & Performance Specifications

• Measuring range: 10—600 mg/dL (0.6—33.3 mmol/L)

• Sample volume needed: 1—2 µL

• Operating temperature: 8—42 °C (46.4—107.6 °F)

• Storage: Without battery, can withstand —25 to +70 °C; with battery, —20 to +50 °C

• Humidity tolerance during testing: up to 93%

• Altitude capability: functions up to 4,000 m above sea level

• Battery: Powered by one CR2032 coin cell; provides around 1,000 tests or one year of use

• Auto power-off: Activates after 30 or 90 seconds based on status

• Interface: Micro-USB for data transfer (requires Accu-Chek Smart Pix software)

• Meets DIN EN ISO 15197:2003/2013 accuracy standards

Accuracy & Validation

• Rated with three-star accuracy by Medaval and validated through multiple clinical studies following ISO/EN standards
