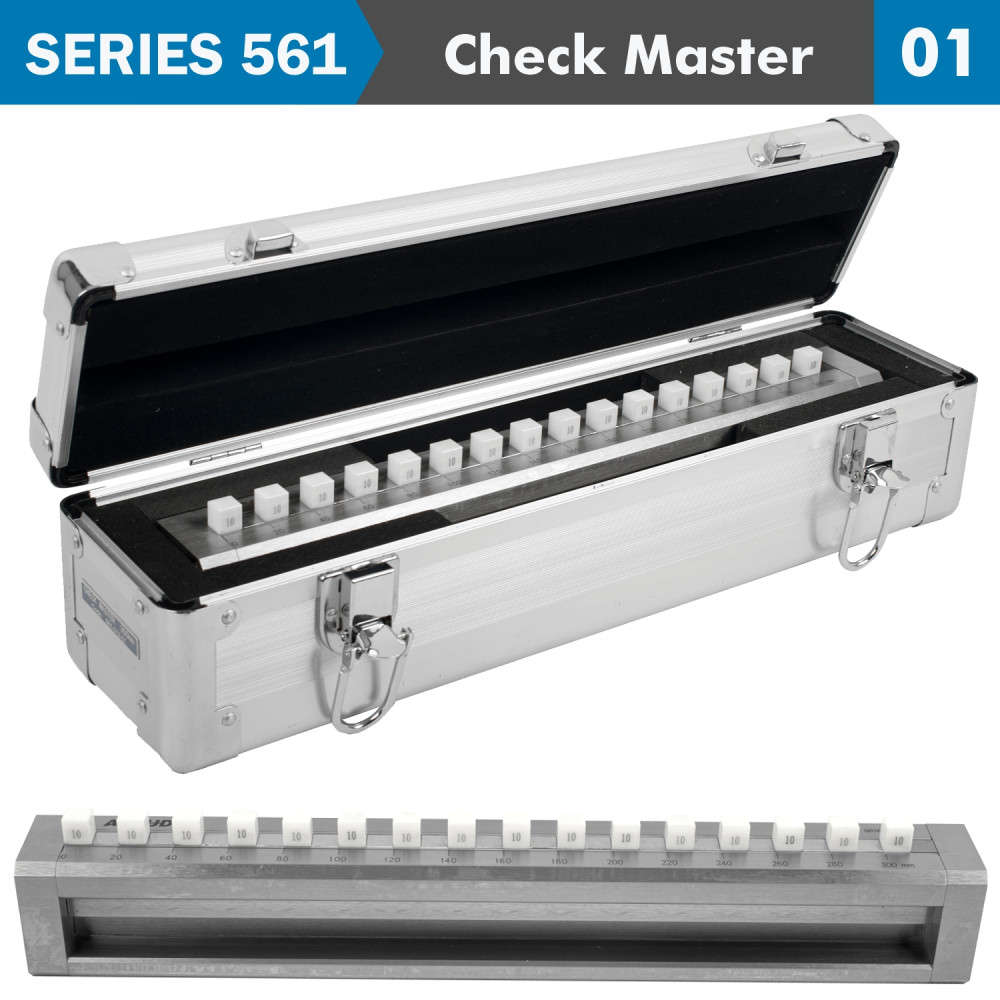

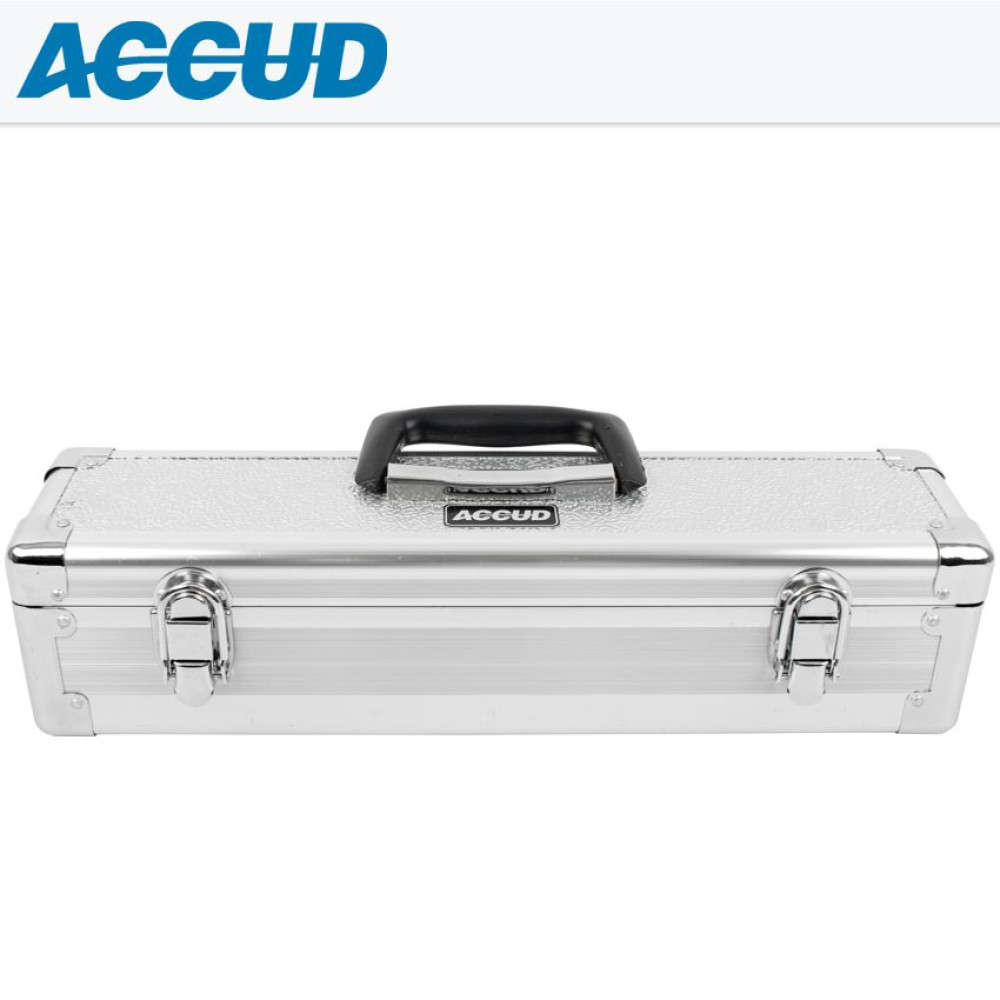

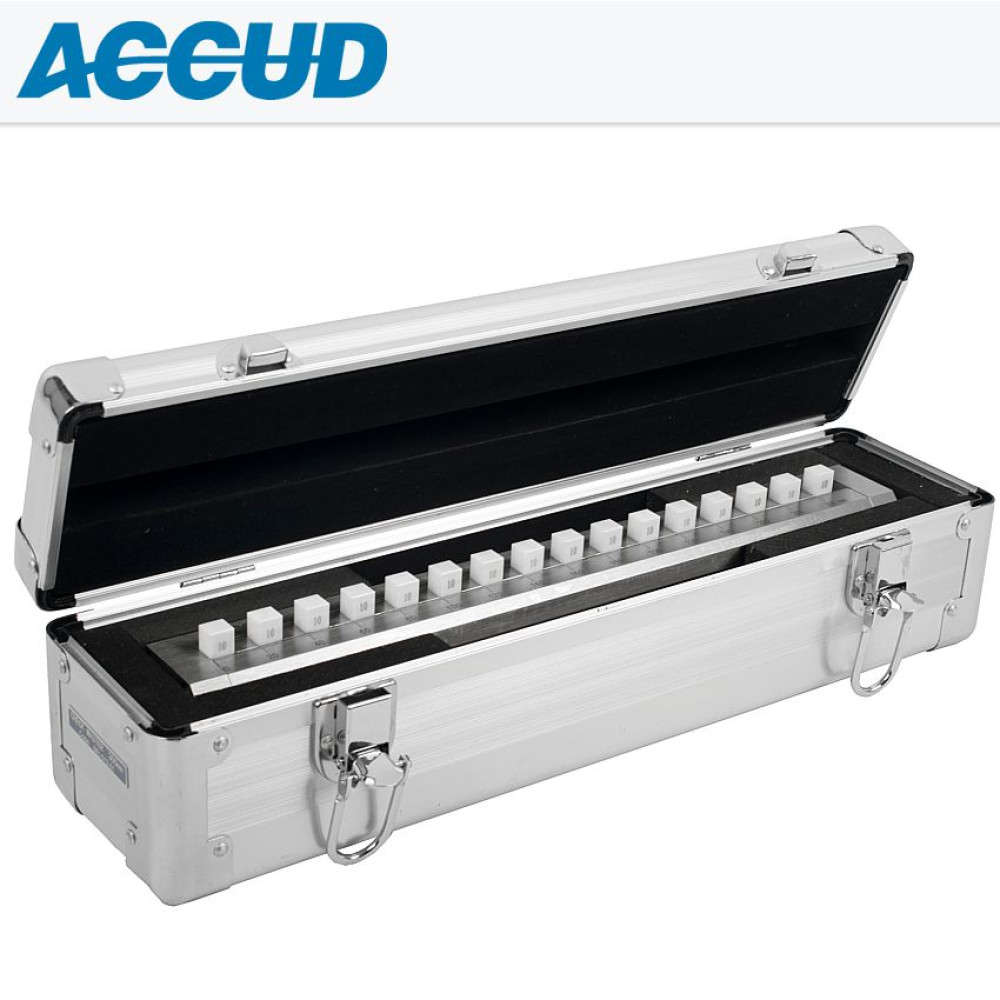

ACCUD - CHECK MASTER 300MM 0.0025MM ACC. AC561-012-01

Applications of a Check Master:

1. Calipers:
   • Check masters allow calipers to be calibrated by comparing the displayed measurements against the known step heights or blocks of the check master.
2. Height Gauges:
   • Height gauges are checked by placing the gauge's measuring probe on the different reference surfaces of the check master, ensuring that the gauge is accurate throughout its measuring range.
3. Micrometers:
   • Check masters can be used to calibrate micrometers, ensuring that the micrometer reads correctly at specific measurement points.
4. Dial Indicators:
   • A check master can also be used to verify the accuracy of dial indicators by comparing their readings against the reference surfaces or dimensions provided by the check master.
5. Precision Measurement in Industry:
   • Check masters are critical in industries like aerospace, automotive, manufacturing, and precision engineering, where maintaining tight tolerances and ensuring accurate measurements are essential.

6. Key Features of a Check Master:

   1. Precision Reference Standards:
      • The check master includes high-precision reference blocks or surfaces that serve as a known standard against which measuring tools can be checked.
      • The reference values are certified and traceable to international measurement standards (such as ISO), ensuring the utmost accuracy.
   2. Material and Durability:
      • Made from durable, high-quality materials like hardened steel or carbide, the check master ensures long-term stability and wear resistance.
      • Some models use ceramic or chromium carbide blocks for enhanced resistance to wear and corrosion, particularly in harsh environments.
   3. Versatility:
      • Check masters are designed to be used with a wide variety of measuring tools, including:
        • Calipers (digital, dial, and vernier)
        • Height gauges
        • Micrometers
        • Dial indicators
        • Bore gauges
      • The tool typically comes with multiple reference points or steps at fixed intervals, allowing the user to check the accuracy of different ranges of the measuring instrument.
   4. Accuracy Verification:
      • The check master provides certified reference dimensions for verifying the accuracy of both the upper and lower measuring limits of instruments.
      • Calibration can be done at multiple points along the range of the measuring tool, allowing users to detect potential inaccuracies or deviations over the full measurement range.
   5. Calibration Process:
      • To verify the accuracy of a measuring tool, the instrument is compared directly against the certified dimensions of the check master.
      • For example, when calibrating a caliper, the caliper jaws can be opened to the exact reference lengths provided by the check master, and the reading on the caliper is checked against the actual known value.
   6. Built-in Steps and Heights:
      • Many check masters are designed with stepped surfaces or multiple stacked blocks of different heights. These provide several preset reference points, such as 5 mm,...
