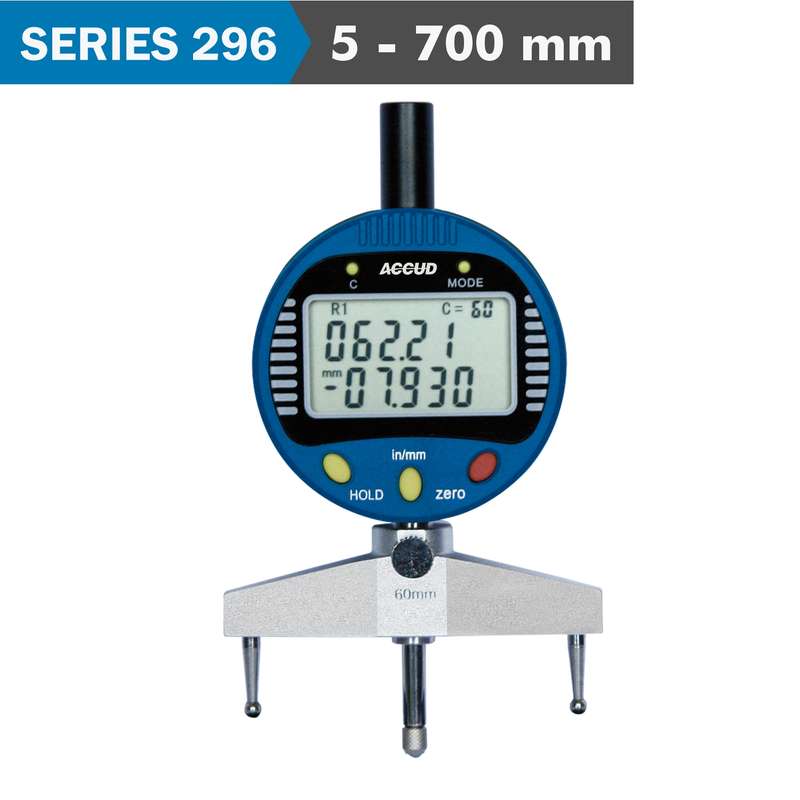

Accud Dig. Radius Gauge R5-700mm 0.01mm Rad.

A digital radius indicator is a precision measuring tool designed to accurately determine the radius of curved surfaces. It combines the efficiency of digital technology with the precision required for radius measurements.

• Accuracy: ±0.01R, R is the radius to be measured in mm
• Data output (cable code: 200-01 or 200-02)
• Supplied with 5 jaws for different sizes of arc

Typically, a digital radius indicator consists of two measuring arms that can be adjusted to fit the curve of the object being measured. The distance between the arms is then calculated and displayed digitally, providing a precise radius value.

Applications:

• Measuring the radius of curved components in manufacturing.
• Inspecting the curvature of automotive parts.
• Verifying the shape of molds and dies.
