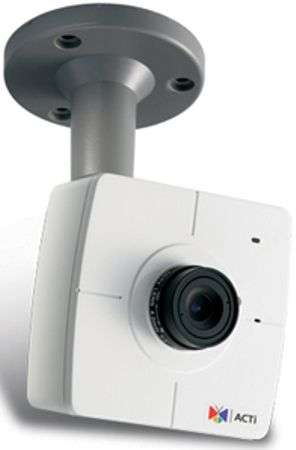

ACTi TCM-4301 H.264 Megapixel IP Cube Camera, 1/3” Micron Progressive Scan CMOS, Bundled with f4.2 mm / F1.8 Megapixel lens, 0.5 Lux at F 1.0, Effective Pixels 1280(H) x 1024(V), Viewing Angle 75° (Horizontal), Electronic shutter 1/5 ~ 1/15,000 sec., S/N Ratio Better than 44 dB, Interchangeable Lenses Available, Shutter Speed, White Balance, Exposure, Gain Controls supported, H.264 / MPEG-4 / MJPEG triple codec with two simultaneous streams, Up to SXGA resolution at 18 FPS, Two-way audio supported, Hardware motion detection, Video Compression H.264 / MPEG-4 SP / MJPEG simultaneous dual streams selectable, DC 12 V or Power over Ethernet (IEEE 802.3af) supported.
Have you been impressed with ACTi's cube cameras for their high resolution and competitive price? Are you still searching for a cost effective H.264 camera? With the ACTi TCM-4301, you can finally have a low cost H.264 solution.
The TCM-4301 is the newest 1.3 Megapixel addition to our attractive line of cube cameras. Its sleek design and low profile footprint make it a perfect fit for many surveillance applications. Using the advanced video compression standard H.264, the TCM-4301 allows for more efficient bandwidth and storage management. This model boasts a 1.3 Megapixel sensor in addition to an advanced dual stream/triple codec technology. With this advanced codec, you can enjoy up to 1.3 Megapixel at 18 fps using two of the three compression types, M-JPEG/MPEG-4/H.264 with each video stream having independent resolution, frame rate, and bit rate settings. Using H.264 at maximum frame rate and resolution settings, the TCM-4301 only uses 3Mbps of bandwidth. The TCM-4301 can also provide a low light surveillance solution down to 0.5 Lux at F1.0 with a bundled 4.2mm lens while the CS mount allows for an optional vari-focal lens (sold separately). Additionally, this unit supports 802.11af PoE (power over ethernet) standard making it extremely easy to install and configure. With 2-way audio (built in mic), a bundled 4.2mm Megapixel lens and mounting bracket, the TCM-4301 has everything you need in a low cost package.
The H.264 revolution has begun, and the TCM-4301 is here to show you the way. Expand your IP surveillance business with this extraordinary camera. Gain the mind share of your customers by showing them a high quality feature rich camera at a competitively low cost.
Features |
- 1/3” Micron Progressive Scan CMOS
- Bundled with f4.2 mm / F1.8 Megapixel lens
- 0.5 Lux at F 1.0
- Interchangeable Lenses Available
- Shutter Speed, White Balance, Exposure, Gain Controls supported
- H.264 / MPEG-4 / MJPEG triple codec with two simultaneous streams
- Up to SXGA resolution at 18 FPS
- Two-way audio supported
- Hardware motion detection
- DC 12 V or Power over Ethernet (IEEE 802.3af) supported
|
