Active Buzzer 4V ~ 8V ***LOCAL STOCK***
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

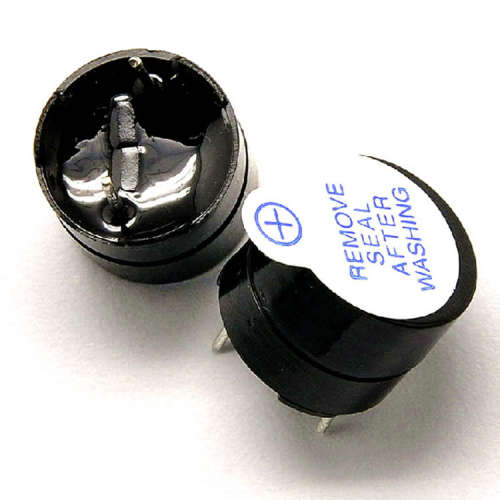

Active Buzzer 4V ~ 8V
Voltage : 4 ~8 V DC
Rated Voltage : 5V
Resonant Frequency : 2300Hz ±300
Rated Current (Max) : 30mA
Min. Sound Output at 10cm : 85dB
This is an active buzzer and has a fixed frequency.
Difference between an Active and Passive Buzzer
An active buzzer will generate a tone using an internal oscillator, so all that is needed is a DC voltage. A passive buzzer requires an AC signal to make a sound. It is like an electromagnetic speaker, where a changing input signal produces the sound, rather than producing a tone automatically.
To identify them, if you apply a DC voltage to them and it buzzes, it's an active buzzer.
As far as commands go if you want to control the pitch, you would need a passive buzzer. PWM on the Arduino can be used to control the pitch and the volume at the same time (which may or may not be what you want). If you wanted to change just volume or just pitch I suppose some external circuitry would be required to change the amplitude without changing the voltage, and vice versa.
