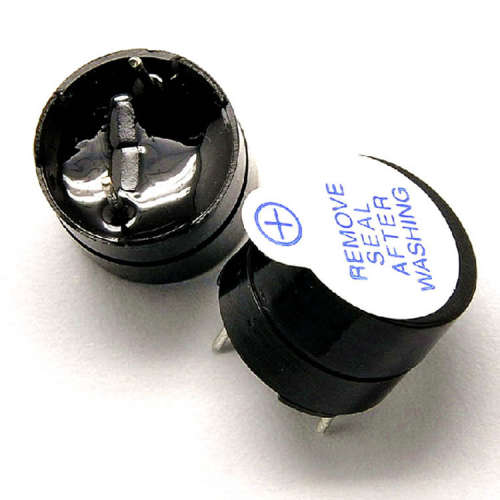

Active Buzzer Piezo 5V ***LOCAL STOCK***

Active Buzzer Piezo 5V

Voltage : 4 ~8 V DC

Rated Voltage : 5V

Resonant Frequency : 2300Hz ±300

Rated Current (Max) : 30mA

Min. Sound Output at 10cm : 85dB

This is an active buzzer and has a fixed frequency.

Difference between an Active and Passive Buzzer

An active buzzer will generate a tone using an internal oscillator, so all that is needed is a DC voltage. A passive buzzer requires an AC signal to make a sound. It is like an electromagnetic speaker, where a changing input signal produces the sound, rather than producing a tone automatically.

To identify them, if you apply a DC voltage to them and it buzzes, it's an active buzzer.

As far as commands go if you want to control the pitch, you would need a passive buzzer. PWM on the Arduino can be used to control the pitch and the volume at the same time (which may or may not be what you want). If you wanted to change just volume or just pitch I suppose some external circuitry would be required to change the amplitude without changing the voltage, and vice versa.

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
