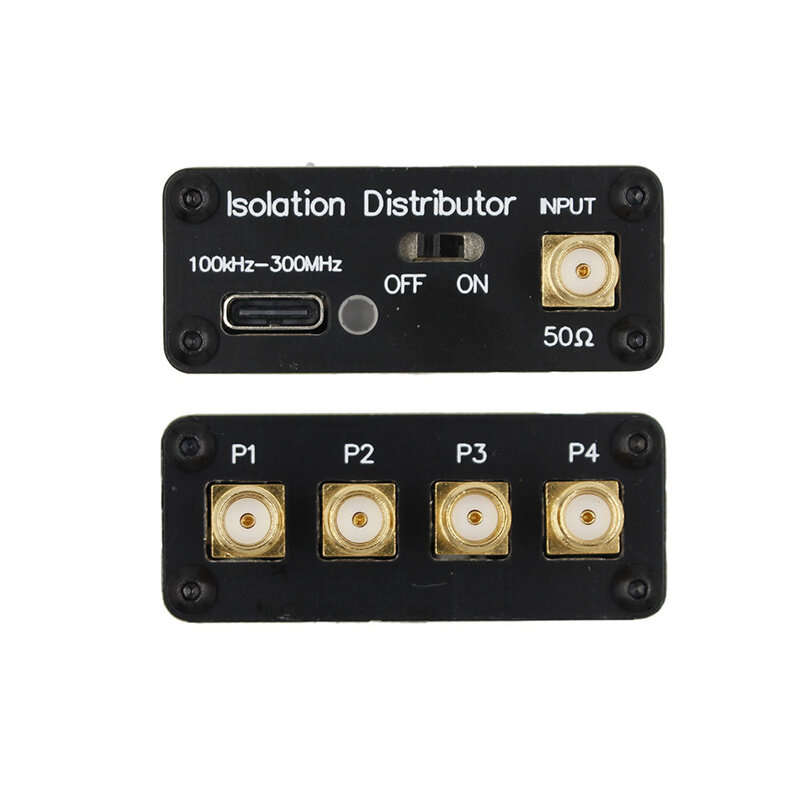

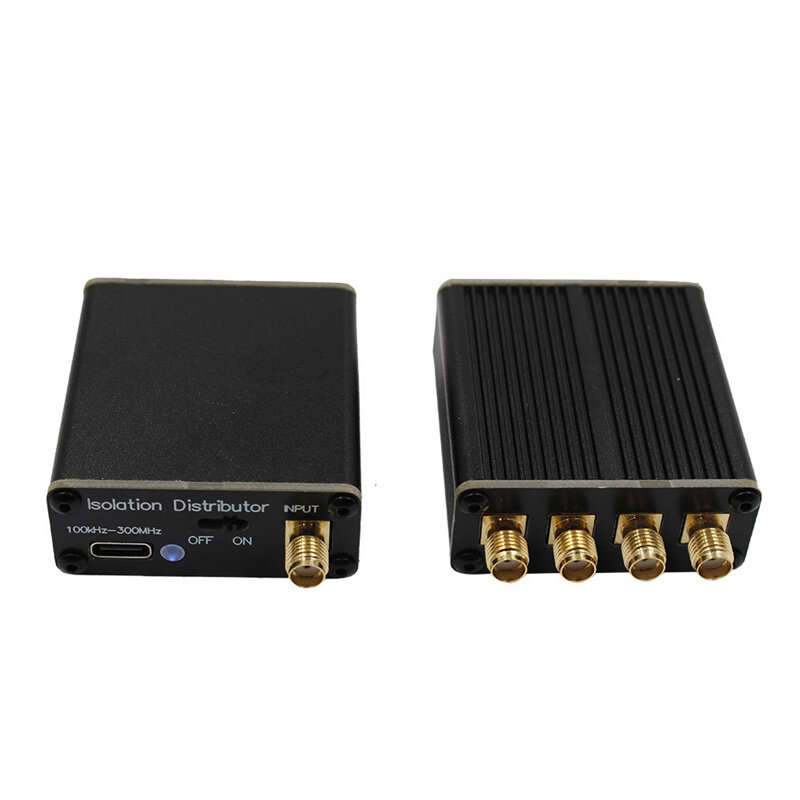

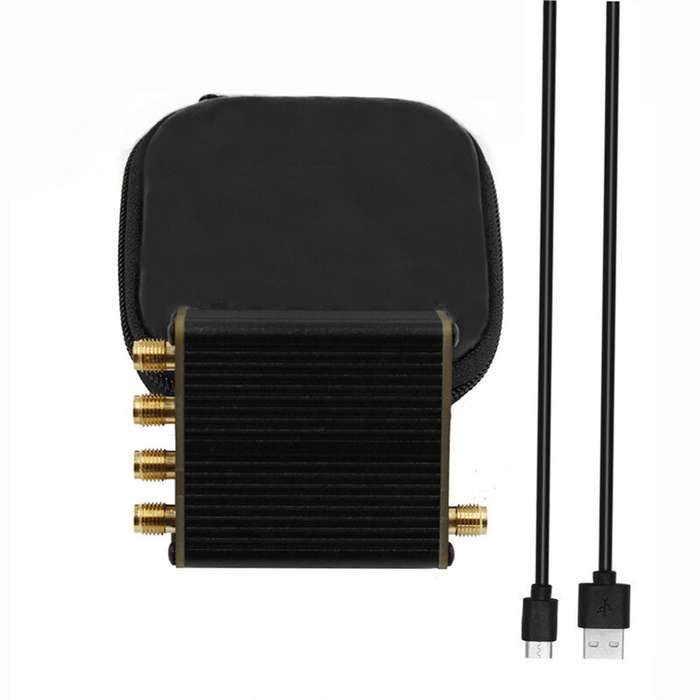

Active RF Isolation Distributor Suitable for RF Signal Radio Antenna SDR GPSDO Signal Source

Specification:

Product Name: Active RF Isolation Distributor
Operating Frequency Range: 100kHz to 150MHz
Insertion Loss: Less than 0.8dB
Output to Input Isolation: Greater than 80dB
Output Isolation: Greater than 60dB
Input Impedance: 50 ohms
Battery Capacity: 600mAh (Built-in)
Battery Life: More than 3 days of continuous operation
Dimensions: 8 x 8 x 3.5cm
Package Weight: 100 grams

Features:

Multi-Channel Distribution: The Active RF Isolation Distributor is designed to distribute RF signals into multiple channels, allowing for efficient signal distribution and isolation.

High Frequency Range: It operates within a wide frequency range from 100kHz to 150MHz, making it suitable for various RF signal applications.

Low Insertion Loss: With an insertion loss of less than 0.8d
