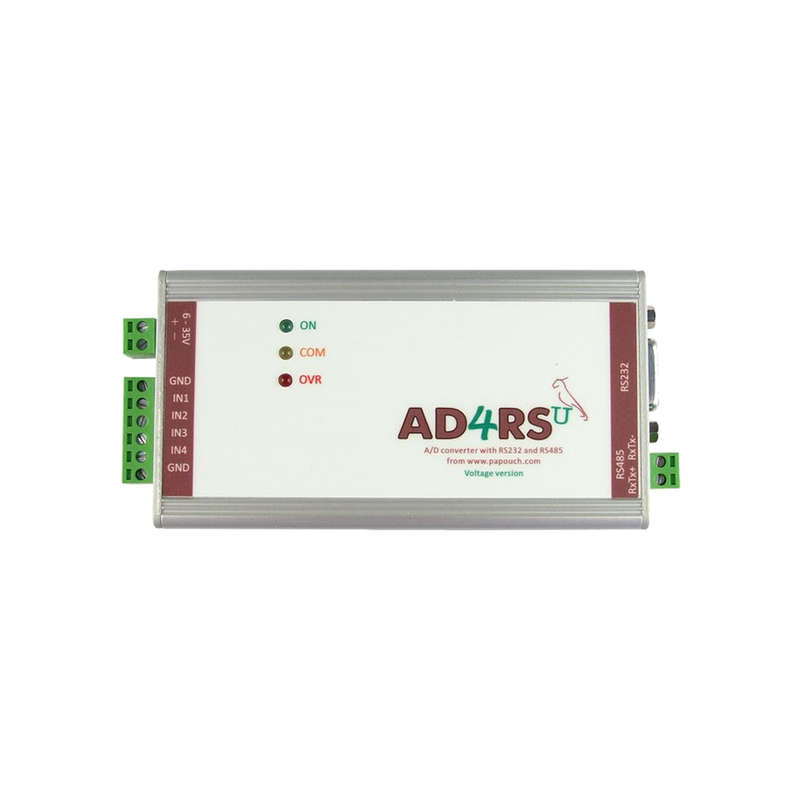

AD4RS: Measurement module with RS232 and RS485

20 available / new
R6,133.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3191591
Bob Shop ID
608765685

Default input range is 0-10V or 0(4)-20mA, but it ican be modidied to suit your application upon request. Please contact us to get a custom measuring range.

Introduction to measurement converters AD4 series.

Features of A/D converter with serial lines

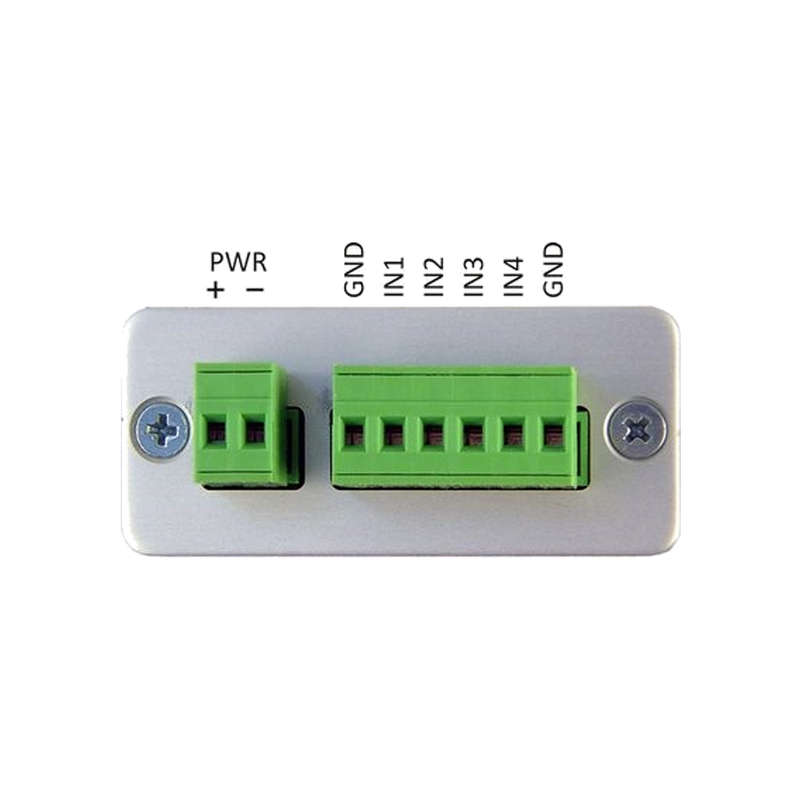

  • Four analogue inputs for voltage or current
  • Each channel can have different range (upon request)
  • Measuring range split into 10 000 pieces
  • Mesuring rate: twice in a second for each channel

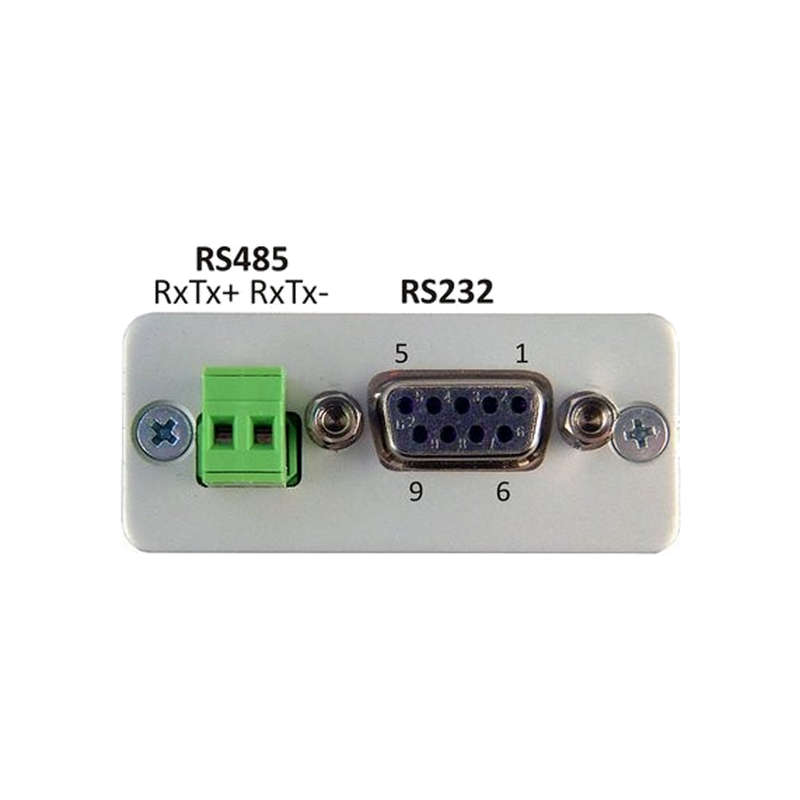

  • Communication via RS232 or RS485 line
  • Spinel and Modbus RTU communication protocols (MODBUS documentation on request).
  • Measuring software for watching and logging is supplied as a freeware
  • Wide power supply voltage range: 7 - 30 V DC
  • Measuring is based on a single multiplexed 16 bit sigma-delta A/D converter

AD4RS Messurement module posibilites

Usage of ADC

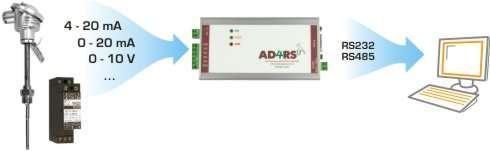

  • Digitalization of measured-out values from gauges with unified voltage or current ouput
  • Reading or sensors with unified signals
  • Reading values from flood sensors, pressure sensors, thermometers, height sensors etc.
