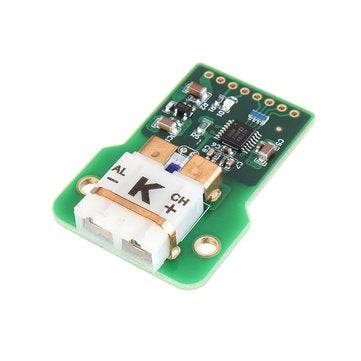

AD7793 High Precision Isolation K Type Thermocouple Temperature Sensor Measurement Data Acquisition

New 20 available
R789.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654091418


Features:

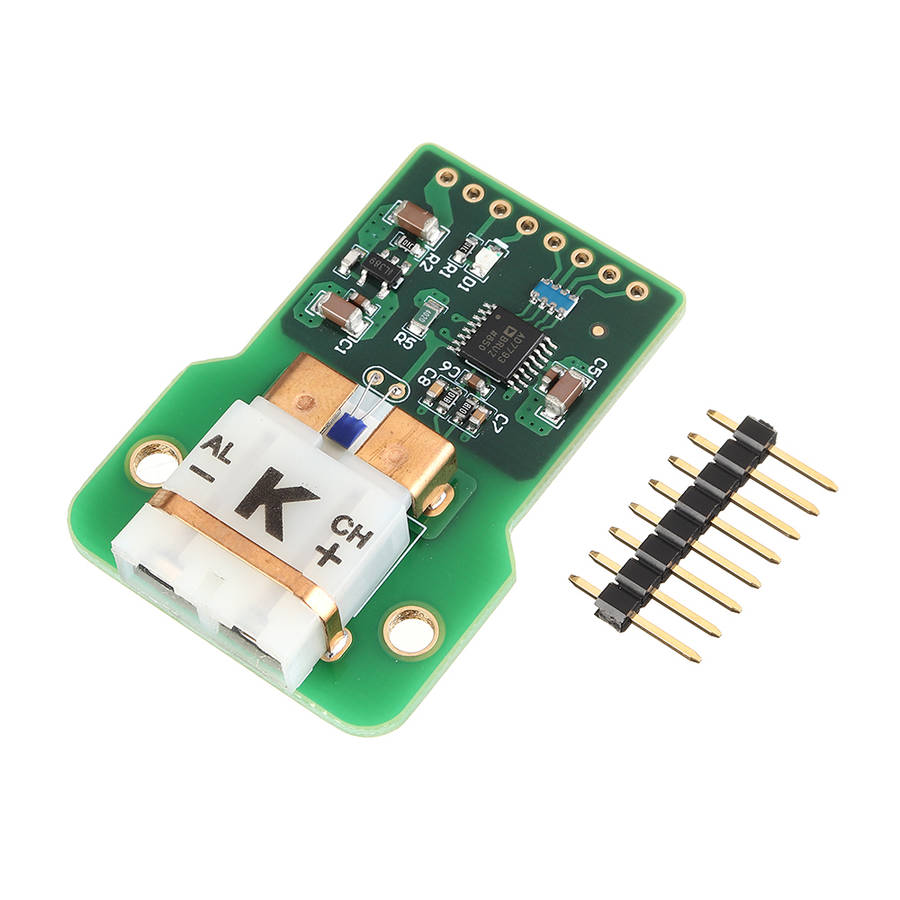

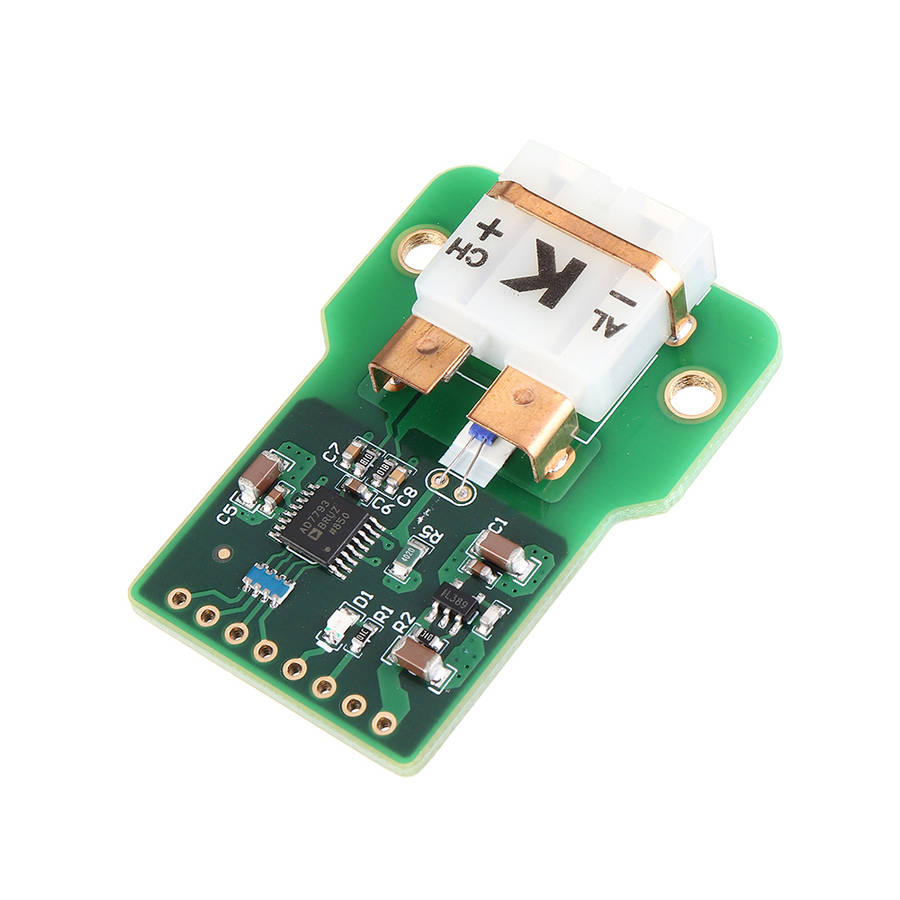

- A complete temperature measurement system based on AD7793 is recommended based on ADI CN0206_cn. - The PT100 is used as cold junction compensation, and the 4 layer PCB crossover is uniform temperature routing. - Support wide power supply voltage: 3-9VDC. - SPI interface supports SPI chrysanthemum chain multi-channel application. - The maximum thermal potential is 36.5625mV when the gain is 32 times, and the K thermocouple dial is 881 degrees Celsius. - The maximum thermal potential is 73.125mV when the gain is 16 times, covering the whole measuring range of K thermocouple. - The minimum isolation voltage is 2500VDC. - The signal isolation chip is ADUM1401. Package Included: 1 x AD7793 Temperature Measurement Data Acquisition Module
