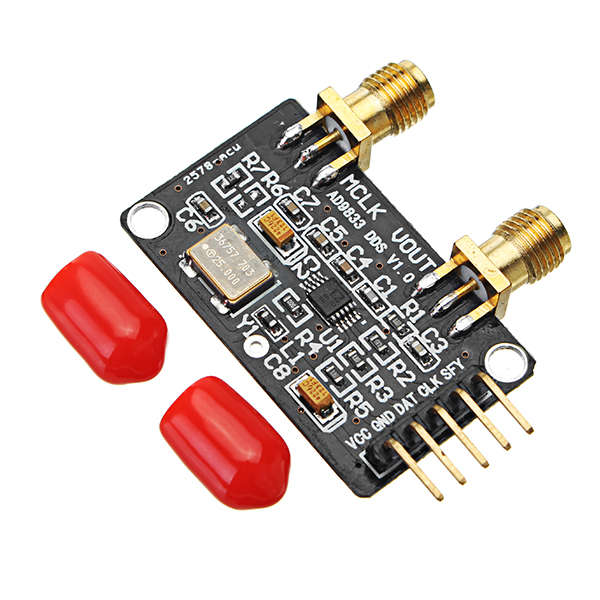

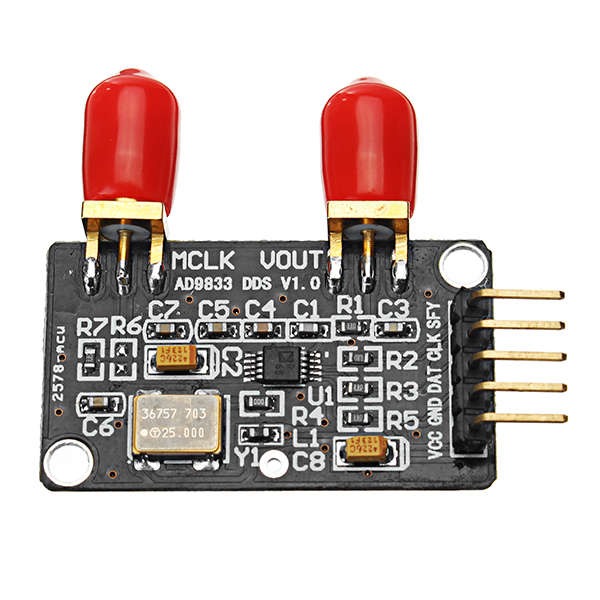

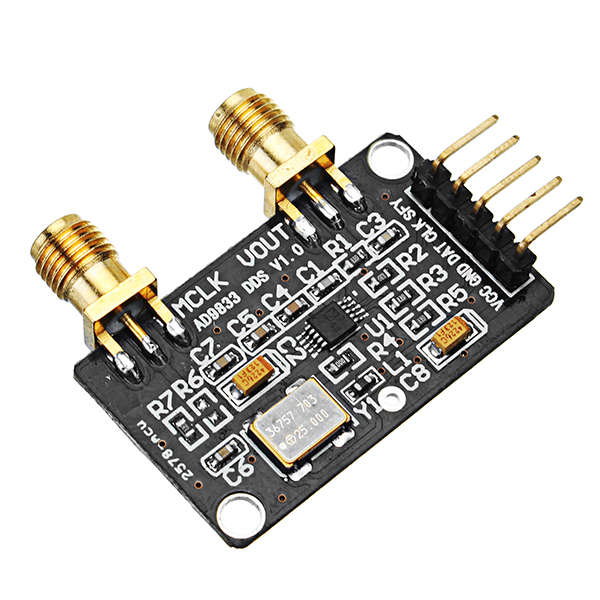

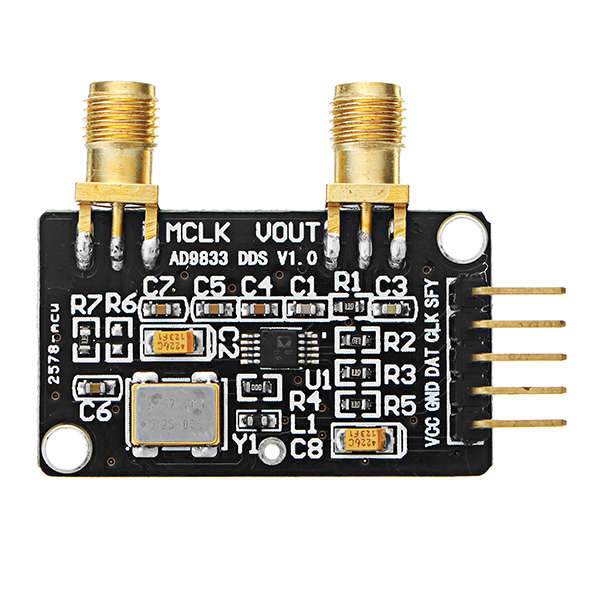

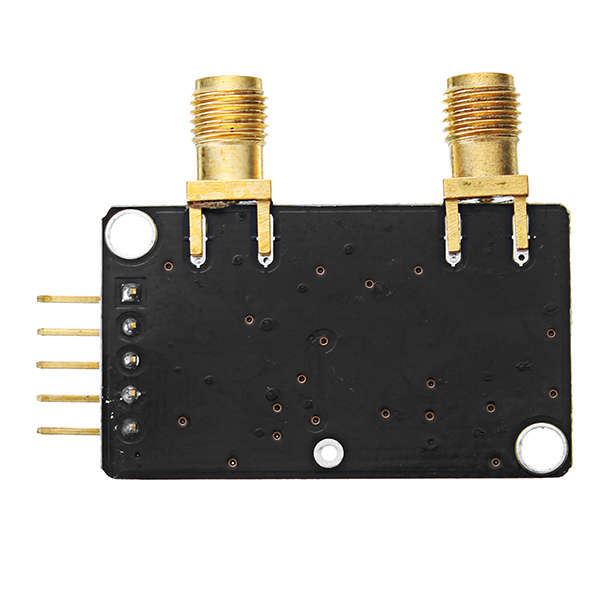

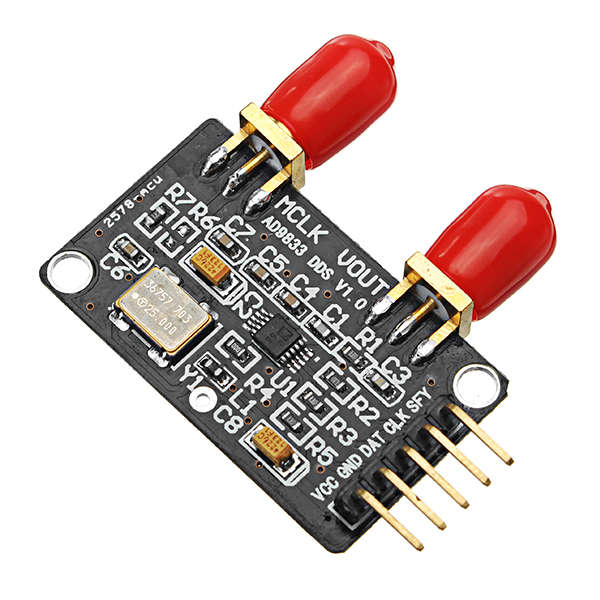

AD9833 Module DDS Digital Synthesizer Frequency Controllable Sine Square Triangle Wave Official Line

Module Features: 1, working voltage: 2.3V-5.5V. Typical 3.3V, 5V 2, the working temperature range: -40 ~ +105 a 3, the default onboard 25MHZ (precision of 25ppm) imported active crystal oscillator, stepper accuracy of 0.1HZ.
Access to external clock reference through the tee, can have a higher frequency resolution 4, reference to the official DEMO line with its wiring rules, the line is more stable and reliable. 5, can output sine wave triangular wave and square wave, frequency phase programmable sine wave and triangular wave amplitude 0.6VPP or so,
a slight decline in high frequency, sine and triangular wave output impedance of 200R; square wave slightly smaller than the supply voltage. 6, PCB size: 20mm X 35mm.
Application: Frequency stimulus / waveform generation Flow and air flow measurement Sensor Applications: Proximity, Motion and Defect Detection Line loss / attenuation Test and medical equipment Scan / Clock Generator Time Domain Reflectometry (TDR) Applications

Package included:

1 xAD9833 Module
